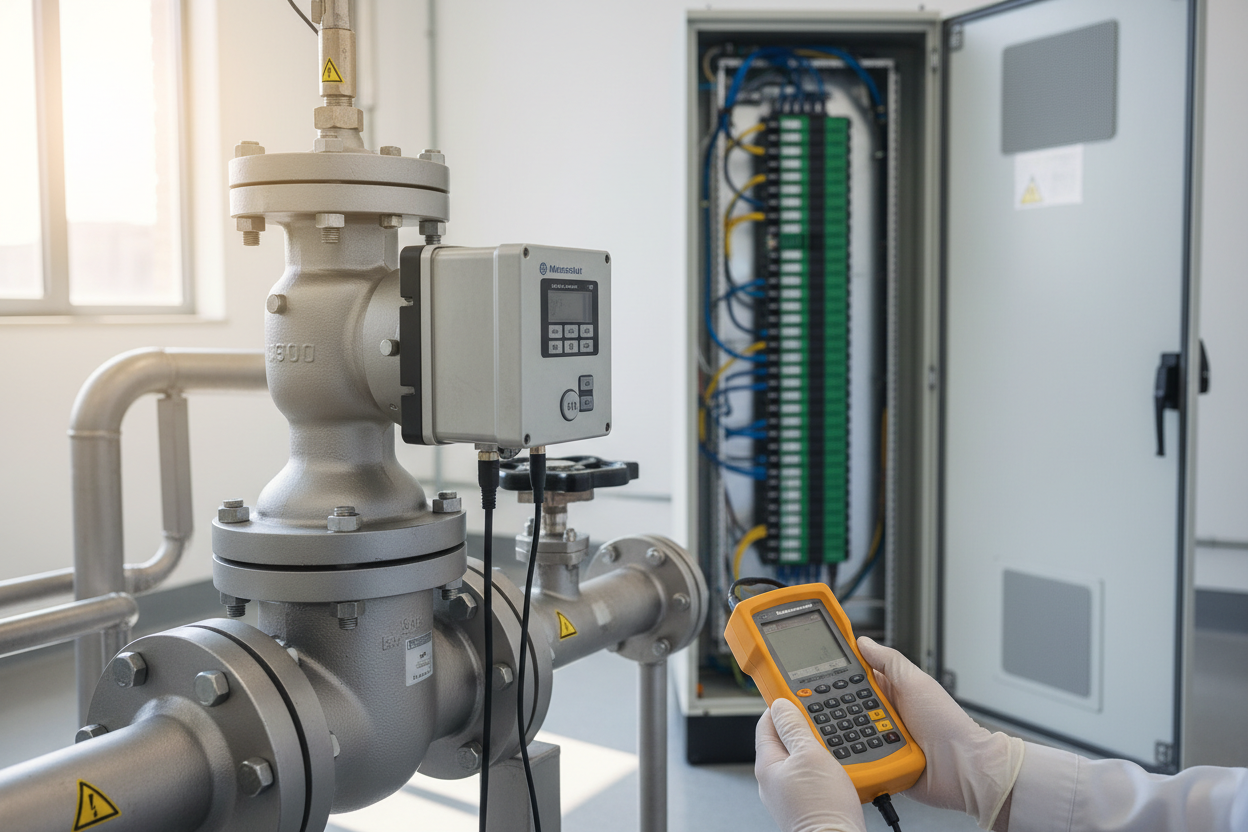

Smart Valve Positioner HART Calibration: GE Masoneilan 4700 and Bachmann M1

Auto-Calibration, Bachmann M1, Control Valve, GE Masoneilan 4700, HART Calibration, IEC 61511, Industrial Automation, Smart Valve Positioner, SVI II AP, Valve Hunting
April 20, 2026

Masoneilan 4700 Architecture and HART Commands

The GE Masoneilan 4700 SVI II AP is a single-acting electro-pneumatic smart positioner. It accepts 4 to 20 mA with HART at 1200 baud. Supply air is 1.4 to 7.0 bar. An internal I/P converter drives a spool valve. Position feedback uses a Hall-effect sensor with 12-bit resolution.

The 4700 responds to HART Universal Commands 0 through 22 plus Device-Specific Commands 128 to 253. Key commands: Command 0 (Read Unique Identifier), Command 1 (Read Primary Variable — valve position), Command 18 (Force output to specific value), Command 145 (Execute Auto-Calibration), and Command 150 (Read/Write Gain Parameters).

Bachmann M1 integrates through AIO288 analog I/O module. It provides 8 channels of 4 to 20 mA with HART pass-through. Enable HART_ACTIVE in M1 configuration tool with 500 ms poll interval. This allows M1 to read device variables directly without additional wiring.

Auto-Calibration Procedure: Six Steps

Perform auto-calibration when positioner is new, replaced, or after actuator maintenance. Isolate process valve and confirm supply air at operating pressure.

Step 1: Connect HART communicator to positioner terminals. Verify loop resistance is 250 to 600 ohms. The 4700 requires minimum 250 ohms to decode HART correctly.
Step 2: Read Command 0 to confirm device address and firmware version. Firmware 3.1+ is required for full Command 145 auto-calibration.
Step 3: Send Command 145 with parameter byte 01 to start auto-calibration. Positioner drives valve closed, detects stop, records zero, then drives open and records span. Sequence takes 45 to 90 seconds.
Step 4: After calibration, read Command 1 to verify PV reads 0.0% at 4.00 mA and 100.0% at 20.00 mA. Tolerance is ±0.5%. If deviation exceeds this, use Command 147 (Manual Zero) and Command 148 (Manual Span).
Step 5: Inject step input from 4 mA to 20 mA using loop calibrator. Measure response time to 90% travel. For 50 mm globe valve with 250 cm³ actuator at 4 bar, response must be below 8 seconds. Above 15 seconds indicates restricted air supply or spool valve contamination.
Step 6: Record calibration data: serial number, firmware, zero encoder count, span encoder count, date, and technician. Update Bachmann M1 AIO288 HART mapping to point PV1 to Command 1 for continuous monitoring.

Valve Hunting: Diagnosis and Gain Correction

Hunting — continuous oscillation around setpoint — is the most common complaint. The 4700 has three gain parameters via Command 150: GAIN_P (proportional), TIGHT_SHUTOFF_DEADBAND, and STABILITY (damping).

First, measure hunting frequency using Bachmann M1 trend at 100 ms intervals. Hunting above 1 Hz indicates excessive proportional gain. Hunting below 0.2 Hz with amplitude over 5% indicates stiction.

For high-frequency hunting, reduce GAIN_P by 20% increments using Command 150 byte 1. Wait 30 seconds and observe trend. Stop when oscillation drops below 0.5%. Typical adjusted GAIN_P for 50 mm globe valve is 0.8 to 1.2 (factory default 2.0). For stiction-driven hunting, increase TIGHT_SHUTOFF_DEADBAND for setpoints below 5% and above 95%. Command 150 byte 3 accepts 0.5% to 5.0%. Increase STABILITY parameter (byte 5) from default 3 to 5 for damping.

Six Common Fault Patterns

Fault 1 — Valve stays at 0% despite 20 mA input: Loss of instrument air. Diagnosis: Check Command 2 PV2 (supply pressure). If below 1.0 bar, repair air supply. If normal, check I/P converter blockage.
Fault 2 — PV reads 50% regardless of input: Hall-effect sensor failure. Diagnosis: Command 145 fails with error 04. Replace feedback sensor using SVI II tool kit.
Fault 3 — Valve tracks with 8% offset: Auto-calibration with misaligned hard stop. Diagnosis: Read zero and span encoder counts via Command 151. Compare to factory values. Re-run Command 145 after verifying stem freedom.
Fault 4 — HART communication intermittent: Loop resistance out of spec. Diagnosis: Measure at M1 AIO288 terminal. Required: 250 to 600 ohms. Below 250 — add series resistor. Above 600 — check connections.
Fault 5 — Response time exceeds 15 seconds: Spool valve contamination or undersized I/P orifice. Diagnosis: Inspect I/P block for particulates. Clean or replace primary orifice (0.4 mm diameter, part 1028316).
Fault 6 — Positioner fails IEC 61511 PST: Travel stop drift — 2 to 4% per year in high-cycle applications. Diagnosis: Compare current span encoder count to commissioning record. If drift exceeds 2%, re-run Command 145. Schedule PST annually for SIL 2 ESD valves.

Conclusion and Action Advice

Smart valve positioner reliability depends on correct HART calibration and appropriate gain parameters. For GE Masoneilan 4700 with Bachmann M1 AIO288, start with Command 0 firmware verification, then execute Command 145 auto-calibration. Validate with Command 1 accuracy check at ±0.5% tolerance. Address hunting by adjusting GAIN_P, STABILITY, and TIGHT_SHUTOFF_DEADBAND via Command 150. Verify HART loop resistance is 250 to 600 ohms before troubleshooting communication.

For SIL 2 ESD applications, schedule annual PST and document encoder values. Correlate diagnostics to M1 HART secondary variables for continuous monitoring. These practices extend service life beyond 8 years and reduce emergency repairs by over 60%.
