TK-3E/TK3-2E Vibration Calibrator

The Bentley Nevada TK-3 Proximity System Test Kit and the TK3-2 Calibration Instrument are both used to simulate shaft vibration and position for calibrating Bently Nevada monitors. They verify the operating condition of the monitor readouts and the proximity transducer system for accurate readings and inputs.

Both tools use a spindle micrometer assembly to check the transducer system and position monitor calibration. They feature a universal probe mount accommodating various probe diameters.

Vibration monitors are calibrated using a motor-driven wobble plate. A swing-arm assembly holds the proximity probe in place, and users adjust the probe to find the desired mechanical vibration level. A dial micrometer measures vibration without the need for an oscilloscope.

The mechanical vibration signal ranges from 50 to 254 μm (2 to 10 mils) peak-to-peak. Comparing monitor readings to known mechanical vibration signals ensures accurate calibration.

4 products

Sort
Sort

4 products

Sale

80466-02 TK81 | GE Bently Nevada Tunable Filter/Vibration Meter 80466-02 TK81 | GE Bently Nevada Tunable Filter/Vibration Meter

Bently Nevada

Tunable Filter/Vibration Meter

Sale

GE Bently Nevada TK-3e | Proximity System TK-3 GE Bently Nevada TK-3e | Proximity System TK-3

Bently Nevada

Proximity System

Sale

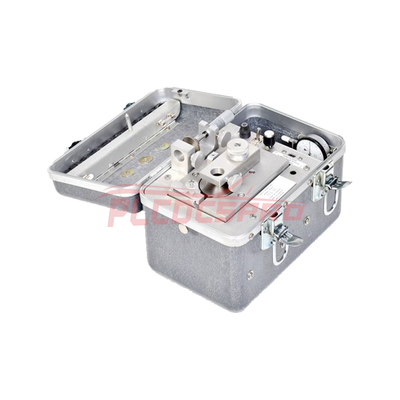

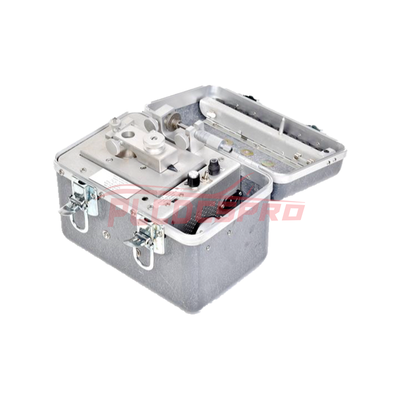

GE Bently Nevada TK3-2E Calibration Instrument GE Bently Nevada TK3-2E Calibration Instrument

Bently Nevada

Calibration Instrument

Sale

TK15 80917-01 | GE Bently Nevada Keyphasor Conditioner and Power Supply TK15 80917-01 | GE Bently Nevada Keyphasor Conditioner and Power Supply

Bently Nevada

Keyphasor Conditioner

Local Pickup Available
