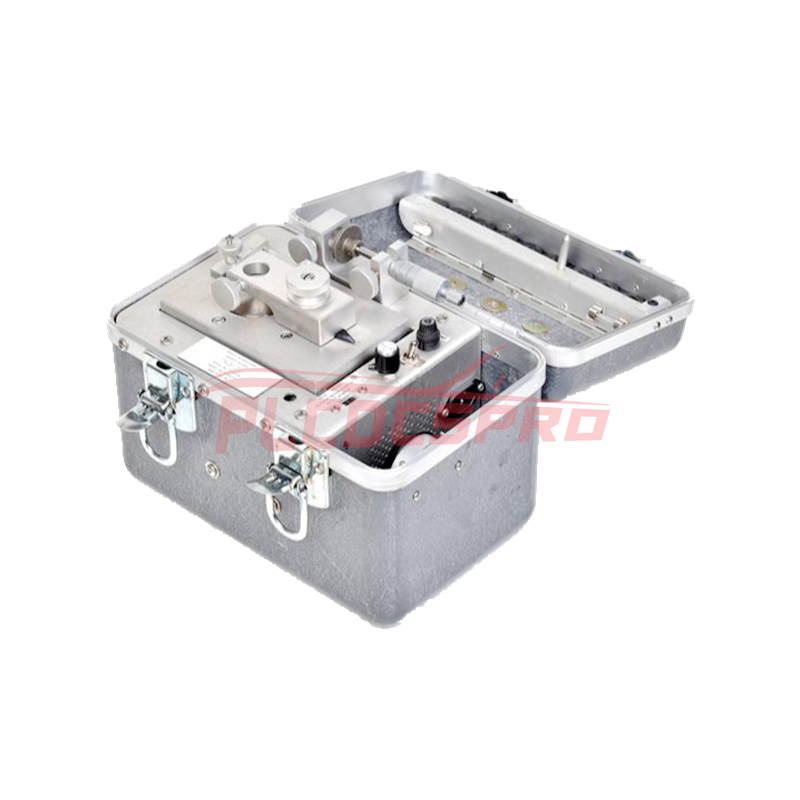

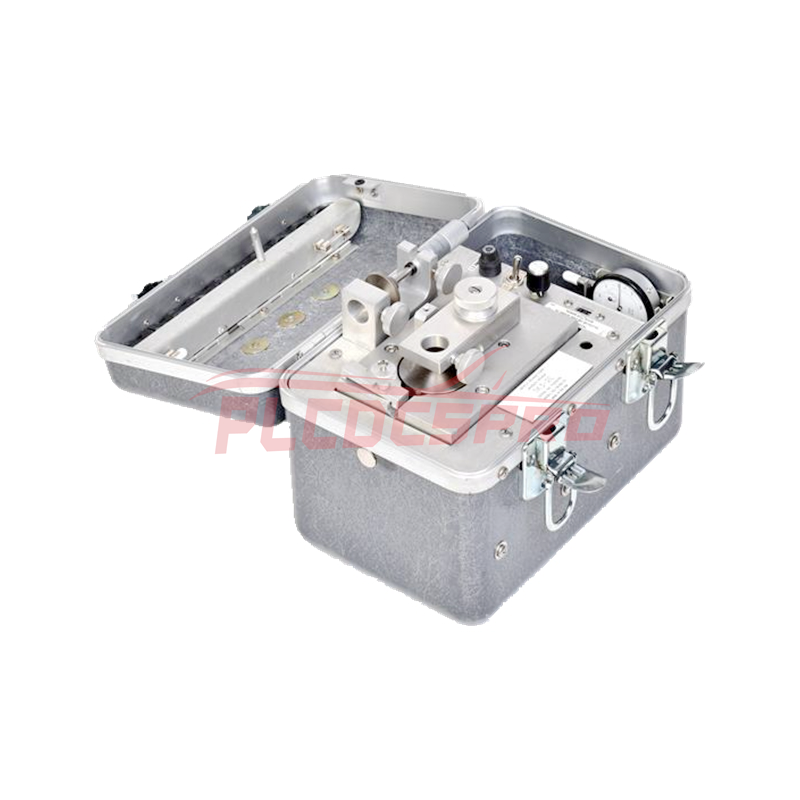

Product Name: TK3-2E Calibration Instrument Manufacturer: Bently Nevada Function: Calibration Instrument for Shaft Vibration and Position Monitoring
The TK3-2E is a calibration tool designed to simulate shaft vibration and position for verifying the accuracy and operational condition of Bently Nevada monitoring systems. It ensures accurate readings and reliable operation of proximity transducer systems and vibration monitors.
Features
Proximity Transducer Calibration: Includes a spindle micrometer and probe mounting adapter to simulate precise target movement and verify sensor accuracy.
Vibration Monitor Calibration: Utilizes a motor-driven wobble plate for simulating mechanical vibrations within a controlled range.
Measurement Range:
Vibration amplitude: 50 μm to 254 μm (2 to 10 mils) peak-to-peak
Spindle micrometer range: 0-25.4 mm (0-1000 mils)
Material Specifications:
Target button and wobble plate made of AISI 4140 Alloy Steel.
Specifications
Inputs
Power (Electric):
95-125 VAC, 50/60 Hz, 1A minimum
190-250 VAC, 50/60 Hz, 1A minimum
Air (Optional Drive):
Max pressure: 90 psi (6.2 bar)
Wobulator Range
Amplitude: 50 μm to 254 μm (2 to 10 mils) peak-to-peak
Speed:
Electric: 0-10,000 cpm ± 2,500 cpm
Air: 0-5,000 cpm ± 1,000 cpm
Physical Dimensions
Height: 215 mm (8.5 in)
Width: 184 mm (7.25 in)
Depth: 285 mm (11.25 in)
Weight: 5.9 kg (13 lb)
Ordering Information
Models
Electric Driven TK3-2E:
Part Number: 14700-AXX
Scale Units:
01: English
02: Metric
Air Driven TK3-2:
Part Number: 14680-AXX
Scale Units:
01: English
02: Metric
Accessories
REBAM® Verification Kit (107360-01):
Includes a high-resolution digital micrometer, adaptive spacer, and an AISI E52100 steel target button for simulating rolling element bearings.
