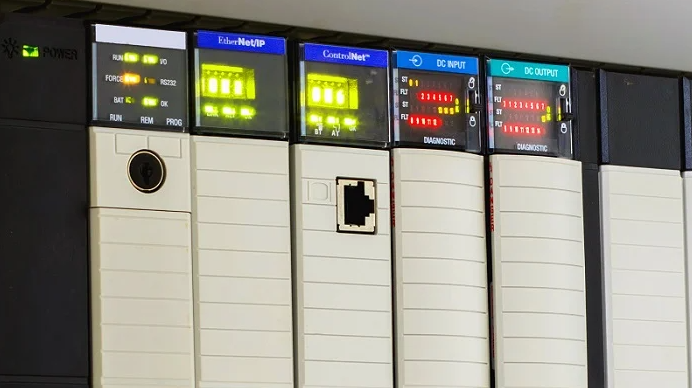

Most technicians easily manage standard I/O values for sensors and actuators across a factory automation network. However, high-level industrial automation requires a deeper look into the controller's internal engine. Beyond simple inputs and outputs, every PLC generates internal "system values" that provide critical data about the processor's health and environment. Accessing these hidden variables allows developers to create more resilient and self-aware control systems.

Essential System Data for Automation Engineers

System values act as the "under-the-hood" telemetry for your controller. While a standard user might only care about digital inputs, a power user monitors the First Scan Bit to initialize variables safely. Furthermore, Clock Time integers allow for precise event logging without wasting CPU resources on manual timers. Other vital data points include Execution Mode (Run vs. Program) and real-time Scan Times, which help prevent watchdog timeouts in complex DCS environments.

Monitoring Processor Health and Firmware

Advanced diagnostics require access to CPU Information and error registers. Instead of relying solely on physical LEDs, you can pull the model number and firmware version directly into an HMI. This practice is essential for large-scale factory automation where multiple hardware revisions might exist across the plant. Additionally, tracking specific error codes enables remote dashboards to pinpoint faults before a technician even arrives at the cabinet.

Accessing Internal Tags via Direct Addressing

The method for retrieving system data varies significantly between manufacturers. Some platforms include these variables directly in the standard tag listing for convenience. However, to keep the interface clean, others hide these tags from the main menu. In these cases, you must manually type the specific system address into your logic commands. This "direct access" method is common in legacy hardware and specific low-cost controllers.

Using System Instructions for Dynamic Retrieval

Modern control systems often use dedicated instructions to "fetch" data from the CPU's memory. Rather than having a static tag, the user executes a command to populate a custom variable. This approach is highly efficient for industrial automation because it only consumes processing power when the data is actually needed. It also allows programmers to map complex CPU status integers into readable formats for end-users.

Rockwell Automation: SLC 500 and Studio 5000

In the Rockwell ecosystem, the approach depends on the hardware generation. Legacy SLC 500 processors store all diagnostic data in the S: File (Status File). Conversely, the Logix5000 platform uses the GSV (Get System Value) and SSV (Set System Value) instructions. To monitor controller health, you must target the ControllerDevice class. In my experience, using the S:FS (First Scan) bit is the most reliable way to reset sequences after a power cycle.

Siemens S7-1200 and S7-1500 Diagnostics

Siemens utilizes a functional approach through specific Function Blocks (FBs). For instance, the LED instruction returns the physical state of the CPU’s display lights, while Get_IM_Data retrieves identification information. Moreover, GetStationInfo provides critical networking data like IP addresses. This modularity ensures that the PLC remains fast, as you only call the diagnostic blocks relevant to your current routine.

AutomationDirect Productivity Series

For those prioritizing ease of use, the AutomationDirect Productivity line treats system values as standard tags. They are pre-defined and ready to use immediately upon project creation. This "open-book" approach reduces the learning curve for maintenance teams. It allows for rapid deployment of heartbeat monitors and system-ready flags without digging through technical manuals.

Author’s Insight: Why System Values Matter

In the field, I have seen many engineers struggle with "phantom" bugs that only occur during power-ups. By utilizing the First Scan Bit, you can force your logic into a known "safe state" every time. Furthermore, monitoring Scan Time is a professional necessity; if your code grows too bloated, the scan time will spike, leading to unpredictable hardware behavior. Treat system values as your primary diagnostic tool, not an afterthought.
