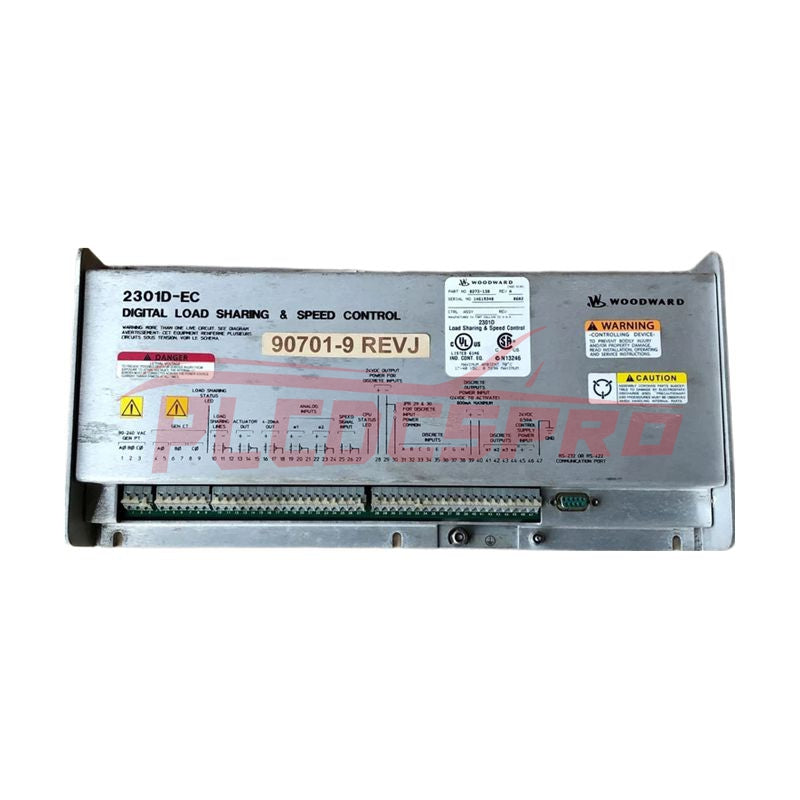

2301D | Woodward Digital Load Sharing and Speed Control for Engines
No reviews
Sku:2301D
Country Of Origin: USA
Vendor: Woodward
Type: Digital Load Sharing and Speed Control for Engines
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The Woodward 2301D is a digital load sharing and speed control designed for reciprocating engines. It delivers precise speed regulation and stable load distribution across multiple generator sets. Moreover, the controller integrates advanced digital algorithms for consistent dynamic performance. Engine operators benefit from fast response, reduced overshoot, and dependable parallel operation. The 2301D suits both isochronous and droop applications in demanding industrial environments. Therefore, it remains a trusted choice for power generation, marine, and industrial engine systems.
Technical Specifications
Parameter
Specification
Manufacturer
Woodward
Model
2301D
Product Type
Digital Load Sharing and Speed Control
Control Modes
Isochronous and Droop
Power Supply Voltage
18–32 VDC (24 VDC nominal)
Power Consumption
Typically less than 15 W
Speed Signal Type
Magnetic Pickup (MPU)
Speed Signal Frequency Range
500–15,000 Hz
Speed Accuracy
±0.25% steady-state or better
Speed Drift with Temperature
Minimal, digitally compensated
Load Sharing Method
Woodward analog load sharing line
Droop Range
Adjustable, typically up to 5%
Speed Trim Input
External analog trim supported
Actuator Output Type
Proportional electric actuator drive
Output Current Range
Compatible with Woodward proportional actuators
Start Fuel Limiting
Adjustable start fuel ramp control
Idle Speed Setting
Adjustable via internal configuration
Gain and Stability Adjustments
Independently adjustable
Synchronizer Input
Supported for parallel generator systems
Operating Temperature Range
–40°C to +70°C
Storage Temperature Range
–55°C to +105°C
Humidity
Up to 95% non-condensing
Vibration Resistance
Suitable for engine-mounted environments
Shock Resistance
Designed for industrial generator applications
Mounting Method
Panel or enclosure mounting
Enclosure Type
Industrial-grade metal housing
Indicators
LED status indicators
Compliance
Designed for industrial and marine engine control applications
FAQ
Q1: What engines are compatible with the Woodward 2301D? A: The 2301D supports diesel and gas reciprocating engines using electric actuators and magnetic pickups.
Q2: Can the 2301D operate in parallel generator applications? A: Yes, it provides true load sharing capability for multiple generator sets operating together.
Q3: Does the controller support droop operation? A: Yes, both isochronous and droop control modes are supported.
Q4: Is the 2301D suitable for harsh environments? A: Yes, it operates across wide temperature ranges and withstands engine vibration conditions.
Q5: Can it be used in retrofit projects? A: Yes, many integrators install the 2301D in existing generator control panels.
Installation Notes
Install within Woodward control racks or cabinets
Connect directly to magnetic pickup sensors near turbine or engine shafts
Use proper wiring and shielding to prevent electrical noise interference
Calibration and verification of MPU signals may be required during commissioning
