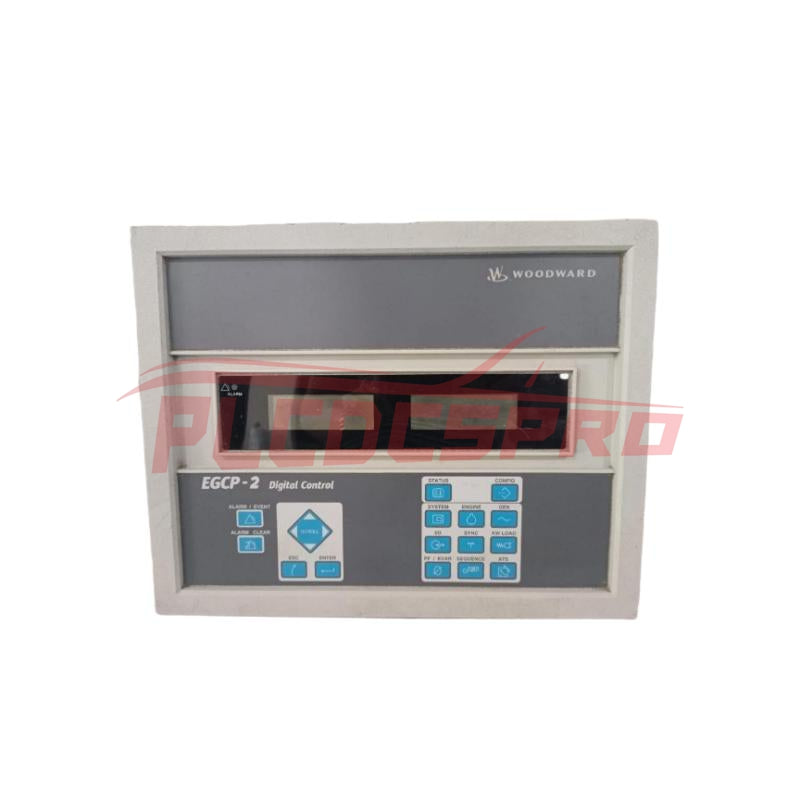

The Woodward EGCP-2 Engine Generator Control delivers advanced generator management for demanding power generation environments. This controller integrates engine control, generator protection, synchronization, and load management into one compact platform. Moreover, the EGCP-2 supports both isolated and paralleling applications with exceptional stability and flexibility. Engineers rely on this platform to maintain reliable power during peak demand and critical operations. Therefore, it serves as a central intelligence unit for modern distributed power systems.
Technical Specifications
Parameter Category
Specification Details
Manufacturer
Woodward
Model
EGCP-2
Product Type
Engine Generator Control Module
Primary Function
Generator synchronization, load sharing, and protection control
Application Mode
Standalone generator or multi-generator paralleling systems
Rated Supply Voltage
18–32 VDC (24 VDC nominal)
Typical Power Consumption
< 20 W
Reverse Polarity Protection
Yes
Generator Voltage Sensing
3-phase voltage input
Maximum Voltage Input
Up to 600 VAC (via potential transformers if required)
Frequency Range
45–65 Hz configurable
Current Sensing
External CT inputs (1 A or 5 A secondary typical)
Synchronization Method
Automatic voltage, frequency, and phase angle matching
kW Load Sharing
Yes, via load sharing line or communication-based control
kVAR / Power Factor Control
Adjustable setpoints for reactive power control
Base Load Control
Configurable fixed kW output mode
Import / Export Control
Grid interaction with programmable limits
Protection – Over/Under Voltage
Configurable thresholds and time delays
Protection – Over/Under Frequency
Adjustable trip levels
Protection – Reverse Power
Integrated reverse power monitoring
Protection – Overcurrent
Via CT measurement
Protection – Loss of Excitation
Supported
Discrete Inputs
Multiple configurable digital inputs
Relay Outputs
Programmable relay outputs for breaker and alarm control
Analog Inputs
Configurable analog inputs for engine or system monitoring
Analog Outputs
Load control or monitoring signal outputs
Communication Ports
RS-485 serial communication
Supported Protocols
Modbus RTU (standard), optional Ethernet/Modbus TCP depending on configuration
Human Interface
Front panel display with keypad configuration
Event Logging
Fault and event history recording
Operating Temperature
–40°C to +70°C
Storage Temperature
–40°C to +85°C
Humidity Rating
Up to 95% non-condensing
Mounting Method
Panel mount
Enclosure Protection
Industrial control cabinet installation
Compliance
Designed for industrial and marine power applications
Typical Installation
Switchgear panels, generator control cabinets, microgrid systems
FAQ
Q1: Can the EGCP-2 control multiple generators in parallel? Yes, the controller supports multi-generator load sharing with stable kW and kVAR control.
Q2: Does the EGCP-2 include protection functions? Yes, it integrates voltage, frequency, reverse power, and other generator protections.
Q3: Is the EGCP-2 suitable for microgrid applications? Yes, it supports grid paralleling, import/export control, and distributed energy strategies.
Q4: What communication protocols are supported? The controller supports Modbus RTU and optional Modbus TCP for integration.
Q5: Can the unit operate in harsh industrial environments? Yes, it operates reliably from –40°C to +70°C in industrial control cabinets.
Installation Notes
Install within Woodward control racks or cabinets
Connect directly to magnetic pickup sensors near turbine or engine shafts
Use proper wiring and shielding to prevent electrical noise interference
Calibration and verification of MPU signals may be required during commissioning
