Essential Guide to Measuring Resistance in Industrial Control Systems
In the complex world of industrial automation, troubleshooting dead circuits requires a shift in strategy. While voltage and current are the go-to metrics for live systems, they become irrelevant once power is disconnected. This is where resistance testing becomes the primary diagnostic tool for technicians maintaining PLC inputs, motor coils, and sensor loops.
Understanding Resistance in Factory Automation
Resistance represents the opposition to electrical flow within a component. Mathematically, it is the ratio of voltage to current, expressed by the formula$R = \frac{V}{I}$. In high-power control systems, resistance is typically measured in Ohms ($\Omega$). Conversely, sensitive electronic circuits often require measurements in kiloohms ($k\Omega$) or megaohms ($M\Omega$). High resistance indicates a restricted flow, while low resistance suggests a clear path for current.
Diagnostic Advantages Over Voltage Testing

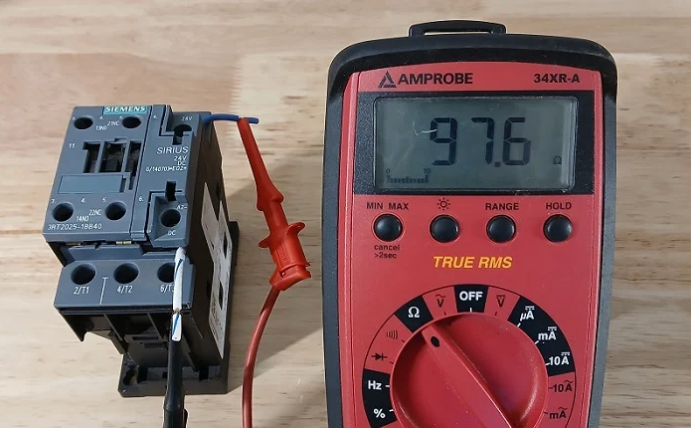

Resistance testing offers insights that simple voltage checks cannot provide. For instance, a blown fuse and an open switch both show full source voltage across their terminals. However, only a resistance test reveals the structural integrity of the component. A measurable resistance confirms that current will flow once the system is energized. This predictive capability is vital for verifying the health of relay coils and solenoid actuators before a machine restart.
Precision and the Impact of Lead Resistance
Technicians must account for "stray" resistance during low-level measurements. The test leads of a multimeter possess a small amount of inherent resistance. While negligible when testing a $10k\Omega$ thermistor, a $0.5\Omega$ error is significant when checking high-current conductors. Always "zero" your meter or subtract the lead resistance to ensure accuracy. This precision prevents false positives when diagnosing short circuits in heavy-duty distribution blocks.
Protecting the Multimeter from External Voltage
Resistance mode utilizes the multimeter's internal battery to inject a small current into the circuit. If the circuit is accidentally live, the external voltage will clash with the meter’s internal source. This often results in a "negative" reading or an "OL" (Over Limit) error. To protect sensitive DCS or factory automation controllers, always verify the absence of voltage before switching your dial to Ohms.
Limitations in AC Device Diagnostics
Standard multimeters use DC voltage for resistance checks, which fails to account for AC reactance. Components like transformers, inductors, and capacitors behave differently under alternating current. The total opposition in an AC circuit is known as impedance ($Z$). Since DC resistance is only one part of impedance, your bench test result will always be lower than the actual operational resistance in an active AC environment.
Challenges with Solid-State Components
Modern industrial control systems rely heavily on semiconductors, such as diodes and transistors. These devices are non-linear, meaning their resistance changes based on the applied voltage. A diode might show high resistance during a standard test but behave quite differently under high-speed switching conditions. For these components, specialized "Diode Test" modes or live voltage-drop analysis are more reliable than standard resistance measurements.
Author’s Perspective: The "Gold Standard" of Troubleshooting
From an engineering standpoint, resistance testing is the ultimate "sanity check" for wiring. In my experience, most intermittent faults in PLC cabinets stem from high-resistance junctions caused by oxidation or loose terminals. While many junior technicians chase "phantom voltages," a seasoned pro pulls the plug and hunts for Ohms. It is the most definitive way to confirm physical circuit continuity without the risks associated with live-arc flash hazards.
