Triconex TMR Safety System: Advanced Diagnostic and Fault Resolution

Triple modular redundancy fault isolation for critical safety applications

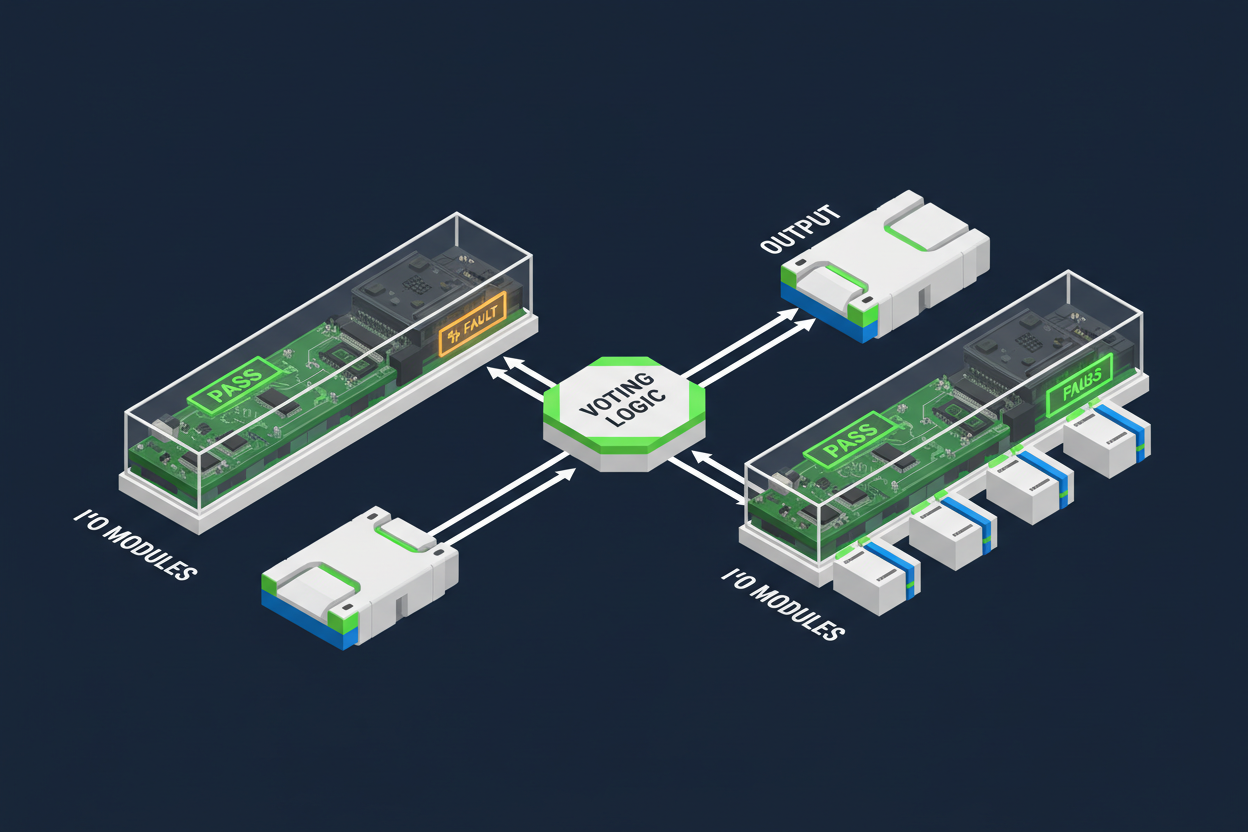

Triconex System Architecture Overview

Triconex safety instrumented systems employ triple modular redundancy (TMR) architecture. Three independent processor channels execute identical control programs simultaneously. Hardware voting mechanisms select the median value for analog inputs. Digital inputs undergo two-out-of-three voting logic. This design ensures continuous operation despite single-channel failures.

First, understand the fault tolerance philosophy behind Triconex systems. Each channel operates independently with isolated power and communication paths. Diagnostic routines run continuously to detect channel discrepancies. Moreover, the system maintains safety integrity while allowing online maintenance. Therefore, Triconex systems achieve SIL 3 certification for critical safety applications.

Diagnostic Tools and Indicators

Triconex provides comprehensive diagnostic capabilities through multiple interfaces. The TriStation software enables detailed system health monitoring. Front panel LEDs indicate module and channel status. Furthermore, system diagnostic variables store fault information accessible through HMI interfaces.

• Step 1: Monitor the main processor module LEDs. Green PASS LEDs on all three channels indicate healthy operation. Amber PASS LEDs suggest degraded but functional channels.
• Step 2: Access TriStation diagnostic displays for detailed fault analysis. Navigate to the System Status window for overall health indicators.
• Step 3: Review the System Event Log for chronological fault records. Each entry includes timestamp, fault type, and affected channel.
• Step 4: Analyze I/O module diagnostic bytes. These bytes provide granular information about field device failures.
• Step 5: Check communication module statistics for network health metrics.

Second, understand the difference between fault types. Transient faults occur temporarily and auto-correct. Permanent faults require manual intervention or module replacement. Therefore, distinguish between fault categories before initiating maintenance actions.

Channel Fault Isolation Procedures

Channel-level faults in Triconex systems require methodical isolation procedures. Voting discrepancies between channels trigger diagnostic alarms. Use the channel comparison tools in TriStation to identify deviating channels. However, avoid premature conclusions based on single diagnostic indicators.

HIMA safety systems share similar TMR principles with Triconex. Both brands employ hardware voting for critical signals. Yokogawa ProSafe-RS systems use different redundancy approaches. Therefore, cross-brand troubleshooting requires understanding architectural differences. Moreover, Emerson DeltaV SIS integrates with Triconex through OPC-UA protocols for enterprise-wide safety management.

• Step 1: Identify the suspect channel through diagnostic indicators. The system typically flags the channel with anomalous behavior.
• Step 2: Force the suspect channel offline using TriStation commands. This prevents it from affecting voting logic during diagnosis.
• Step 3: Perform detailed diagnostic tests on the isolated channel. Check processor memory, I/O communication, and timing functions.
• Step 4: Replace faulty components if diagnostics indicate hardware failure. Triconex supports hot-swap replacement for most modules.

I/O Module Troubleshooting

Input and output module faults compromise safety system integrity. Digital input modules may exhibit stuck-at faults or intermittent failures. Analog input modules suffer from calibration drift or noise interference. Output module failures create dangerous situations if not detected promptly.

First, verify field wiring connections before condemning I/O modules. Loose terminal connections cause many apparent module failures. Moreover, check signal cable shielding for proper grounding. Finally, measure field device outputs with portable instruments to confirm signal integrity.

• Step 1: Disconnect field wiring from suspect I/O channels. Apply known test signals to verify module response.
• Step 2: Compare readings across all three channels for the same input. Excessive discrepancy indicates a failing channel.
• Step 3: Execute I/O module self-test functions through TriStation. These tests verify internal module circuitry.
• Step 4: Replace modules that fail self-tests or exhibit persistent discrepancies.

Communication Network Diagnostics

Triconex systems communicate with external devices through multiple protocols. Modbus TCP enables integration with legacy DCS systems. Profinet provides high-speed data exchange with modern control networks. Furthermore, OPC-UA supports enterprise connectivity for digital transformation initiatives.

Communication faults often stem from network configuration errors. Verify IP address settings and subnet masks on communication modules. Moreover, check network switch port statistics for collision and error counts. However, always confirm that safety-critical communications remain unaffected during network troubleshooting.

Conclusion & Action Advice

Triconex TMR safety systems demand rigorous diagnostic procedures to maintain safety integrity. Understand TMR architecture principles before attempting troubleshooting. Use TriStation software comprehensively for fault analysis. Isolate channel faults systematically using hot-swap capabilities. Verify I/O module health through comparison testing. Finally, ensure communication network integrity while preserving safety-critical data paths. Regular diagnostic reviews prevent unexpected safety system failures.
