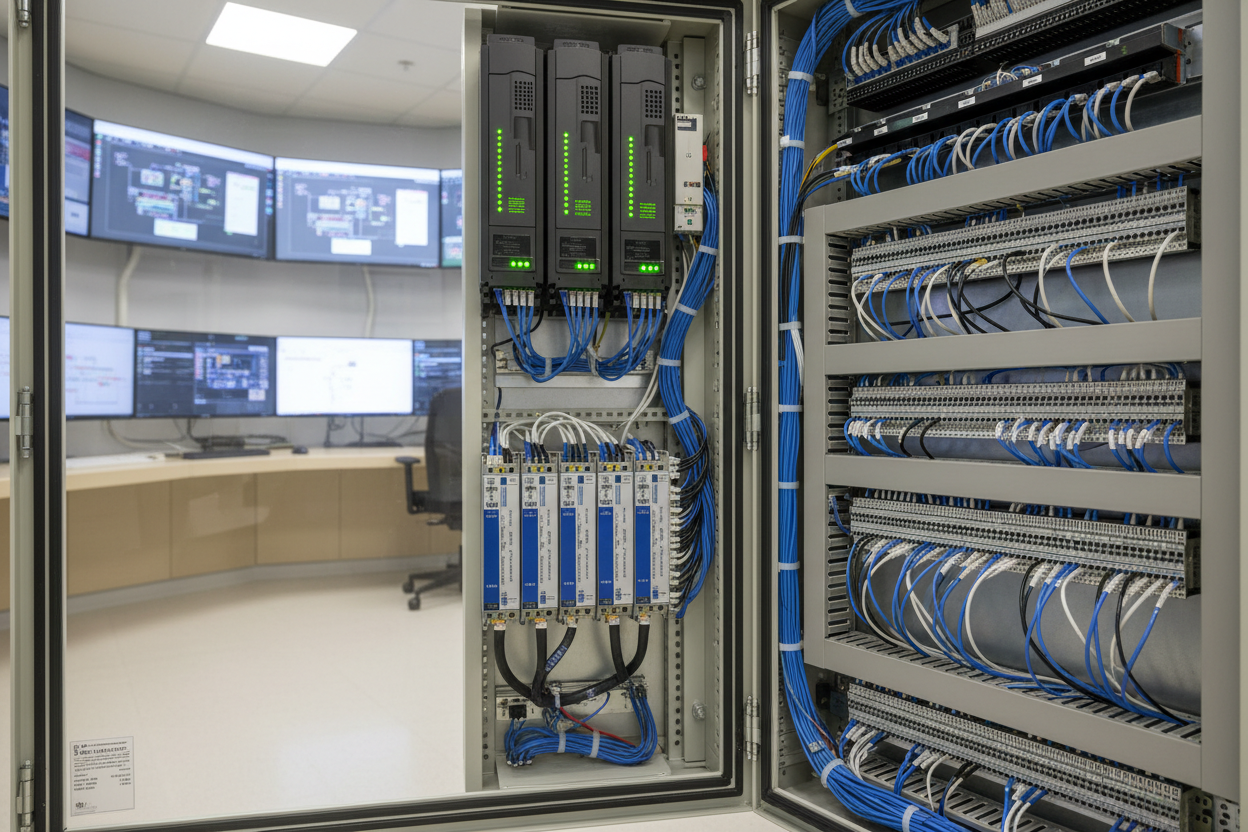

Understanding Triconex TMR Architecture and HART Communication Basics

Triconex manufactures Triple Modular Redundant safety instrumented systems widely deployed in oil and gas, chemical processing, and power generation. These systems achieve SIL 3 certification using three independent processing channels that vote on each output. HART (Highway Addressable Remote Transducer) protocol operates on top of 4–20 mA analog loops, allowing bidirectional digital communication without interrupting the primary analog signal. Field devices such as Rosemount pressure transmitters, Fisher control valves with DVC6000 positioners, and Siemens temperature sensors all support HART natively.

First, the SIS integrator must verify that the Triconex AI module supports HART pass-through. The Triconex 9300 Safety Critical Fault Tolerant System Module and the Triconex 3503E Digital Input Module are core components of the TMR architecture. Second, each HART device requires a unique address from 0 to 15 on the same 4–20 mA loop. Address 0 is reserved for point-to-point mode, while addresses 1–15 enable multi-drop configurations with up to 15 devices per channel.

Step-by-Step HART Configuration in TriStation 1131

  • Step 1: Open TriStation 1131 and navigate to the project tree. Right-click the Triconex controller and select Add Module. Choose the 3511 HART Analog Input module from the hardware catalog.
  • Step 2: Double-click the module to open the Channel Properties window. Enable HART pass-through for each channel. Set the HART address to match the field device (for example, address 3 for a Rosemount 3051 pressure transmitter on Channel 7).
  • Step 3: Define HART variables in the Variable Editor. Add a new variable with data type REAL and map it to the HART PV (Primary Variable) tag. Enable diagnostic status polling by setting the HART update rate to 2 seconds.
  • Step 4: Compile the project and download to the controller. Monitor HART status via the TriStation online view. Green indicator means healthy communication. Yellow indicates a warning such as loop current outside range. Red indicates a fault requiring immediate attention. The Triconex 3617E 48Vdc Supervised Digital Output Module handles the final element trip output in this architecture.

Real-World Troubleshooting: Diagnosing HART Communication Failures

However, HART communication failures remain common in field installations. A frequent issue involves voltage drop across the loop when long cable runs exceed 3000 meters. The HART signal requires a minimum of 250 ohms loop resistance to function properly. In practice, engineers measure loop resistance with a multimeter at the marshalling cabinet before commissioning. Another common fault is address collision where two field devices share the same HART address. This causes intermittent communication and unpredictable diagnostic data. Therefore, always document the HART address of every device in the loop during initial startup.

Moreover, sensor burnout produces a distinctive HART diagnostic pattern. The analog input reads at 4 mA or 20 mA while the HART status byte reports sensor failure. In a refinery FCC unit at a major Gulf Coast facility, a faulty level transmitter on the main column showed healthy 4–20 mA but HART reported internal module temperature above 85°C, indicating electronics degradation. Replacing the transmitter before complete failure prevented a potential unsafe state.

Integration with OPC UA and Asset Management Systems

Modern process plants integrate Triconex HART data into asset management platforms such as Honeywell Uniformance or Emerson DeltaV. The HART Foundation developed the HART-IP protocol specifically for this purpose. HART-IP encapsulates HART data in UDP packets over the plant network at 100 Mbps. Engineers configure a HART-IP gateway module in the Triconex system to publish process variables to the asset manager. This architecture enables condition-based maintenance alerts without installing additional field wiring.

The Emerson DeltaV KJ3002X1-BA1 HART Analog Input Module and the Emerson DeltaV KJ3223X1-BK1 16-Channel HART AI Card are used in DeltaV-based asset management integrations that receive HART diagnostic data from Triconex-connected field devices via HART-IP gateways.

Finally, always validate the safety function after any HART configuration change. Even though HART operates on the analog loop and does not directly affect the safety logic, modifying the channel configuration resets the input voting table. Perform a partial stroke test on final control elements and verify trip point accuracy before returning the SIS to service.

Conclusion and Action Advice

Triconex SIS and HART protocol integration delivers powerful real-time diagnostics while maintaining SIL 3 safety integrity. Always verify hardware compatibility, document HART addresses, measure loop resistance, and perform post-modification validation tests. Implement HART-IP gateways for modern asset management integration to shift from reactive to predictive maintenance strategies. Consistent documentation and systematic troubleshooting procedures will minimize unplanned shutdowns and extend the operational life of safety-critical instrumentation.
