Commissioning Guided Wave Radar Level with Yokogawa and Rosemount on HART

False echoes, buildup, and near-zone limits can make a guided wave radar (GWR) level reading unreliable. Commission the probe and tank geometry first, then confirm the HART diagnostics and 4–20 mA output.

How does guided wave radar measure level?

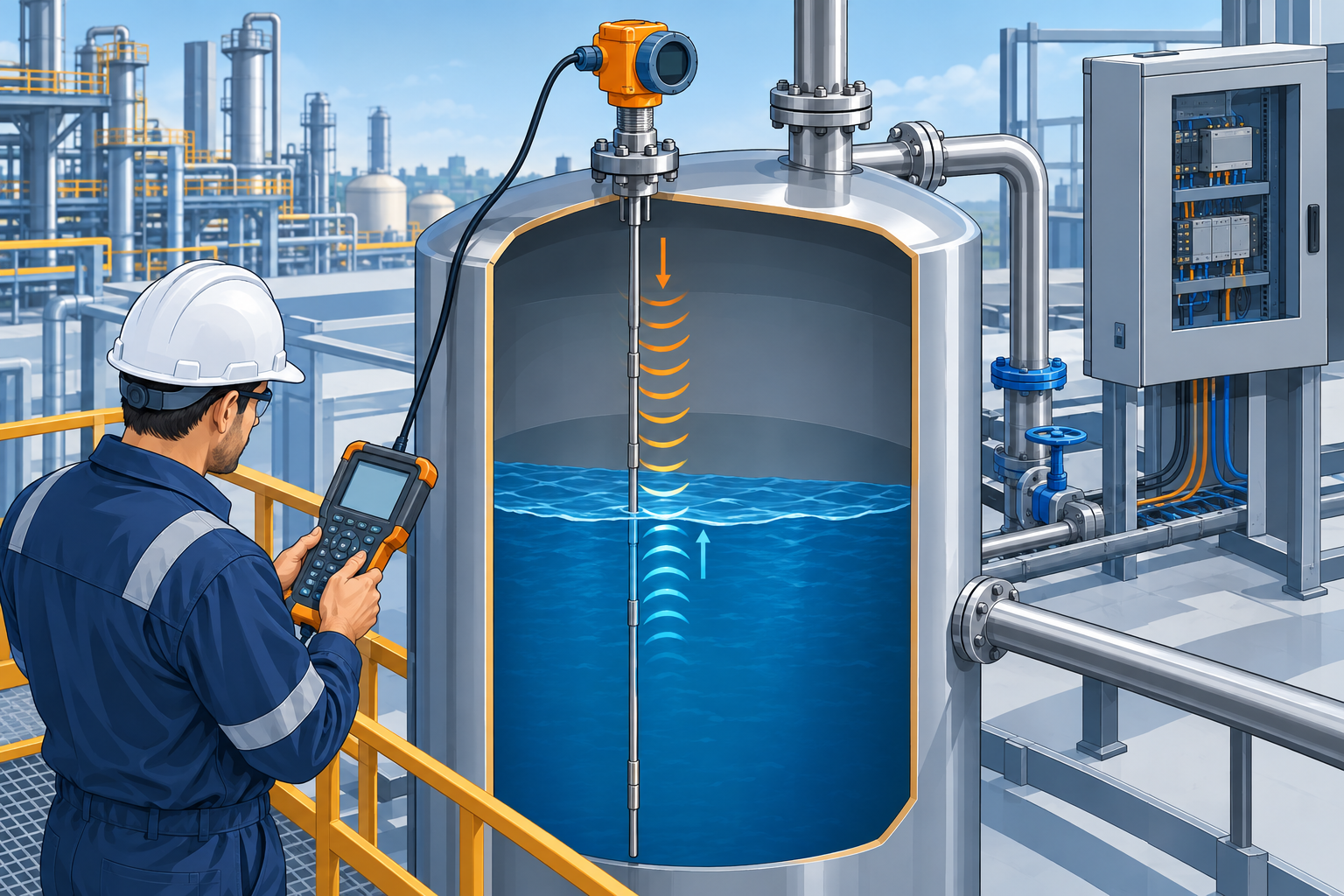

A GWR transmitter launches an electromagnetic pulse along a probe and uses its return from a material interface to determine distance. Performance depends on probe geometry, dielectric contrast, installation, and process conditions. Do not assume all FMCW instruments need four wires or that vapor, pressure, and coating never affect a measurement; check the exact model's application limits.

How should dielectric and probe type be selected?

Compare the minimum and maximum dielectric properties, tank height, nozzle, internal obstructions, turbulence, and buildup tendency with the manufacturer's probe selection guide. Single, twin, and coaxial probes have different strengths and installation constraints. A coaxial probe may help some low-dielectric applications, but it can also be unsuitable for coating or bridging service. Cut or shorten a probe only when the manufacturer permits it and update its configuration afterward.

What causes false echoes or a dead-zone reading?

Nozzles, nearby metalwork, probe ends, and deposits can produce competing reflections. Review the device's echo curve at a known level, verify the mounting geometry, and apply false-echo mapping or suppression only as specified by the model manual. Account for the near-zone and end-of-probe limitations in the measurement span. Do not automatically run an empty-tank profile or clean a probe on a fixed schedule without evaluating process conditions and safe access.

What can HART diagnostics tell an engineer?

Read device status, echo or signal diagnostics where available, and the configured range using the transmitter's approved HART tool. Compare the selected surface echo with the actual level and distinguish loss of echo from a change in process conditions. Check the 4–20 mA output against lower and upper range values and the receiving input scaling. A Yokogawa HART analog input module is an example of receiving-side hardware that may be involved in loop checks, not a GWR transmitter. Likewise, an Emerson Fisher-Rosemount analog input module should be identified by its actual capabilities before making assumptions about HART support.

How should the two-wire power budget be checked?

Calculate supply voltage available at the transmitter at the relevant loop current after wiring, input burden, isolators, and any HART communication resistor. A 250 Ω load is common in HART systems, but add one only when the actual device and input arrangement need it. Confirm the manufacturer's minimum terminal voltage and fault-current configuration; do not assume every device signals a fault at the same current or that a wandering zero proves marginal power.

What should be saved after commissioning?

Record the probe and mounting details, process dielectric assumptions, echo curve at a known level, suppression settings, near-zone limits, 4–20 mA scaling, loop voltage, and diagnostic status. Revisit that baseline when buildup or a changed process material affects the level trend. Do not use a GWR measurement for custody transfer or a protective function without verifying the exact instrument and application requirements.

Author: Xu Ruotong is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
