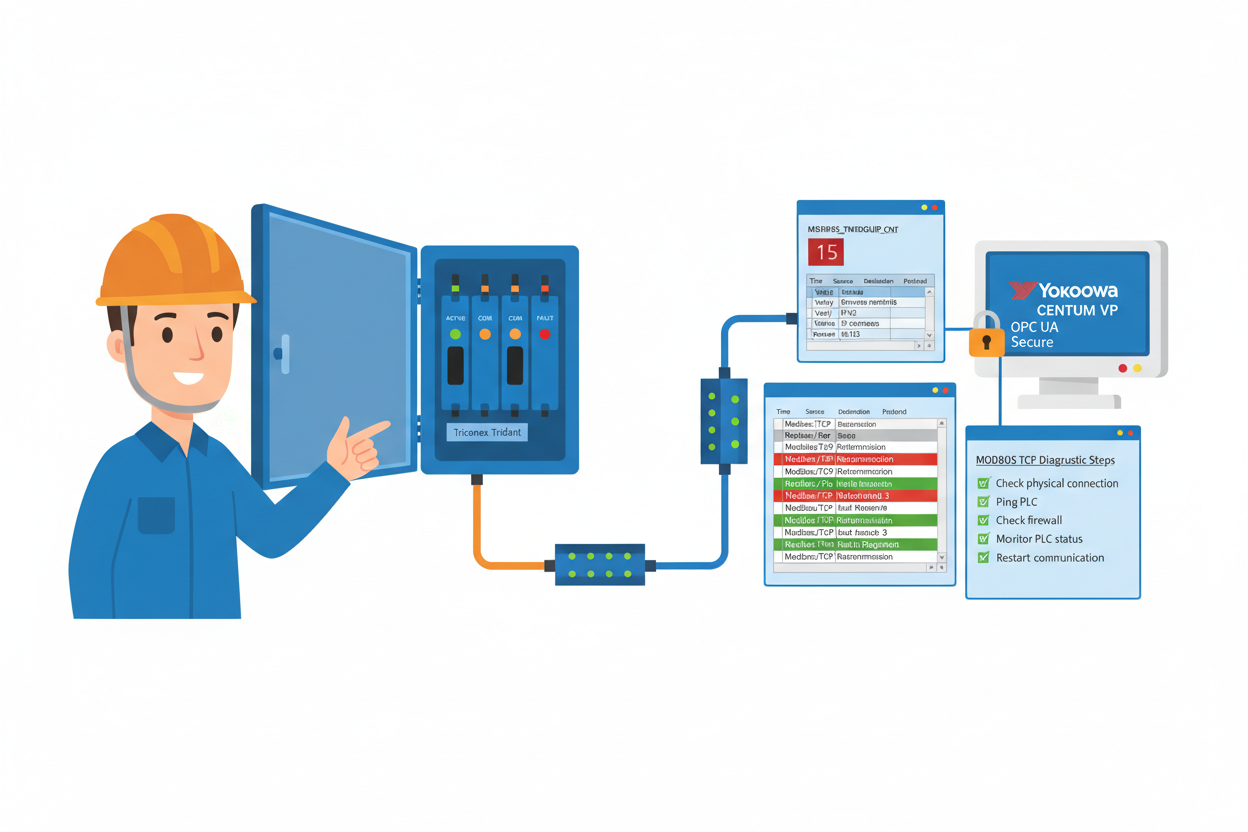

Triconex Trident Safety PLC: Step-by-Step Modbus TCP Diagnostic Protocol for ESD Systems

ESD system troubleshooting, IEC 61511 communication fault detection, Modbus TCP watchdog timer SIS, OPC UA Triconex integration, TCM communication module fault, Triconex Trident Modbus TCP diagnostics, TriStation 1131 diagnostic counters, Wireshark Modbus TCP analysis
July 03, 2026

Q: Why Do Modbus TCP Faults in Triconex SIS Demand Immediate Action?

Triconex Trident and Tricon safety PLCs guard thousands of Emergency Shutdown (ESD) loops worldwide. A single Modbus TCP timeout between a Triconex safety logic solver and a Yokogawa CENTUM VP DCS can trigger nuisance trips — downtime costs exceed $50,000 per hour in refinery applications. Field experience shows that 70% of Modbus failures trace to network infrastructure, switch configuration, or firewall rules, not the safety PLC firmware.

IEC 61511 Clause 11.7.2 demands that safety system communication faults be detected and annunciated within the process safety time. A silent Modbus failure violates this requirement. Every Triconex Modbus link must include watchdog timers and diagnostic counter monitoring. The Triconex 4351B Tricon Communication Module and Triconex 4352AN TCM Communication Module are the hardware interfaces that handle all external Modbus TCP data exchange on Triconex Trident and Tricon systems.

Q: How Do I Execute the 7-Step Modbus TCP Diagnostic Protocol?

Step 1 — Verify TCM LED Status: Open the Triconex cabinet. The TCM front-panel LEDs show ACTIVE (solid green), COM (flashing amber during data exchange), and FAULT (must be off). If FAULT is solid red, reseat the TCM module with the key switch in PROGRAM mode. Record the exact LED pattern before any reset.
Step 2 — Check Modbus Connection Counters: Launch TriStation 1131 Developer Workbench. Navigate to Diagnostics → Communication → TCM Statistics. Read registers MODBUS_CONN_ACTIVE (should equal number of expected clients) and MODBUS_TIMEOUT_CNT (must be zero for a healthy link). A non-zero timeout count indicates packet loss at the TCP layer.
Step 3 — Validate IP Configuration: From the TriStation Diagnostic Panel, confirm the TCM IP address, subnet mask, and default gateway. Ping the TCM from the Yokogawa DCS engineering station. If ping fails, check the Cisco switch VLAN configuration. Triconex TCM modules use 100 Mbps full-duplex — force 100FDX on the switch port to prevent auto-negotiation mismatches.
Step 4 — Capture Modbus TCP Traffic: Mirror the TCM switch port using SPAN or RSPAN. Run Wireshark with filter modbus && tcp.port == 502. Look for TCP Retransmissions, Reset (RST) packets, and Modbus Exception Code 0x0B (Gateway Target Device Failed to Respond). More than 3 retransmissions per minute demands immediate investigation.
Step 5 — Analyze Holding Register Mapping: Open the Triconex Modbus map file (exported from TriStation as .CSV). Verify all mapped holding registers (4xxxx) align with the Yokogawa CENTUM VP Modbus scanner configuration. A one-register offset error — such as mapping 40001 instead of 40000 — causes systematic data corruption without any Modbus exception. Cross-check register 40001 byte order: Triconex uses Big-Endian. Confirm this in the ALR121 Modbus communication card settings.
Step 6 — Enable Diagnostic Registers: Triconex firmware v11.5+ exposes internal diagnostic registers starting at 49901. Map registers 49901–49910 to the DCS scanner. Register 49901 reports system scan time in milliseconds. Register 49902 shows TriBus communication health (0=OK). Register 49903 returns the number of active SOE events in the buffer. Monitor these registers continuously via the Yokogawa DCS trend group.
Step 7 — Test Failover Behavior: With the process in a safe state, pull the primary TCM module. Verify that the Yokogawa DCS Modbus scanner detects the timeout within the configured watchdog period (recommended: 2 seconds). Confirm that the DCS holds the last good value or transitions to a predefined fail-safe state. Record the actual failover time — it must be less than the process safety time documented in the SRS.

Q: How Does OPC UA Complement Modbus TCP Diagnostics on Triconex?

Modbus TCP lacks built-in diagnostic metadata. For critical Triconex installations, consider adding an OPC UA wrapper. Schneider Electric offers the Triconex OPC UA Server (TPS-OPCUA) that exposes TriStation diagnostics over OPC UA port 4840, providing structured diagnostic nodes — ConnectionStatus, LastErrorCode, HeartbeatCount — that integrate directly with Yokogawa CENTUM VP via the Exaopc OPC UA client interface.

Install the TPS-OPCUA software on a Windows Server 2019 machine in the OT DMZ.
Configure the OPC UA endpoint URL as opc.tcp://[TCM_IP]:4840.
Map the diagnostic nodes into the Yokogawa DCS alarm management system. Set alarm thresholds: HeartbeatCount delta > 5 in 60 seconds triggers a System Diagnostic Alarm (SDA) priority 2.

OPC UA supports encrypted communication (Basic256Sha256) that Modbus TCP lacks, satisfying IEC 62443-3-3 SR 3.1 communication integrity requirements. However, never route safety-critical shutdown commands through OPC UA — keep the hardwired emergency shutdown relay path independent per IEC 61508 architectural constraints.

What Is the Key Action Advice?

Triconex Modbus TCP diagnostics are not optional — they are a regulatory and operational requirement. Start with LED indicators and progress through counter analysis, packet capture, and register mapping verification. Add OPC UA for rich diagnostics without touching the safety logic. Document your diagnostic procedures in the site Maintenance Override Switches (MOS) procedure binder. Every shift technician must execute Steps 1–3 independently. Schedule a quarterly Modbus health audit using Wireshark captures stored in the DCS historian for trend analysis.

Author: Zhang Weiming is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems. He specializes in Safety Instrumented Systems (SIS) and has commissioned Triconex and HIMA safety PLCs across petrochemical facilities in Asia-Pacific.
