Pressure Safety Valve Leak Testing: Step-by-Step PSV Testing Procedures Using Air, Nitrogen, and Water Methods

Pressure Safety Valve Leak Testing: Step-by-Step PSV Testing Procedures Using Air, Nitrogen, and Water Methods

What Is Cold Differential Test Pressure (CDTP)?

CDTP is the most important parameter in PSV leak testing. It is the test pressure applied to the valve during bench testing. CDTP differs from the valve’s actual set pressure because real operating conditions at the plant — high temperatures and back pressure — affect valve opening behavior.

At elevated temperatures, the spring inside a PSV loses some of its stiffness. This causes the valve to open at a lower pressure than the nameplate set pressure. Similarly, if the valve discharges against a constant back pressure in service but is tested at atmospheric pressure on the bench, the test pressure must be adjusted accordingly.

The CDTP formula is: CDTP = (Set Pressure − Constant Back Pressure) × Temperature Correction Factor. The temperature correction factor is expressed as a percentage and is available from the PSV manufacturer’s documentation. Emerson Fisher publishes correction factor tables for each valve series. Always obtain the factor from the original datasheet before calculating CDTP.

If the CDTP value is printed on the PSV nameplate or commissioning datasheet, use that value directly. Manual calculation is only necessary when the original documentation is unavailable.

PSV Leak Test Using Air or Nitrogen

The air or nitrogen method is the most widely used bench test procedure. It provides a clear visual indication of seat leakage without introducing liquid into the valve body.

  • Step 1: Mount the PSV securely on the test bench. Ensure the inlet connection is leak-tight using calibrated test fittings rated above the CDTP value.
  • Step 2: Identify or calculate the CDTP value from the valve nameplate or manufacturer data.

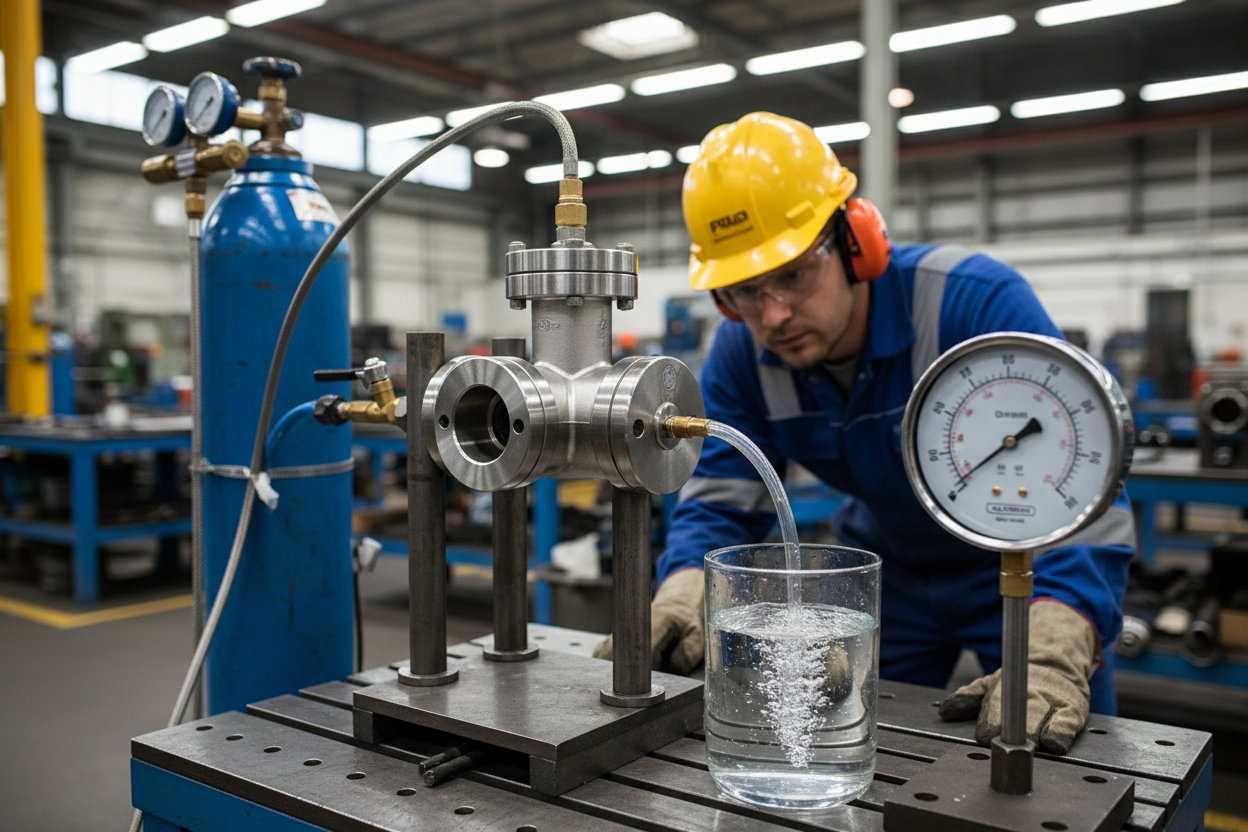

  • Step 3: Connect a nitrogen cylinder through a pressure regulator and a precision needle valve to the PSV inlet port. Use a calibrated test gauge with a range of 1.5 times the CDTP for best resolution.
  • Step 4: Increase the nitrogen pressure slowly using the needle valve. Bring the pressure to 90% of CDTP. Do not exceed CDTP during the leak test phase.
  • Step 5: Attach a transparent plastic tube to the PSV outlet. Submerge the other end in a container of water filled to a depth of 25 mm. Observe the water surface for air bubbles escaping from the tube.
  • Step 6: Count the bubble rate. API 527 specifies the maximum acceptable bubble rate as a function of valve size and type. For soft-seated valves, the limit is typically zero bubbles per minute. For metal-seated valves, API 527 Table 1 lists allowable rates by orifice size. An Emerson Fisher Series 526 or 760 valve has a published maximum leakage rate that must be confirmed against this table.
  • Step 7: Document the result. Record the CDTP used, the observed bubble count, and the test duration. Sign and date the test record before filing it in the plant maintenance management system.

PSV Leak Test Using Water

The water method is used when a liquid reference is more reliable for detecting small leaks, or when the application requires a hydrostatic confirmation of seat integrity.

  • Step 1: Mount the PSV on the test bench with the inlet facing up.
  • Step 2: Confirm the CDTP value from the nameplate or datasheet.
  • Step 3: Fill the PSV body with clean water before pressurizing. Water filling eliminates air pockets that could mask a leak at the seat.
  • Step 4: Connect the water supply through a hand pump or hydraulic test unit. Open the water supply needle valve and raise pressure slowly to 90% of CDTP.
  • Step 5: Observe the PSV outlet flange. Look for visible water drips or a steady water flow. Place a clean dry cloth at the outlet to detect even small seepage rates.
  • Step 6: Measure the leak rate using a graduated cylinder placed at the outlet. Time the collection over 60 seconds. Compare the measured volume against the acceptable limit in the valve manufacturer’s data or API 527.
  • Step 7: If the valve passes, depressurize and drain completely before reinstallation. Any residual water in a gas service valve can cause corrosion or seat icing in cold climates.

Handling Test Failures

A failed PSV leak test demands structured follow-up. First, inspect the valve seat and disc under magnification for debris, scratches, or corrosion. Cleaning the seating surfaces and retesting resolves many failures without a full overhaul.

Second, check the spring for deformation. A damaged spring causes inconsistent set pressure. Replace it with an OEM part. The Bently Nevada 3500/16 Dual Vibration Monitor and the Bently Nevada 3500/42 High-Performance Vibration Monitor are used to identify nearby machinery resonance that accelerates spring fatigue and drives recurring PSV seat leaks.

Therefore, after any corrective action, repeat the full leak test from Step 1. Document the second attempt separately. Never overwrite the original failed record — regulators require evidence of both the failure and the corrective verification.

Conclusion and Action Advice

PSV leak testing protects personnel and process equipment. Understanding CDTP calculation, selecting the correct test method, and applying the right acceptance criteria form the foundation of any reliable PSV program. Use Emerson Fisher documentation for allowable leakage rates. When failures occur, follow a structured corrective process and always retest before returning the valve to service. A disciplined PSV program reduces safety incidents and lowers regulatory risk.

Author: Sun Pengfei is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
