PLC AO Scaling Errors in Brownfield Retrofits: Root Cause Analysis and Correction Procedures for Allen-Bradley ControlLogix and Honeywell HC900

Root Cause 1: Raw Count Range Mismatch Between Legacy and New Hardware

The most common brownfield AO scaling error stems from raw count range differences. Many legacy PLCs output 0–4095 counts (12-bit) mapped to 4–20 mA. Allen-Bradley ControlLogix 1756-OF8 8-Channel Analog Output Module cards use a 16-bit range of –32,000 to +32,000 counts. If the replacement team copies ladder logic without adjusting the SCP (Scale with Parameters) instruction, the output is badly incorrect.

Consider a typical control valve application. The legacy 12-bit system sent 2048 counts for 50% output (12 mA). In ControlLogix, the equivalent 50% command is 16,000 counts on a unipolar 0–32,000 range. Without correction, copying 2048 counts to the ControlLogix tag produces approximately 5.4 mA instead of 12 mA — the valve opens 4.6% instead of 50%.

First, confirm the card’s output mode in Studio 5000. The 1756-OF8 supports three modes: Raw/Proportional (–32,768 to +32,767), Engineering Units (4.000 to 20.000 mA), and Percent (0.0 to 100.0). Select Engineering Units mode for all brownfield projects. This eliminates raw count translation and directly commands milliamp values, removing the risk of legacy count import errors entirely. Pair the 1756-OF8 with the Allen-Bradley 1756-L82EK ControlLogix Controller for a complete retrofit platform.

Root Cause 2: HC900 Output Clamp and Fail-Safe Interaction

Honeywell HC900 C50 AO channels ship with output clamps at 3.6 mA minimum and 20.5 mA maximum. These enforce NAMUR NE 43 margins. However, in brownfield projects where the field device expects 4.0 mA as true zero, the 3.6 mA fail-safe default registers as a signal fault, not a zero-output command.

Moreover, the HC900 fail-safe output defaults to 0.0 EU. For a standard 4–20 mA channel spanning 0–100%, this maps to 4.0 mA correctly. The error appears when the physical range starts at a non-zero minimum. A range of 200–1000 m³/h causes the controller to map 4.0 mA to 200 m³/h, not zero flow — creating a 200 m³/h zero offset invisible in normal operating range.

Therefore, always verify the EU low value matches the 4 mA physical anchor. If 4 mA represents 200 m³/h in the field device calibration, configure the HC900 AO channel EU low as 200 m³/h — not zero. Also change the clamp minimum from 3.6 mA to 4.0 mA for process control channels to prevent spurious NAMUR under-range alarms at normal zero-output conditions. The Honeywell HC900 900B01-0101 Analog Output 4-Channel Module and the Honeywell HC900 900B16-0202 16-Channel Analog Output Card are both available for HC900 retrofit builds, paired with the Honeywell 900C50-0460-00 ControlEdge 900 CPU Controller Module.

Step-by-Step AO Scaling Correction Procedure

Perform this verification in cold loop (field device isolated from process) before hot loop validation. Do not bypass this step even when schedule pressure is high.

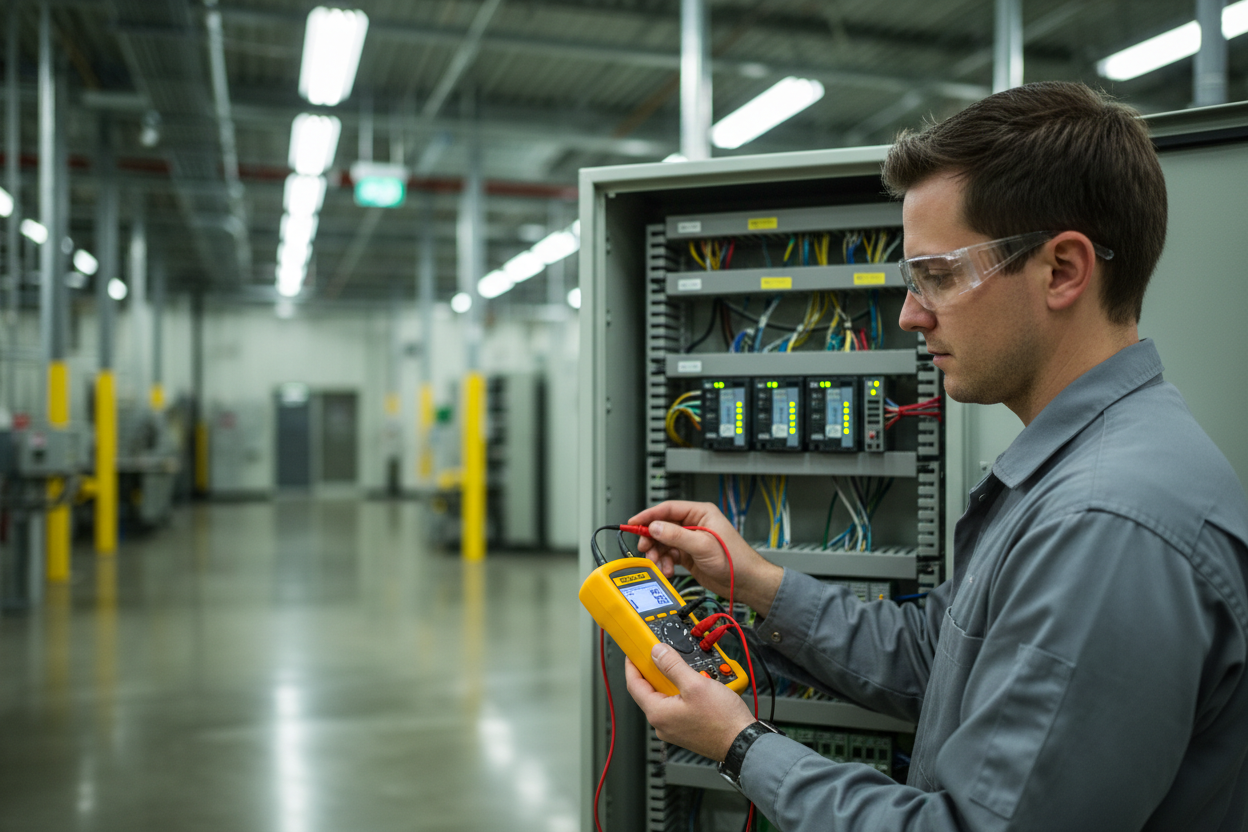

• Step 1: Disconnect the AO channel from the field device. Connect a Fluke 789 calibrator in milliamp measurement mode at the card terminal strip.
• Step 2: Command 0% output. Expected: 4.000 mA ± 0.020 mA. If measured value is 3.6 mA, raise the HC900 clamp lower limit to 4.0 mA or verify the ControlLogix Engineering Units mode is active.
• Step 3: Command 25%, 50%, 75%, and 100% output. Calculate linearity error: (Measured − Expected) / Span × 100%. Acceptable tolerance: ≤ ±0.1% for SIL-rated loops; ≤ ±0.25% for standard loops.
• Step 4: Command 100% output. Expected: 20.000 mA ± 0.020 mA. Reduce HC900 clamp upper limit to 20.0 mA for control channels. Leave 20.5 mA only for NAMUR over-range diagnostic channels.
• Step 5: Simulate controller fail-safe (communication loss or controller stop). Measure the fail-safe milliamp output. Verify it matches design intent — 4.0 mA (valve closed) or 20.0 mA (valve full open) per actuator spring direction.
• Step 6: Reconnect the field device. Confirm actuator position matches the commanded value. Maximum position error: ±1% full travel for standard control; ±0.5% for SIL final elements.

Conclusion and Action Advice

AO scaling errors in brownfield retrofits are invisible at first glance but cause systematic process deviations. Allen-Bradley ControlLogix 1756-OF8 errors originate from raw count range mismatches when logic migrates from 12-bit legacy systems. Honeywell HC900 errors stem from clamp limits and non-zero EU range anchoring. Both are preventable.

Adopt Engineering Units mode on all ControlLogix AO cards. Verify HC900 fail-safe values match actuator spring-return direction. Perform a six-point milliamp verification before reconnecting any field device. Treat AO cold-loop testing as mandatory, not optional — one misconfigured channel can trip a process unit and cost more than the retrofit contract itself.
