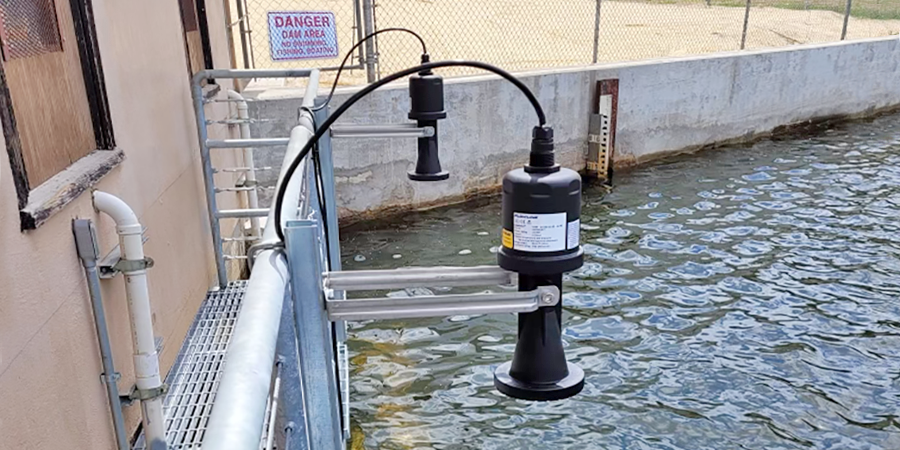

Introduction: The Role of PLC in Dam Water Level Management

Program Overview: Monitoring and Control

The objective of this PLC system is to monitor the water level in a dam and automatically activate alarms and control valves or gates based on predefined thresholds. The system integrates multiple sensors to detect water levels, and it responds accordingly by triggering different alarms and opening or closing dam gates. Below is a breakdown of how the system operates across five alarm stages.

Alarm Stages and Actions

Level 1: Initial Warning and Alarm Activation

At Level 1, the system is activated when the water level reaches a predefined threshold. The Level 1 alarm is triggered to notify operators of the increasing water level. In this stage, the system simply provides an early warning with no immediate actions such as opening gates or activating pumps. This allows operators to monitor the situation and prepare for further actions.

Level 2: Alarm and Drainage Valve Activation

As the water level rises to Level 2, the Level 2 alarm is activated. At this stage, a drain valve opens to begin discharging water. To further reduce the water level, the system activates a water pump after a short delay (2 seconds). The pump helps manage excess water, reducing the risk of overflow. This automated process ensures that water is actively managed, minimizing the potential for flooding.

Level 3: First Gate Activation

When the water level reaches Level 3, the system triggers the Level 3 alarm. At this point, the system begins to open one dam gate to release more water. This controlled release helps alleviate the rising water levels, preventing them from reaching dangerous thresholds. The gradual opening of gates ensures that water is discharged in a safe and controlled manner.

Level 4: Second Gate Activation

Upon reaching Level 4, the system activates the Level 4 alarm and opens a second dam gate. This additional gate increases the water discharge capacity, allowing for a more significant reduction in the water level. The stepwise opening of gates in response to rising water levels ensures that the dam can handle increased inflow without risk of failure.

Level 5: Full Gate Activation for Maximum Water Discharge

At Level 5, when the water level reaches its highest threshold, the Level 5 alarm is triggered, and all three dam gates are opened. This full activation of the gates maximizes water flow out of the dam, preventing a catastrophic overflow. By this stage, the system has automatically taken all necessary actions to ensure the water level is controlled, protecting the integrity of the dam structure.

PLC Programming Logic for Dam Gate Control

Rung 0: System Initialization

The first step in the PLC program involves initializing the system. When the START button (0.00) is pressed, the memory bit SYSTEM_ON (W0.00) is set to HIGH, enabling the system to operate. This bit remains HIGH even after the START button is released, thanks to the KEEP instruction (011). Pressing the STOP button (0.01) will reset the system, turning the memory bit SYSTEM_ON to LOW.

Rung 1: Level 1 Alarm Logic

The first rung in the PLC program is dedicated to monitoring the water level at Level 1. When the memory bit SYSTEM_ON (W0.00) is HIGH and the SENS_LEVEL1 (0.02) sensor detects water at Level 1, the ALARM_LEVEL1 (100.00) is triggered. This activates the alarm and notifies the operator of the rising water level.

Rung 2: Level 2 Alarm and Drainage Valve Activation

At Level 2, when the SENS_LEVEL2 (0.03) sensor detects the water level, the ALARM_LEVEL2 (100.01) is activated. Simultaneously, the VALVE (100.02) opens to allow water drainage. After a brief delay (2 seconds), the TIMER_PUMP (T0000) activates, turning the PUMP (100.03) ON to reduce the water flow.

Rung 3: Level 3 Alarm and First Dam Gate

Upon reaching Level 3, the system activates the ALARM_LEVEL3 (100.04) when the SENS_LEVEL3 (0.04) sensor detects the water level. This triggers the opening of GATE_WATER1_OPEN (100.05), allowing water to flow through the first gate.

Rung 4: Level 4 Alarm and Second Dam Gate

At Level 4, when the water level reaches the corresponding sensor, the ALARM_LEVEL4 (100.06) is triggered, and the second gate, GATE_WATER2_OPEN (100.07), is opened to allow further water release.

Rung 5: Level 5 Alarm and Full Gate Activation

Finally, at Level 5, the ALARM_LEVEL5 (100.08) is triggered when the SENS_LEVEL5 (0.06) sensor detects the highest water level. At this stage, all three gates are opened, as indicated by GATE_WATER3_OPEN (100.09), ensuring maximum water discharge to prevent flooding.

Benefits of PLC-Based Dam Gate Control

Enhanced Safety and Flood Prevention

The automated monitoring and control system provided by PLCs significantly enhances the safety of dam operations. By using sensors and alarms to continuously monitor water levels, the system ensures that operators are alerted before dangerous conditions arise. The automatic control of gates and valves based on real-time data helps prevent flooding and damage to the dam infrastructure.

Increased Efficiency and Reduced Human Error

With PLCs managing the water level control process, operators no longer need to monitor the dam constantly. The system runs autonomously, reducing the risk of human error and improving the overall efficiency of dam operations. Moreover, automated systems can respond more quickly and accurately than manual control methods.

Cost Savings and Long-Term Sustainability

Automating water level management reduces the need for manual labor and provides long-term cost savings. By ensuring that gates and valves open and close based on water levels, the system also optimizes water discharge, improving the dam's efficiency and sustainability.

Conclusion: The Future of Automated Water Management

PLC-based automation for dam gate control is a game-changer for water management. By providing continuous monitoring, automatic alarms, and gate control, these systems ensure that water levels are maintained safely, preventing overflows and damage to the dam structure. As industrial automation continues to evolve, PLC systems will play an increasingly vital role in managing critical infrastructure like dams, offering enhanced safety, efficiency, and cost-effectiveness.
