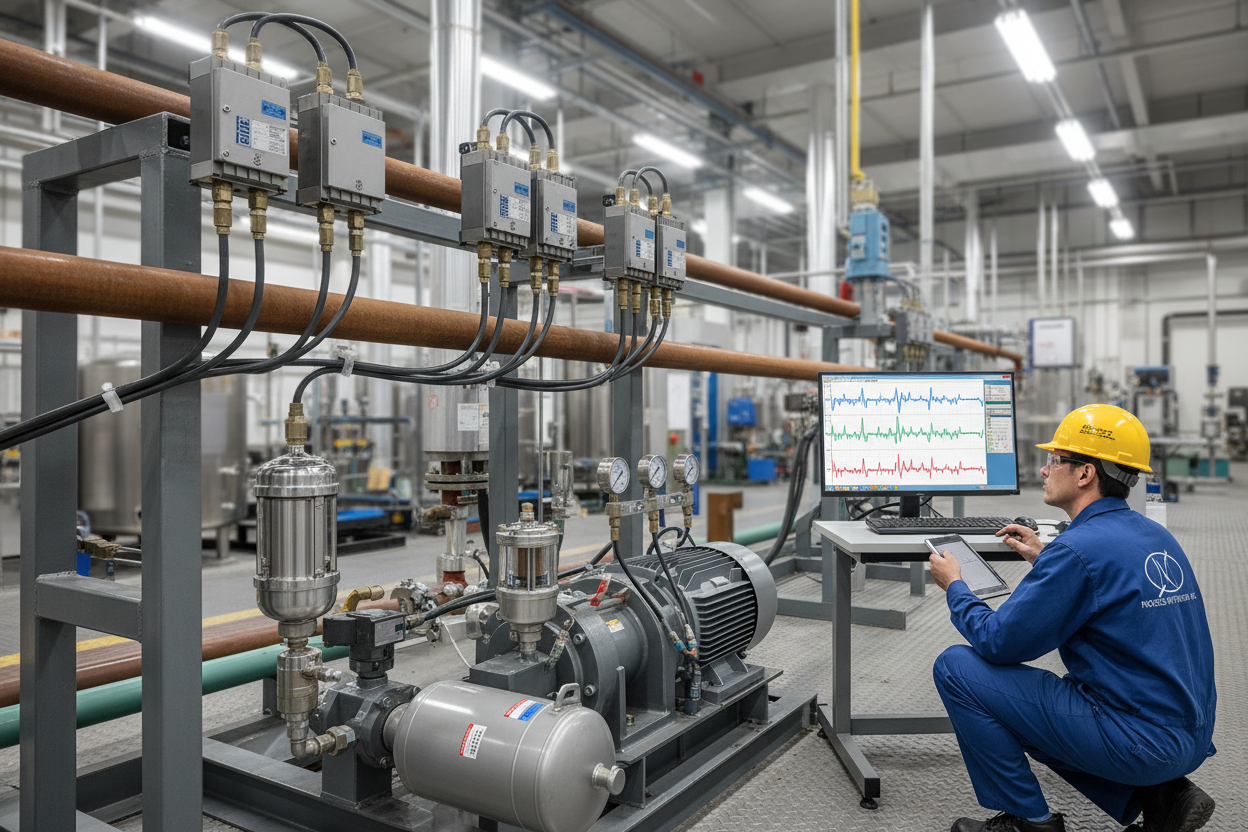

Hydraulic System Pressure Instability: Root Causes and Field Troubleshooting Guide

Why Pressure Changes Occur in Fluid Systems

Industrial fluid systems use pressurized oil or gas to move actuators and drive loads. A small input force produces a high output pressure. This amplification factor makes hydraulic systems efficient for heavy-duty applications. However, the same sensitivity means small faults produce large pressure swings.

Contaminated fluid is the leading cause of unplanned pressure changes. Particles as small as 15 microns damage pump surfaces and valve seats. Over time, this wear creates internal leakage paths. Pressure drops without any external load change. Always verify fluid cleanliness with an ISO 4406 particle count before blaming other components.

Device failure is the second major cause. A pump with worn gears or a cracked piston ring cannot maintain rated discharge pressure. Similarly, a relief valve set too low bleeds off pressure before the actuator reaches full stroke. Emerson Fisher regulators and pilot valves are often inspected first in these scenarios because they directly govern system pressure limits.

Diagnosing Pressure Drops

Pressure drops signal that the system cannot generate or hold working pressure. Follow this structured approach:

• Step 1: Isolate the circuit. Close the manual shut-off valve at the actuator and measure pump discharge pressure. If pressure remains low, the pump or relief valve is suspect. If pressure recovers, the fault is downstream.
• Step 2: Check the relief valve setting. Use a calibrated pressure gauge at the relief valve test port. The set point should match the original commissioning data on the Yokogawa loop diagram.
• Step 3: Sample the fluid. Pull a 100 mL sample from the return line and submit it for particle count analysis. An ISO cleanliness level worse than 17/15/12 indicates contamination damage.
• Step 4: Inspect internal cylinder seals. Attach a transparent drain line to the cylinder rod end. Observe for continuous oil flow when the cylinder is under static load. Seal bypass confirms internal leakage.
• Step 5: Review DCS trend data. The Yokogawa CENTUM VP Duplexed Field Control Unit historians log pressure every second. Compare the pressure trace before and after the drop event. A gradual decline points to progressive wear. A sudden step drop indicates a valve or seal failure.

Diagnosing High Pressure and Surges

High pressure events are equally dangerous. They stress hoses, fittings, and actuator housings beyond rated limits. Moreover, pressure surges accelerate fatigue cracking at pipe elbows and tee connections.

First, check for flow restrictions. A clogged filter element raises upstream pressure rapidly. Replace the filter element and monitor the pressure differential indicator. A differential greater than 5 bar on a return-line filter demands immediate element replacement.

Second, inspect the accumulator precharge. A nitrogen-charged accumulator with low precharge cannot absorb pressure spikes. Use a calibrated nitrogen gauge to verify the precharge matches the system design value, typically 60% of minimum working pressure.

Third, examine the proportional valve response. Emerson Fisher proportional control valves can develop hysteresis after years of operation. Hysteresis causes the valve to lag behind its command signal. This lag creates pressure overshoots during ramp-up sequences. Request a valve signature test using an Emerson AMS Device Manager to quantify the hysteresis band.

Addressing Cavitation

Cavitation occurs when local pressure falls below the fluid vapor pressure. Vapor bubbles form and then implode violently. The implosion erodes metal surfaces. However, cavitation is often misidentified as pump failure.

Listen for a rattling or gravel-like noise from the pump housing. This noise confirms cavitation. Measure the pump inlet pressure. If it falls below 0.5 bar absolute, the pump is starved. Increase the reservoir height, shorten the suction line, or install a booster pump to correct the inlet condition.

Use the Yokogawa DPharp EJA Series Pressure Transmitter or the Yokogawa EJA530E Gauge Pressure Transmitter to monitor pressure across suction and discharge ports simultaneously. A transmitter with 0.04% accuracy provides reliable data for trending cavitation risk. Trend the differential daily during seasonal temperature changes, since fluid viscosity affects vapor pressure margins.

Preventive Maintenance Schedule

• Step 1: Change the hydraulic filter every 500 operating hours or when the differential pressure indicator reaches the red zone.
• Step 2: Sample and test fluid quality every 1,000 hours using ISO 4406 particle counting and water content analysis.
• Step 3: Check accumulator precharge quarterly. Log all readings in the maintenance management system with date and technician ID.
• Step 4: Calibrate all pressure transmitters annually using a Yokogawa CA500 or equivalent reference standard traceable to national measurement institutes.
• Step 5: Review DCS alarm history monthly. Address any pressure alarm that recurs more than three times in 30 days as a priority work order.

Conclusion and Action Advice

Hydraulic pressure instability rarely has a single cause. Contamination, worn components, incorrect settings, and inadequate maintenance each contribute. Therefore, a systematic stepwise diagnosis always outperforms guesswork. Start with fluid cleanliness, verify relief valve settings, and use DCS trend data to narrow the fault location. Pair your field inspections with calibrated instruments and manufacturer-specific diagnostic tools. Teams using Yokogawa and Emerson platforms have access to powerful built-in trending and device health tools — use them actively rather than waiting for alarms.

Author: Liang Haocheng is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
