ESD Protection in Industrial Automation: Anti-static Wrist Strap Procedures for Schneider M340 and Allen-Bradley ControlLogix Maintenance

The Hidden Threat: ESD Damage During Maintenance

Electrostatic discharge (ESD) destroys electronic components silently. A 30V discharge is invisible to human senses but fatal to PLC processors. In industrial automation, maintenance technicians handle CPU modules, communication cards, and HMI touchscreens daily. Without proper grounding, each touch transfers static charge to sensitive circuitry. The component may appear functional initially but fails prematurely in the field.

Schneider Electric M340 BMXP342000 processors and Allen-Bradley 1756-L75 ControlLogix processors both contain MOSFET gates vulnerable to ESD. The damage manifests as intermittent communication drops, corrupted tag values, or complete processor lockup during runtime. Technicians often misdiagnose these failures as software bugs or power supply issues.

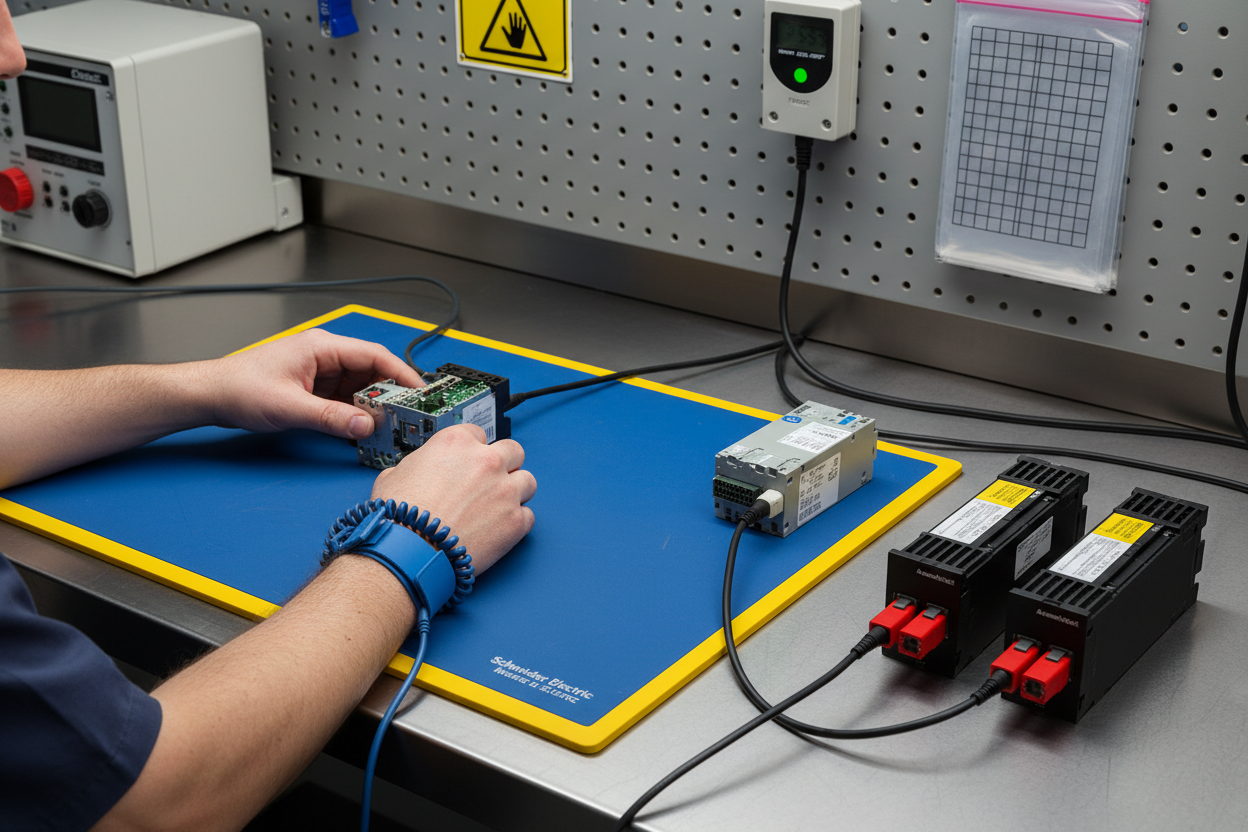

Step 1: Establish a Grounded ESD Workstation

Set up an ESD-safe workstation before touching any PLC component. Place an ESD mat on the workbench surface. Connect the mat to a verified earth ground via a 1-megohm resistor. The resistor limits current during accidental contact with live voltage. It prevents a safety hazard while still providing a discharge path for static.

Verify the ground connection with a digital multimeter. Set the meter to continuity mode. Place one probe on the mat surface and the other on the building earth ground (a metal water pipe or properly bonded ground bus). The reading must fall below 2 ohms. If the reading is higher, inspect the ground wire connection and the resistor.

Keep insulators away from the workstation. Common items like plastic cups, Styrofoam packaging, and synthetic clothing generate static charge. Place them at least 12 inches from any electronic component. Use only ESD-safe packaging materials for storing spare modules.

Step 2: Select and Inspect the Wrist Strap

Choose a wrist strap with carbon fiber or silver-coated conductive threads. These materials maintain a contact resistance below 1 megohm. Avoid stainless steel expandable bands. They provide inconsistent contact with dry skin and generate false continuity readings.

Inspect the strap before each use. Check for frayed conductive threads, cracks in the plastic cuff, and damage to the coiled cord. Replace the strap immediately if any defect is visible. A broken thread creates an open circuit. The wrist strap appears to be on, but no grounding path exists.

Adjust the strap for snug contact against bare skin. The conductive surface must touch the wrist, not just rest on top of it. Loose straps lose contact when the arm moves. The ideal fit allows one finger to slide under the band.

Step 3: Verify Wrist Strap Functionality with a Tester

Use a calibrated wrist strap tester before every maintenance session. Wear the strap and clip the tester lead to the ground cord. Press the test button. The tester applies a small current through the strap and measures the resistance.

Acceptable range: 750 kilohms to 10 megohms. Values below 750k indicate a short circuit path (dangerous if the technician contacts live voltage). Values above 10M indicate an open or high-resistance path (no ESD protection).

Log each test result. Record the date, technician name, strap serial number, and pass/fail status. In a Schneider M340 maintenance environment, this log supports IEC 62443 security compliance audits.

For Allen-Bradley ControlLogix 1756 chassis work, test the wrist strap at the beginning of each shift. Technicians handling 1756-EN2T EtherNet/IP cards must be particularly careful. These communication modules have exposed traces near the RJ45 connectors. ESD damage to these traces causes network packet loss and intermittent CIP connection failures.

Step 4: Handle and Store Modules Properly

Hold PLC modules by the edges only. Never touch the component side of circuit boards. The gold-plated connector pins are especially sensitive. Oils from skin cause corrosion over time. ESD damage causes immediate or latent failure.

Place removed modules on the grounded ESD mat immediately. If you need to carry a module to another location, keep it in an ESD shielding bag. These bags have a metallic layer that creates a Faraday cage. The charge distributes across the outer surface, leaving the inner components protected.

For Schneider M340 discrete input modules, handle with extra care. These modules process 24V DC field signals. The input circuitry includes clamping diodes and optocouplers. ESD damage to these components causes phantom inputs — the HMI shows field devices activated when no physical signal exists.

Store spare modules in anti-static bins with conductive foam inserts. Label each bin with the module part number and the date received. Implement a first-in-first-out rotation policy. Modules sitting in storage for years may develop issues from humidity ingress and static accumulation.

Conclusion and Action Advice

ESD protection follows four rules. First, ground the workstation with a verified mat connection below 2 ohms. Second, inspect wrist straps before every use and replace damaged units immediately. Third, test wrist straps with a calibrated tester — accept only readings between 750k and 10M. Fourth, store modules in ESD shielding bags and conductive foam bins.

In Schneider M340 and Allen-Bradley ControlLogix environments, train all technicians on these procedures before granting maintenance access. Post ESD warning signs at cabinet entry points. Keep wrist strap testers at each workstation. Schedule monthly calibration of all test equipment.

When an intermittent PLC fault occurs, consider ESD damage as a root cause. Check the module under a magnifying glass for burn marks near the IC pins. If damage is visible, replace the module and review the maintenance ESD procedures with the team. Prevention costs less than unplanned downtime.
