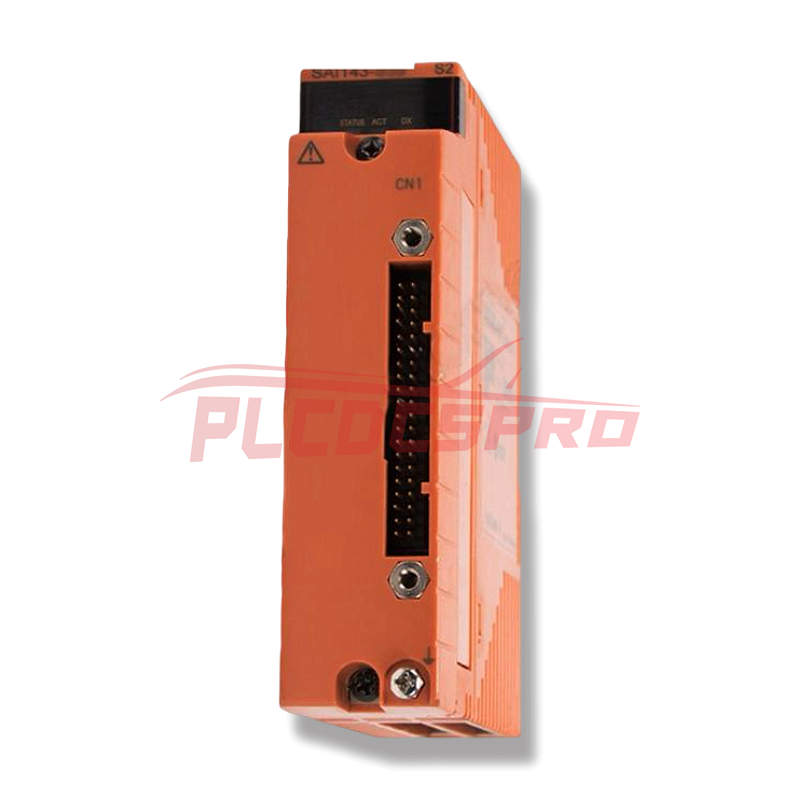

The Yokogawa SAI143-S63 is a 16-channel analog input module designed for use in CENTUM VP and ProSafe-RS systems. It supports isolated 4–20 mA current inputs and is suitable for both standard and safety instrumented applications.
Technical Specifications
Model
SAI143-S63
Signal Type
Analog current input (4–20 mA)
Number of Channels
16 isolated channels
Input Range
4–20 mA nominal, 0–25 mA allowable
Accuracy
±16 µA (within 1–23 mA range)
Input Impedance
250 Ω (powered), ≥500 kΩ (unpowered)
Update Cycle
40 ms
Isolation
Channel-to-channel and channel-to-ground
Dimensions
130 × 107.5 × 32.8 mm
Weight
0.39 kg
System Compatibility
CENTUM VP, ProSafe-RS
Installation Notes
Mount in designated slot within I/O rack or base unit
Use appropriate terminal blocks for signal wiring
Ensure grounding and shielding per Yokogawa standards
Avoid connection of Zener barriers; use isolation barriers for IS systems
Compatible with dual-redundant configurations
Ordering Information
Suffix Code
Description
S
Standard type
6
With signal cable interface adapter
3
With ISA Standard G3 and extended temperature (-20 to 70 °C)
