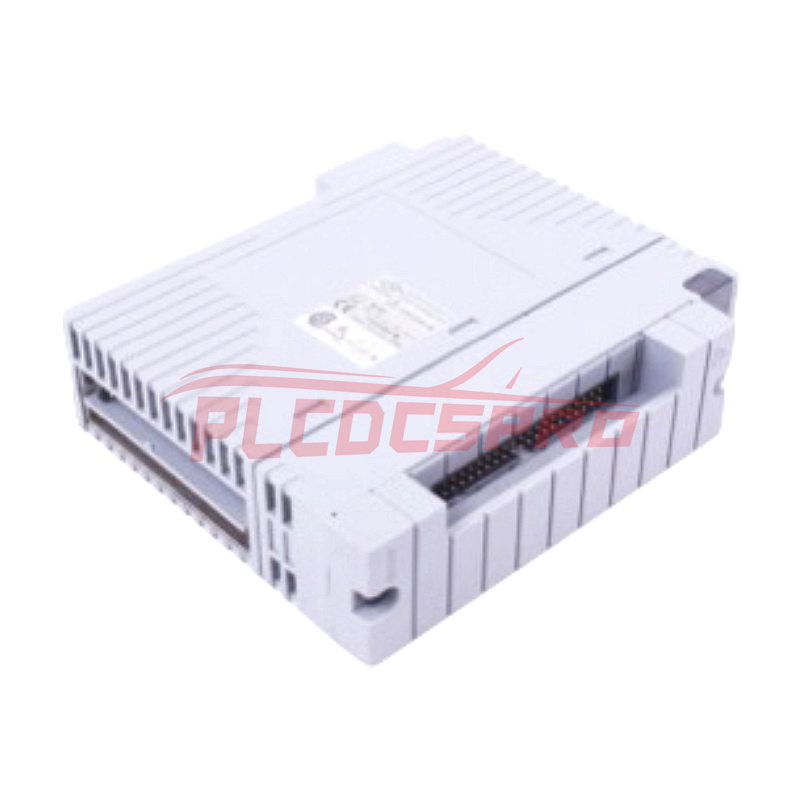

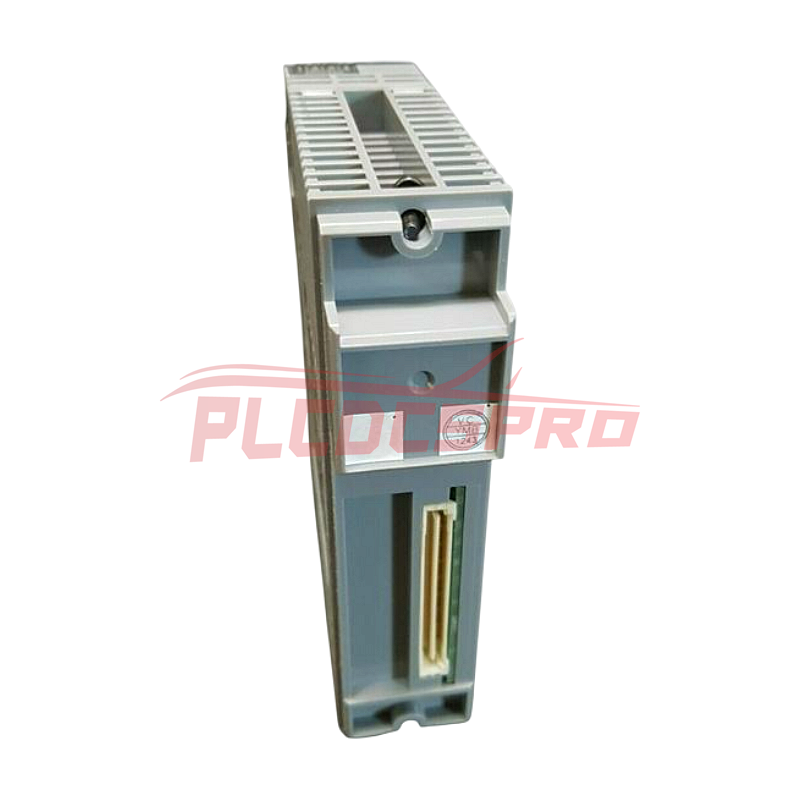

The Yokogawa AAI135-S00 is an 8-channel analog input module designed for use in CENTUM CS 3000 / VP distributed control systems. It accepts 4–20 mA DC current signals with individual channel isolation and high-precision signal acquisition, making it suitable for critical applications in process automation environments. The module supports HART communication and is compatible with redundant system architectures.
Technical Specifications
Function: Analog Input Module
Input Signal: 4–20 mA DC
Number of Channels: 8 (individually isolated)
Input Resistance:
Power ON: 290–450 Ω (current-dependent)
Power OFF: ≥500 kΩ
Allowable Input Current: 25 mA max
Accuracy: ±16 µA
Data Update Period: 10 ms
Withstanding Voltage: 500 V AC (1 minute, input-to-system and channel-to-channel)
Transmitter Power Supply:
≥15.0 V @ 20 mA
≤29.3 V @ 0 mA
Temperature Drift: ±16 µA per 10 °C
Power Consumption:
360 mA @ 5 V DC
450 mA @ 24 V DC
Mounting: ESB/ER bus node units
External Connection: Pressure clamp terminal, MIL connector, KS cable
Weight: 0.3 kg
RoHS Compliance: Not compliant (requires isolation barrier in hazardous areas)
Functional Highlights
Stable and accurate analog signal acquisition
Channel-to-channel and system isolation for high signal integrity
Supports HART communication (with EB401 firmware rev. 2 or later)
Suitable for use in intrinsically safe systems when paired with isolation barriers
Designed for harsh industrial environments and critical process applications
