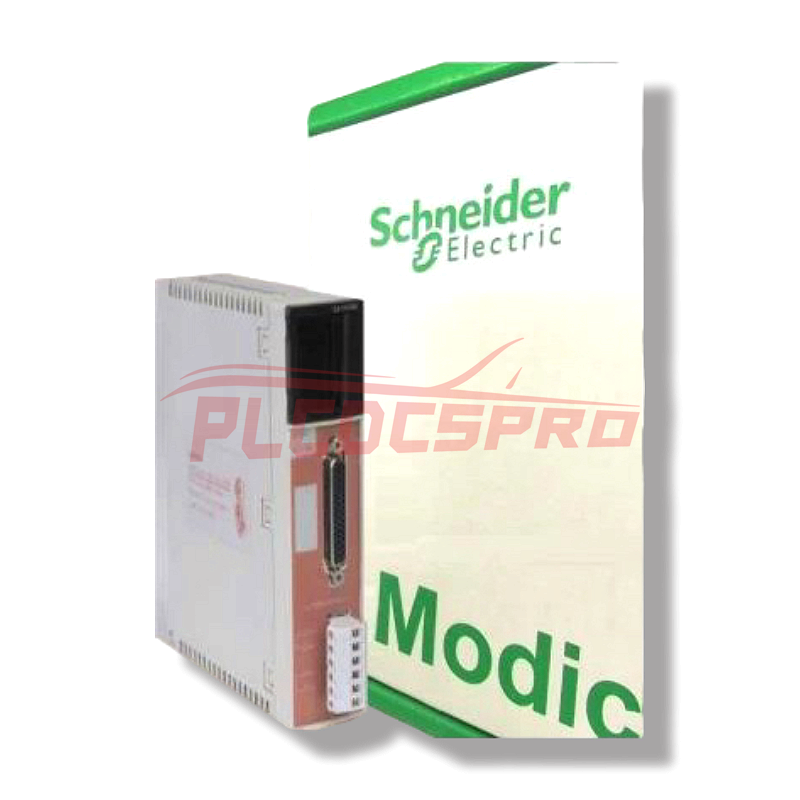

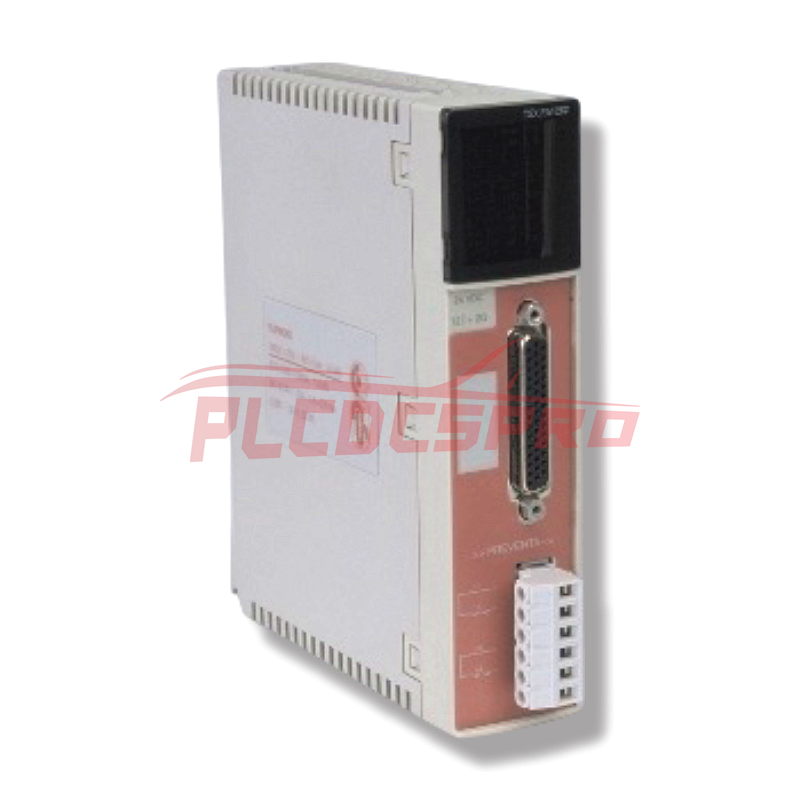

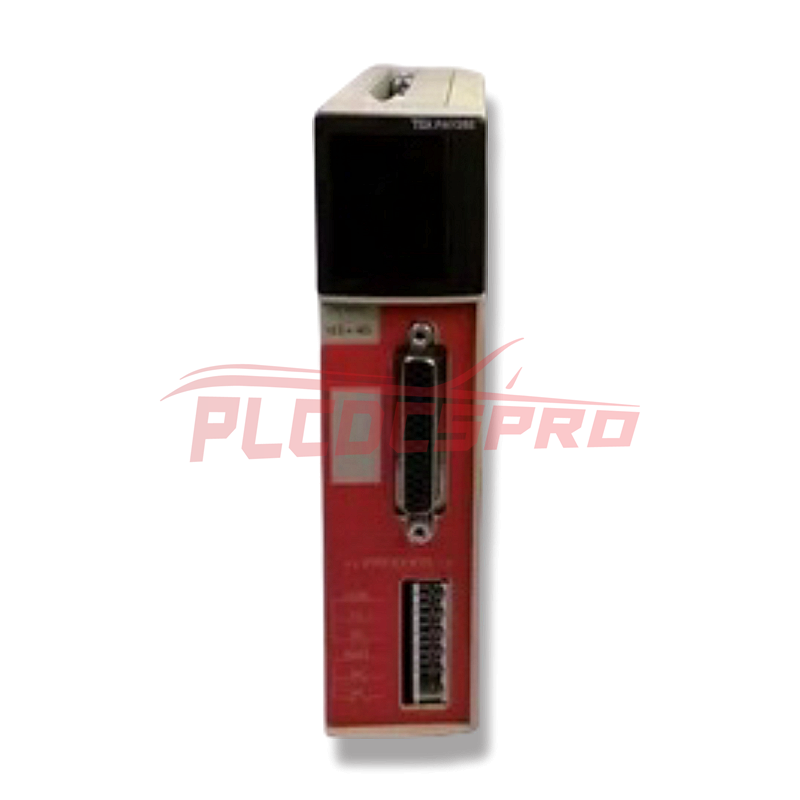

The Schneider Electric TSXPAY282 is a Preventa safety module designed for use within the Modicon Premium automation platform. It provides safety-related control functions such as emergency stop monitoring and feedback loop validation. Operating at 24 V DC, the module supports up to 24 discrete inputs and 4 safety relay outputs, making it suitable for high-integrity safety applications.
Technical Specifications
Product Type: Preventa safety module
Rated Supply Voltage: 24 V DC
Voltage Range: 19.2 to 30 V DC
Power Dissipation: < 5 W
Input Types:
Emergency stop or limit switch inputs (12 channels)
Feedback loop input
Reset pushbutton input
Monitoring input
Double or single contact selection input
Input Logic: Positive (IEC 1131 Type 1)
Output Types: 4 NO safety relay outputs (gold-plated, volt-free)
Output Voltage Range: 17 to 127 V DC / 19 to 250 V AC
Output Power Ratings:
60 W (DC-13, 24 V)
120 VA (AC-15, 48 V)
280 VA (AC-15, 110 V)
550 VA (AC-15, 220 V)
Conventional Thermal Current: ≤ 2.5 A
Minimum Output Current: 30 mA
Response Time: < 12 ms
Isolation Ratings:
Input to earth: 500 Vrms
Output to earth: 1500 Vrms
Internal isolation: 4000 V
Local Signaling: 28 diagnostic LEDs
Electrical Connections:
Removable screw terminal block (6 pins)
SUB-D 44-pin connector for safety system interface
