TSXASY800 | Schneider TSX Modicon 8 Channel Analog Output Module
No reviews
Sku:TSXASY800
Country Of Origin: France
Vendor: Schneider
Type: Analog Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

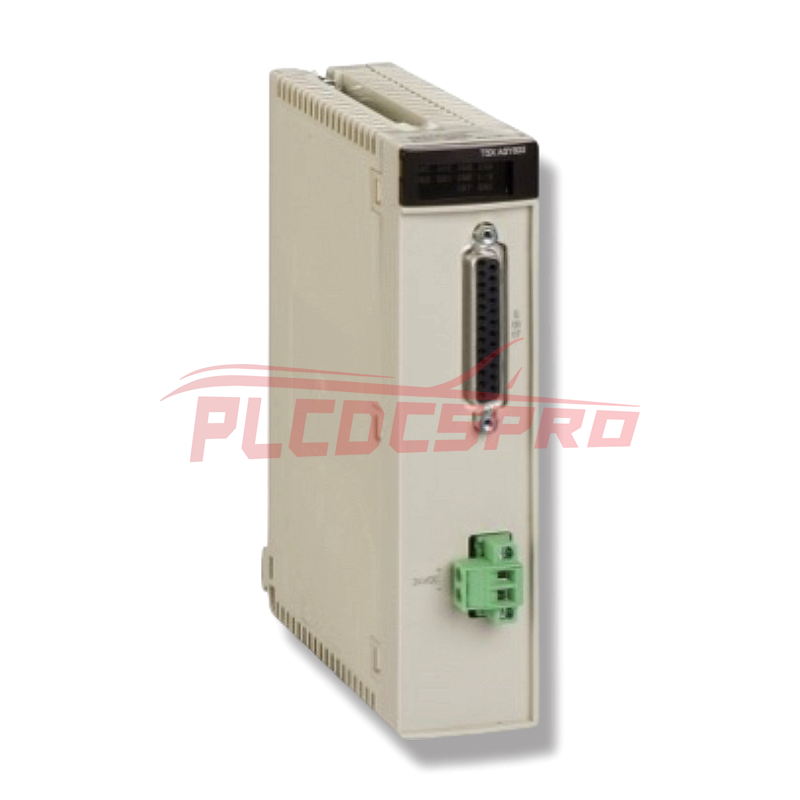

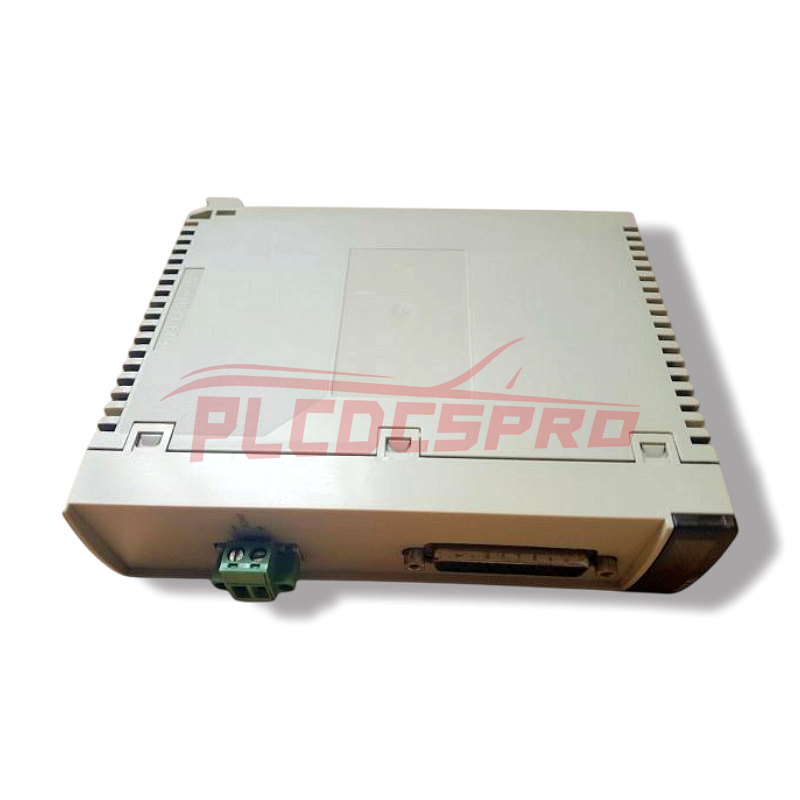

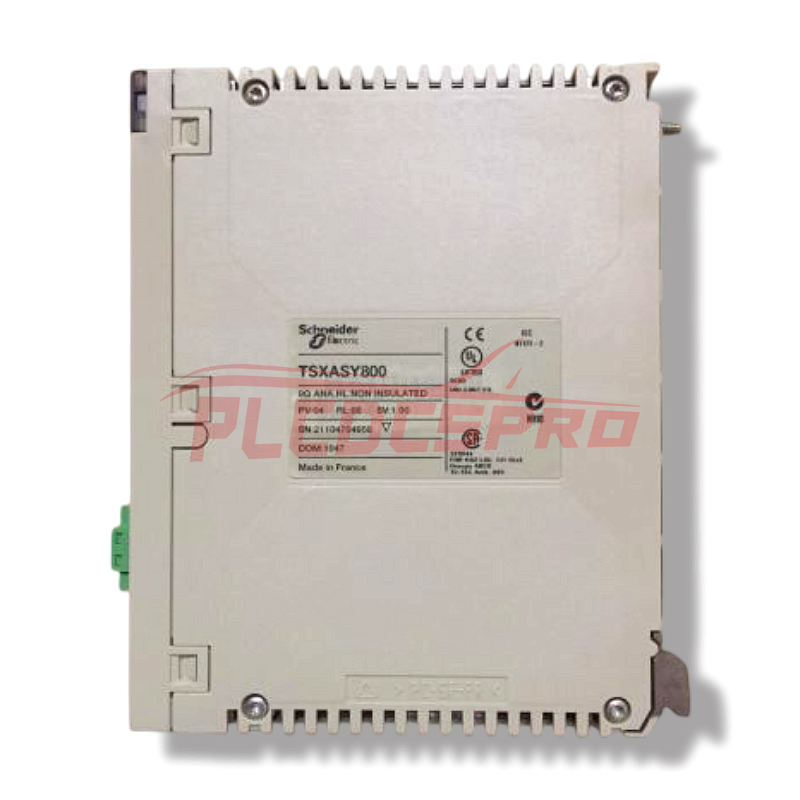

Standard-format analog output module for Modicon Premium PLC systems. Provides eight high-level analog outputs with configurable voltage and current ranges. Designed for precise signal control in industrial automation environments requiring fast conversion and robust isolation.
Technical Specifications
Catalog Number: TSXASY800
Product Range: Modicon Premium
Analog Output Channels: 8
Output Types:
Voltage: ±10 V
Current: 0…20 mA, 4…20 mA
Analog/Digital Conversion: 13 bits + sign
Conversion Time: 5 ms
Measurement Resolution:
1.28 mV @ ±10 V
2.56 µA @ 0…20 mA / 4…20 mA
Measurement Error @ 25°C:
±10 V: 0.14% full scale
0…20 mA: 0.21% full scale
4…20 mA: 0.21% full scale
Measurement Error @ 0–60°C:
±10 V: 0.28–0.52% full scale
0…20 mA: 0.52% full scale
4…20 mA: 0.52% full scale
Electrical Connection: 1 × SUB-D 25 connector
Channel Isolation: Common point
Bus Isolation: 1000 Vrms
Ground Isolation: 1000 Vrms
Protection Features:
Short-circuit protection
Overload protection
Output Voltage Limit: ≤30 V
Load Impedance:
<600 Ω @ 0…20 mA / 4…20 mA
200 mA @ 5 VDC
300 mA @ 24 VDC
Module Format: Standard
Weight: 0.46 kg
Operating Temperature: 0°C to +60°C
Storage Temperature: –25°C to +70°C
Humidity:
Operation: 10–95% RH non-condensing
Storage: 5–95% RH non-condensing
Altitude: Up to 2000 m
Protection Rating: IP20
Pollution Degree: 2
Certifications: CE, UL 508, CSA C22.2 No. 142/213, IEC 61131-2, ATEX, RMRS, BV, RINA, GL, ABS, DNV, LR
Country of Origin: France
Features
Eight configurable analog outputs for voltage and current
High-resolution 13-bit conversion for precise control
Fast 5 ms conversion time for real-time applications
Robust isolation between channels, bus, and ground
Integrated protection against overload and short circuits
SUB-D 25 connector for simplified wiring
Marine and hazardous area certifications
Compatible with Modicon Premium racks and CPUs
Supports external 24 VDC power for expanded rack capacity
