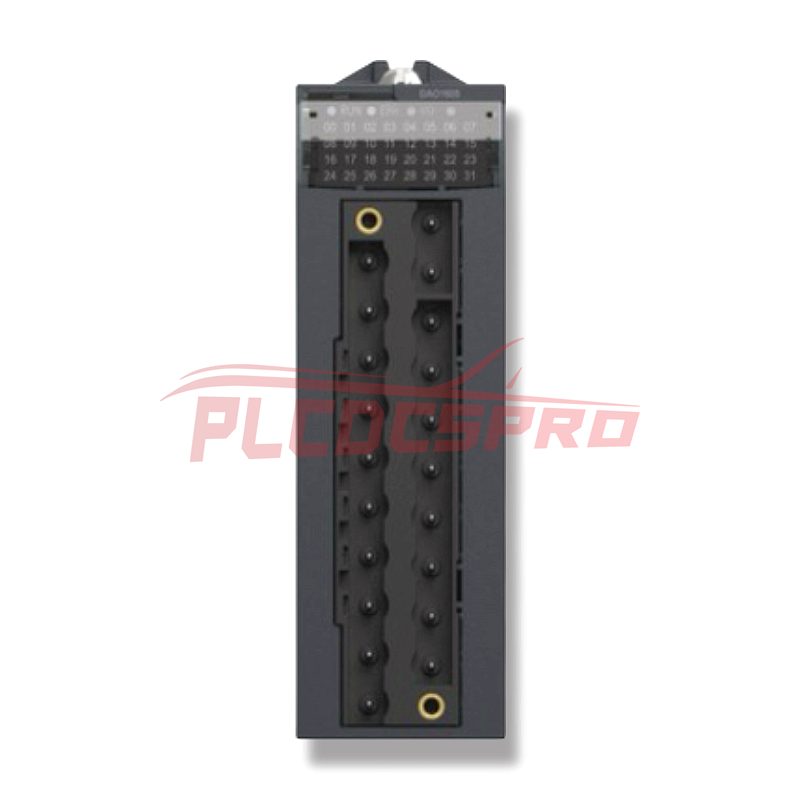

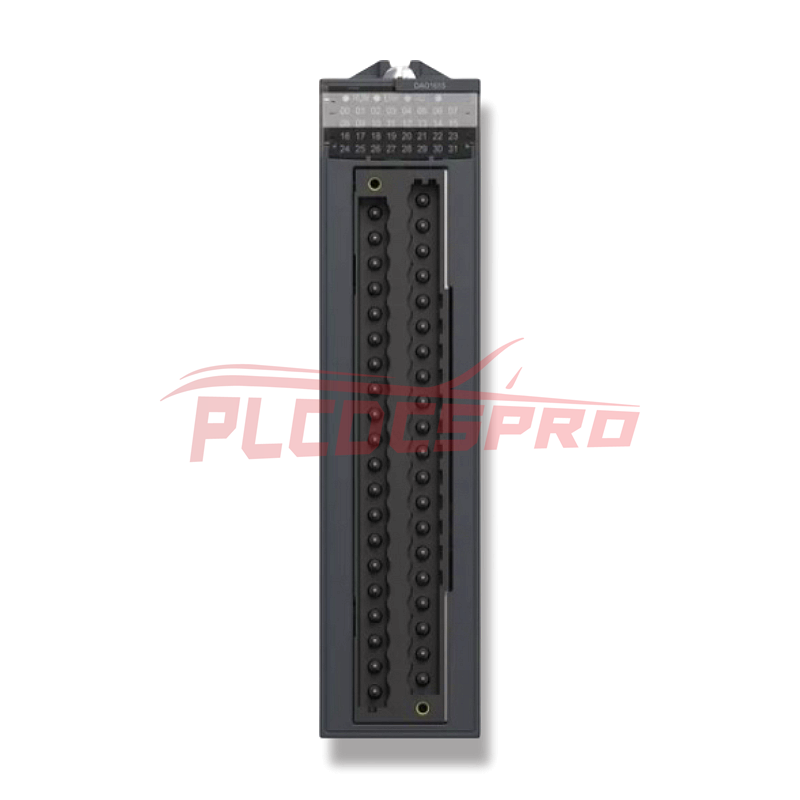

The BMXDAO1605 is a discrete output module from Schneider Electric’s Modicon X80 series. It features 16 triac outputs for reliable AC load control and is compatible with Modicon M340 and M580 automation platforms. Designed for industrial environments, this module offers high-performance switching and robust diagnostics.
Technical Specifications
Output Channels: 16
Output Type: Triac (AC switching)
Output Voltage Range: 100–240 V AC (operational), 85–288 V AC (absolute)
Output Current per Channel: ≤ 0.6 A
Output Current per Common: ≤ 2.4 A
Output Current Limits: 0.025–4.8 A
Leakage Current:
≤ 1.5 mA @ 120 V AC
≤ 3 mA @ 240 V AC
Voltage Drop (ON State): ≤ 1.5 V
Response Time: Activation/Deactivation ≤ 1.011 ms
Inrush Current: ≤ 20 A
Insulation Resistance: ≥ 10 MΩ @ 500 V DC
Dielectric Strength: 2830 V AC @ 50/60 Hz for 1 min
Protection: External fast-blow fuse (3 A per 4-channel group)
Typical Consumption: 79–100 mA @ 3.3 V DC
Indicators & Diagnostics
RUN LED (Green): Module operating
Channel LEDs (Green): Per-channel diagnostics
ERR LED (Red): Module error
I/O LED (Red): I/O fault
Environmental Ratings
Operating Temperature: 0°C to +60°C
Storage Temperature: –40°C to +85°C
Humidity: 5–95% RH (non-condensing)
Altitude:
0–2000 m: Full performance
2000–5000 m: Derating required
Vibration Resistance: 3 gn
Shock Resistance: 30 gn
IP Rating: IP20
Certifications & Standards
Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
