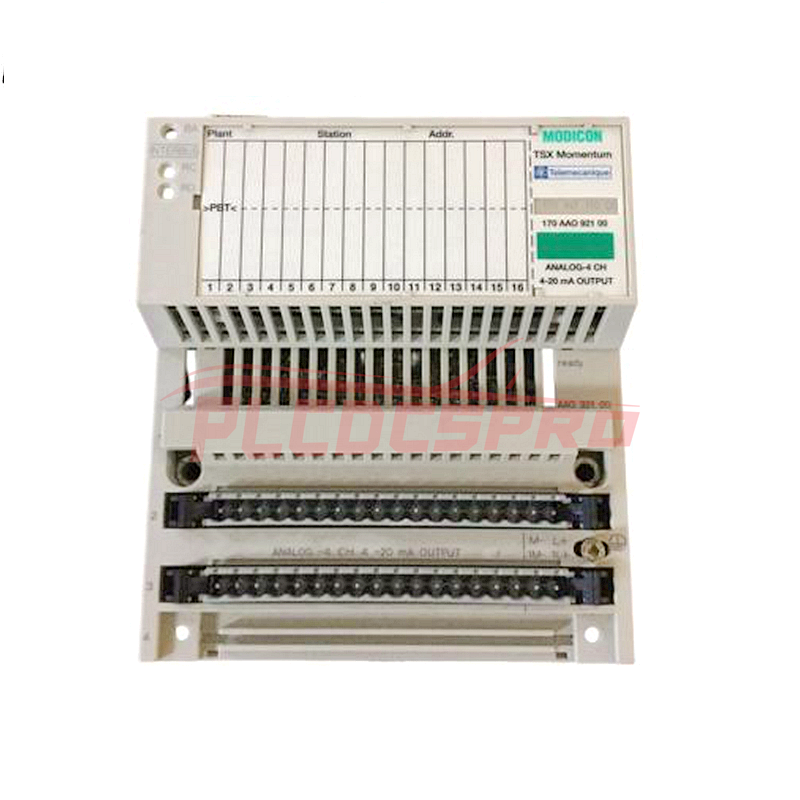

Schneider Electric | 170AAO92100 | Distributed Analog Output Module
Sku:170AAO92100
Country Of Origin: France
Vendor: Schneider
Type: Analog Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Manufacturer: Schneider
Product No.: 170AAO92100
This analog output base is part of the Modicon Momentum range, tailored for distributed control architecture. With 4 outputs offering a full 16-bit signed resolution, it supports analog output ranges from ±10V to 4mA to 20mA. Featuring isolation between channels and ground at 500V AC, it ensures safe and reliable operation. Equipped with 4 LEDs for channel status signaling, it provides clear feedback on output status. Its compact dimensions and wall-mount suitability make it ideal for various applications, including infrastructures, energy, material handling, and simple machine control.
Specifications:
Product Type: Analog output base
Number of Outputs: 4
Data Format: Full 16 bits signed
Analog Output Range:
±10 V (12 bits + sign, ≥ 1 kOhm)
4...20 mA (12 bits + sign, ≤ 0.6 kOhm)
Maximum Load Capacitance: 1 µF
Absolute Accuracy Error:
±0.2% of full scale for ±10 V (77 °F/25 °C)
±0.25% of full scale for ±10 V (140 °F/60 °C)
±0.4% of full scale for 4...20 mA (77 °F/25 °C)
±0.5% of full scale for 4...20 mA (140 °F/60 °C)
Temperature Drift:
10 %oFS/°C for ±10 V (140 °F/60 °C)
30 %oFS/°C for 4...20 mA (140 °F/60 °C)
Update Time: 2 ms
Fail State:
Hold
Reset to full scale
Reset to zero
Isolation Between Channels and Ground: 500 V AC for 1 minute
Maximum Power Dissipation: 8.5 W
Protection Type: Internal 2 A slow-blow
Output Short-Circuit Protection: With in-voltage circuit
