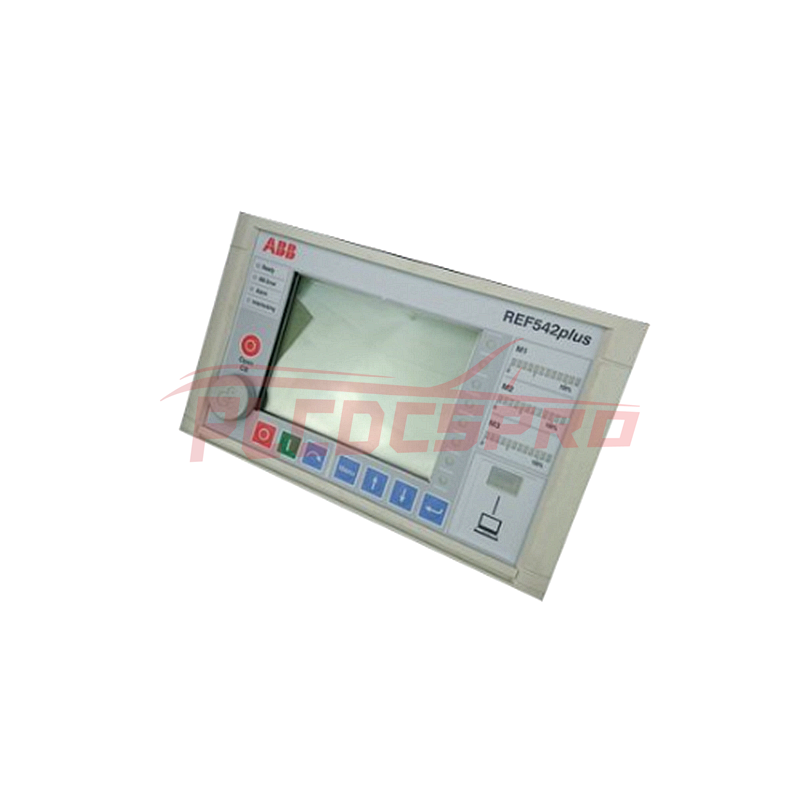

REF542 PLUS | ABB Multifunction Protection and Switchbay Control Unit

Sku: REF542PLUS
Country Of Origin: Sweden
Vendor: ABB
Type: Relay

In stock!

100% Original and Authentic

100% Brand New, Ready to ship

Support Refund, 7X24h Service

Product description

Overview

The ABB REF 542plus is a multifunctional protection and switchbay control unit tailored for medium-voltage systems. It combines protection, measurement, control, and communication in a single device, reducing system complexity and cost. Built on a modular platform, it supports flexible configurations and integrates easily into substation automation and smart grid environments.

Technical Specifications

Analog Input Channels

Parameter	Specification
Current Input	Rated 1A or 5A
Voltage Input	Rated 100V (supports 110V)
Frequency	50/60 Hz
Thermal Capacity (Current)	250 In peak, 100 In for 1s
Thermal Capacity (Voltage)	2 Un / √3 continuous
Consumption (Current)	≤ 0.1 VA at In
Consumption (Voltage)	≤ 0.25 VA at Un

Binary Inputs & Outputs

Relay Type	Inputs	Outputs	Voltage	Load Current
Mechanical Relays	14	6 Power, 2 Signal, 1 Watchdog	250V AC/DC	12A (power), 2A (signal)
Static Relays	14	4 Power, 2 Signal, 1 Watchdog	48–265V DC	12A (power), 0.3A (signal)

Communication Interfaces

Interface	Type
HMI Control Unit	RS-232 (optical/electrical), RS-485
Central Unit	RS-485 (to HMI), RS-232 (firmware)
Optional Protocols	IEC 61850, MODBUS RTU (dual), SPA BUS, LON, IEC 60870-5-103

Power Supply

Unit	Voltage Range	Power Consumption
Central Unit	110V/220V DC (±15%), or 48–220V DC	≤18 W
HMI Control Unit	48–110V DC or 110–220V DC (±15%)	≤6 W

Environmental & Enclosure Ratings

Parameter	Specification
Operating Temp	-5°C to +55°C
Storage Temp	-20°C to +70°C
Humidity	Up to 95% (non-cond.)
Central Unit Enclosure	IP20
HMI (Front/Rear)	IP54 / IP22

Applications

Medium-voltage substations
Smart grid and distribution automation
Industrial and utility power networks
Compact and scalable protection and control in retrofit or new installations
