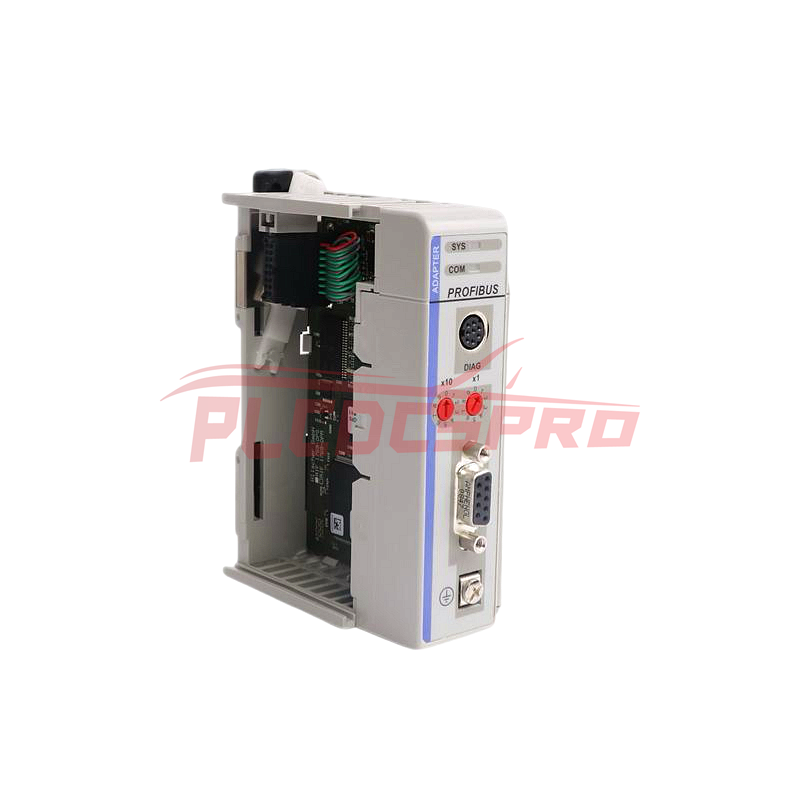

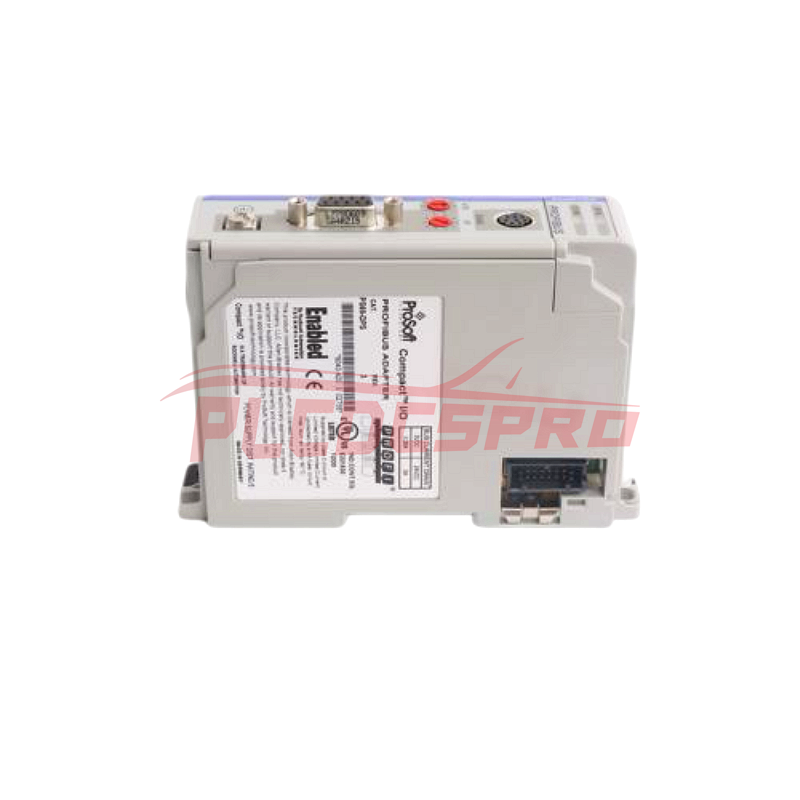

PS69-DPS | ProSoft PS69 PROFIBUS DP-V1 Slave Communication Module
Sku:PS69-DPS
Country Of Origin: USA
Vendor: Allen-Bradley
Type: Communication Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The ProSoft PS69-DPS is a PROFIBUS DP-V1 Slave Communication Module designed for Rockwell Automation CompactLogix™ controllers. It enables seamless integration with PROFIBUS DP networks, offering efficient data exchange between CompactLogix controllers and PROFIBUS masters.
Features
Supports PROFIBUS DPV0 and DPV1 protocols
Up to 244 bytes of input and output data
Rotary switches for easy PROFIBUS address configuration
Explicit ladder logic CIP message blocks for diagnostics
LED indicators for communication and device status
CompactLogix and MicroLogix 1500 LRP compatibility
GSD file provided for third-party configuration
Technical Specifications
Communication Interface
Protocol: PROFIBUS DP Slave
Baud Rate: Up to 12 Mbps
DPV1 Services:Read/Write Class 1, Alarm
Input Data:Max. 244 bytes
Output Data:Max. 244 bytes
Hardware Specifications
Parameter
Specification
Processor
EC1-160P with integrated ASPC2
PROFIBUS Interface
RS-485, max. 12 Mbps, potential-free (EN 50170)
Diagnostic Interface
RS-232, PS/2 Mini DIN female connector, 9600 Baud, non-isolated
Power Supply
+5V DC ±5%, 260mA
Max. Distance Rating
Max. 6 modules to the power supply module
Dimensions
Standard 1769 single-slot module
Environmental Ratings
Parameter
Specification
Operating Temperature
0°C to 60°C (32°F to 140°F)
Relative Humidity
5% to 95% RH, non-condensing
Shock Resistance
15G operational, 30G non-operational
Vibration Resistance
5G from 10 Hz to 150 Hz
Certifications & Compliance
UL/CE certified, UL 508 listed
PROFIBUS conformance certified
EMC Compliance:
Burst: EN 61000-4-4, 2 kV, 5 kHz
Surge: EN 61000-4-5, 2 kV common mode, 1 kV differential mode
