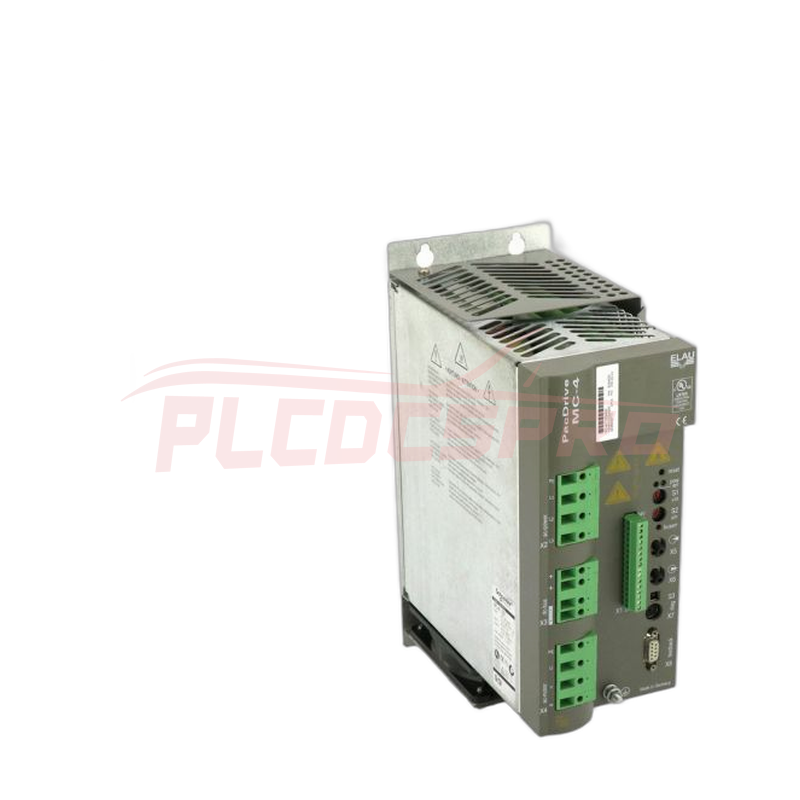

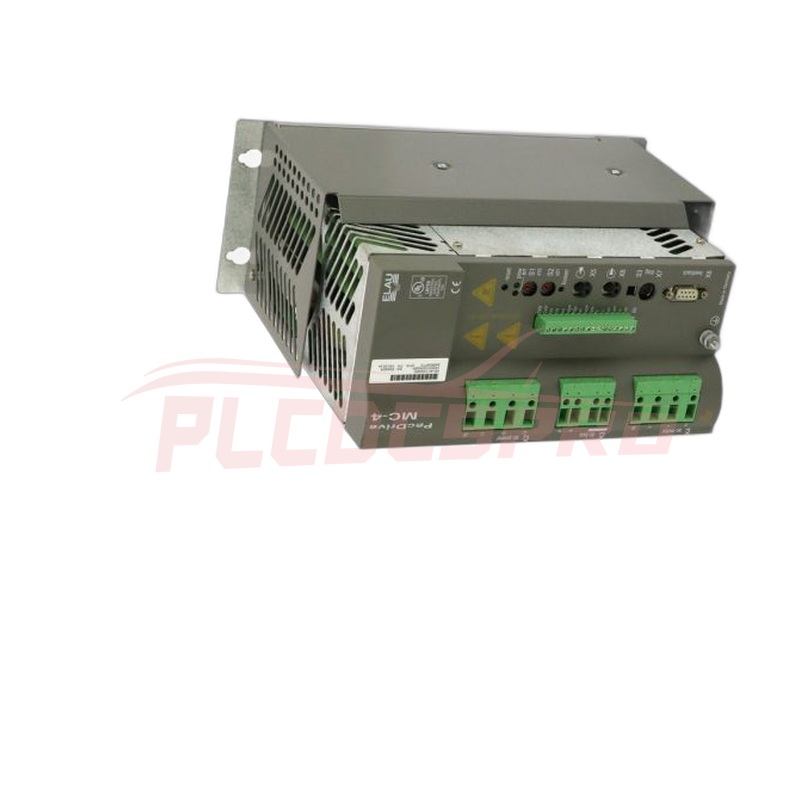

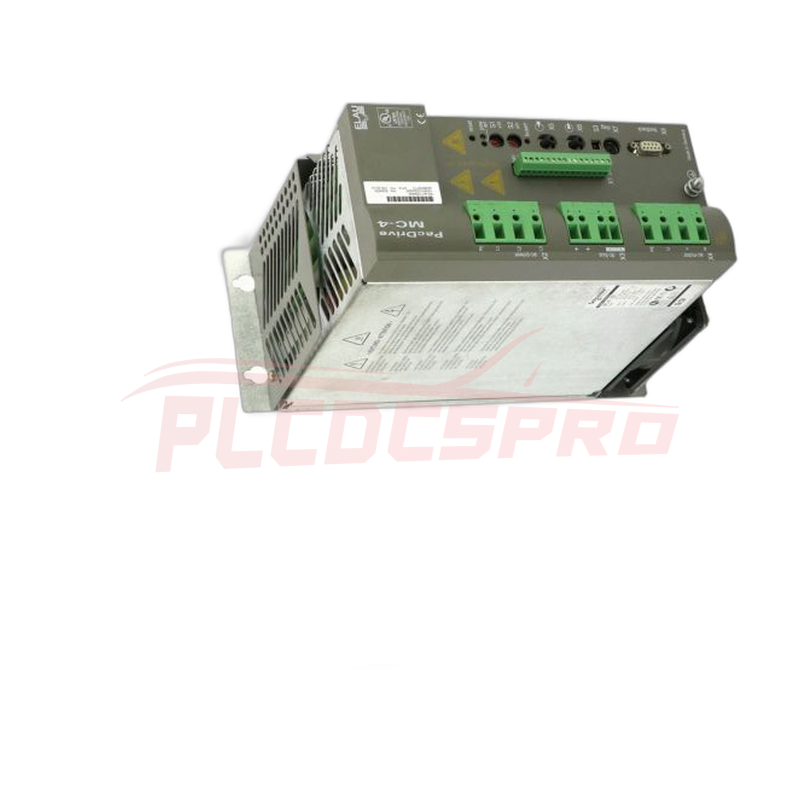

The Schneider Electric (ELAU) MC-4/11/22/400 is a high-power digital servo drive from the PacDrive MC-4 series. Rated at 22 A continuous, it delivers precise torque, speed and position control for larger synchronous servo motors in synchronized multi-axis systems.
Core Specs
Rated continuous current: 22 A rms
Peak current (1 s): 55 A rms
Supply voltage: 3-phase 380–480 V AC (±10 %), 48–62 Hz
Control voltage: 24 V DC (1 A)
Rated power: 15.2 kVA
Output voltage: 0–480 V AC, 0–600 Hz
Cooling: Temperature-controlled fan / forced ventilation
Weight: approx. 6.3 kg
Highlights
High continuous and peak current for demanding motion axes
SERCOS real-time communication for multi-axis synchronization
Integrated digital current, velocity and position loops
Comprehensive protection functions and diagnostic capability
Designed for packaging lines, material handling and high-performance machines
Common Questions
Continuous current? 22 A rms.
Peak current? 55 A for 1 second.
Supply voltage? 3 × 380–480 V AC.
Mounting Steps
Install the drive in a well-ventilated control cabinet observing clearance requirements.
Connect 3-phase mains supply and 24 V DC control power.
Wire motor power cables and feedback device (encoder/resolver).
Integrate the drive into the SERCOS fiber-optic ring.
Commission the axis, set parameters and verify safe operation.
Buying Advice
Choose for higher-power servo applications within PacDrive systems.
Verify motor continuous and peak current against the drive ratings.
Essential spare for machines already equipped with MC-4/11/22/400 drives.
