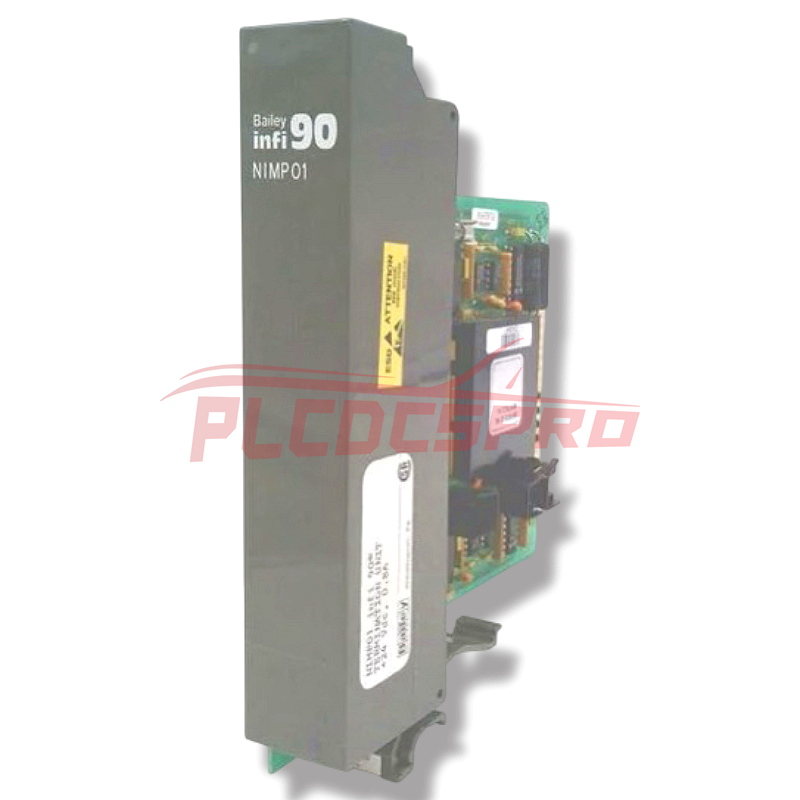

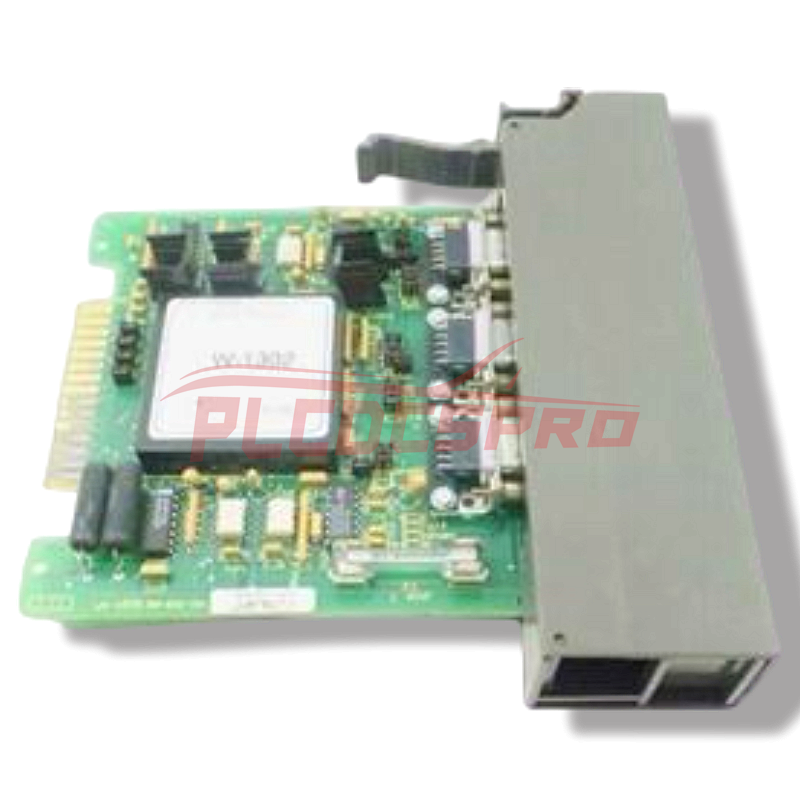

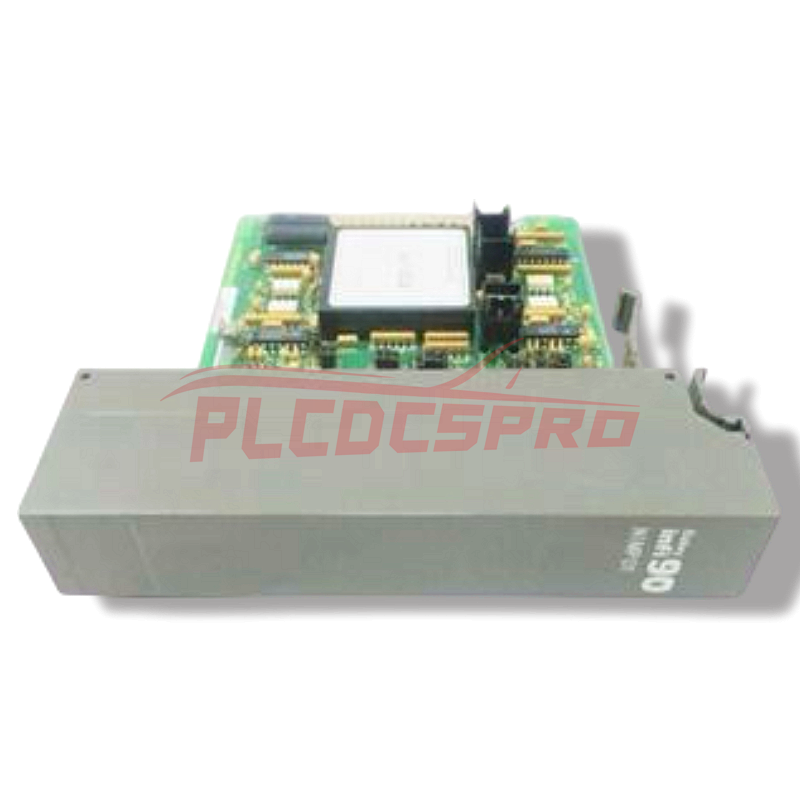

The ABB NIMP01 is a termination module designed for use in Bailey Net 90 and INFI 90 distributed control systems (DCS). It provides critical signal interfacing for multi-function processor modules such as IMMFP01 and IMMFP02, supporting serial communication and redundant processor configurations.
Technical Specifications
System Compatibility: Bailey Net 90, INFI 90
Function: Termination interface for multi-function processor modules
Power Supply: +24 VDC, max 210 mA
Communication Ports:
2 × RS-232-C (jumper-configurable for DTE or DCE)
1 optional RS-485 port
1 control station serial link
Cable Insulation Ratings:
PVC (UL CL2): 80°C @ 300 V
Non-PVC (UL PLTC): 90°C @ 300 V
Mounting: Screw-mounted on field termination panel
Cooling Requirements: Passive (no active cooling needed)
Dimensions: 10.2 × 12.7 × 17.8 cm
Weight: 0.5 kg
Operating Temperature: 0°C to +70°C
Humidity: 5%–90% RH (non-condensing)
Altitude: Up to 3,000 m
Certifications: CSA certified for ordinary locations
Country of Origin: USA, Switzerland, or Finland
Warranty: 12 months
Functional Highlights
Redundant Processor Support: Operates with NIMP02 for dual-processor setups
Serial Link Integration: Interfaces with NICS01 to connect analog/digital control stations
Hot-Swappable: Allows in-service replacement without control interruption
Legacy Compatibility: Interfaces with INFI-NET transfer modules (e.g., INIIT02)
Diagnostic Port: RS-232-C port available for maintenance or configuration
