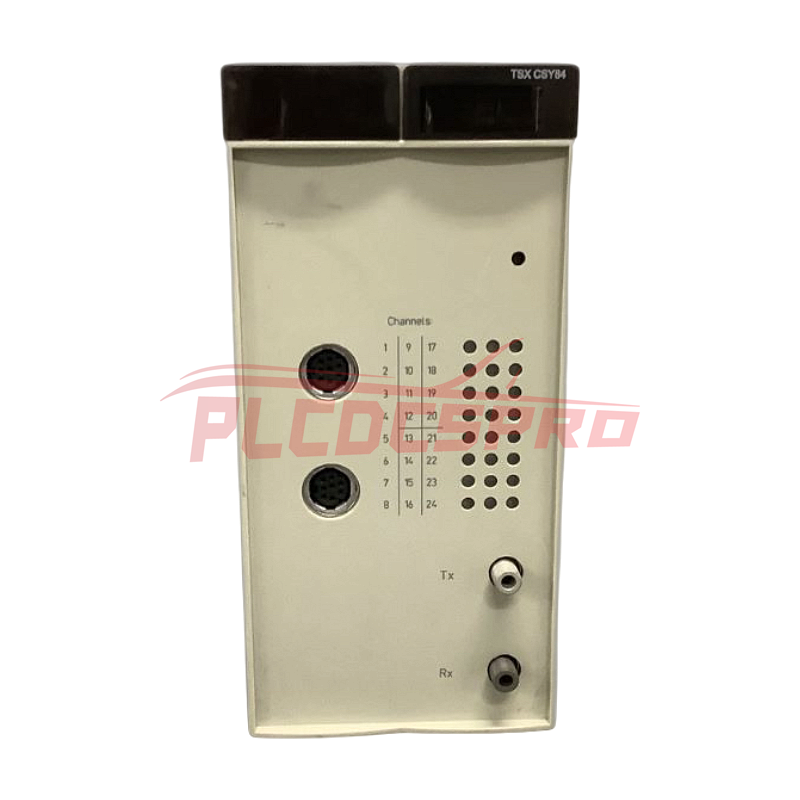

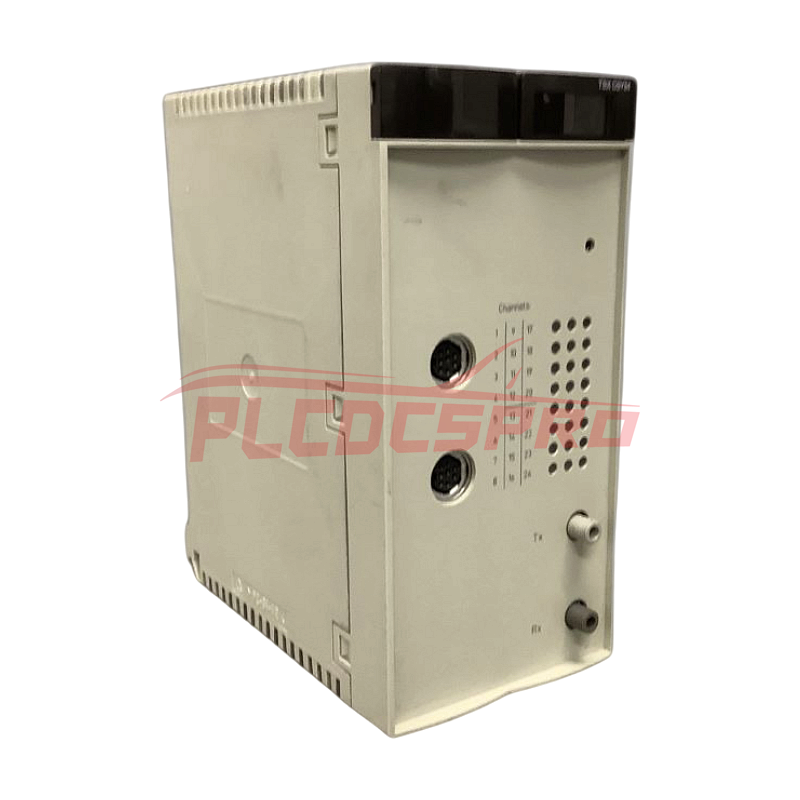

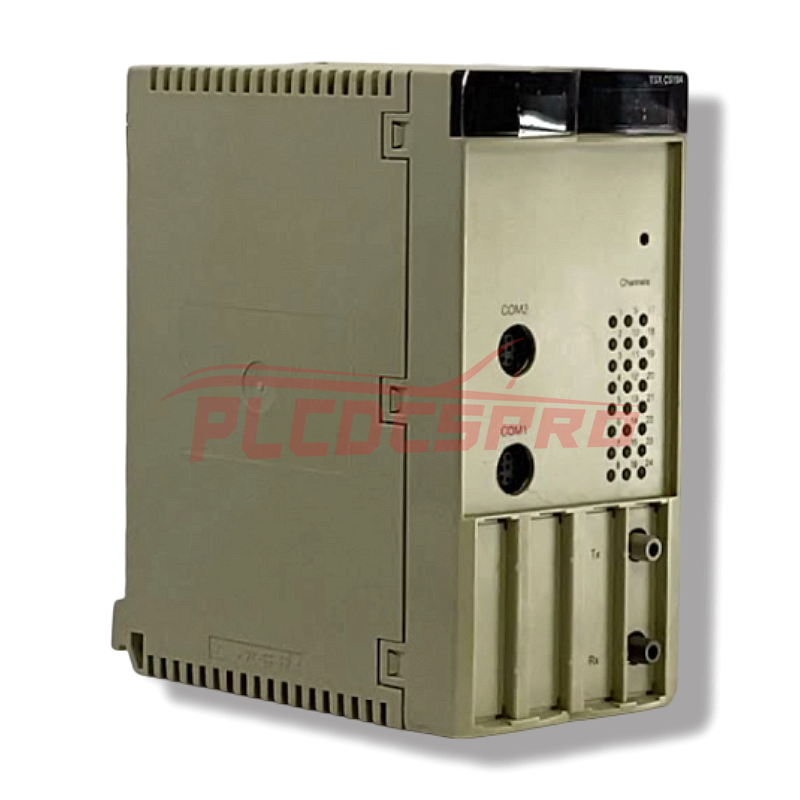

The Schneider Electric TSXCSY84 is a multi-axis motion control module for the Modicon Premium platform. It interfaces with SERCOS 2 digital servo drives via fiber optics, enabling synchronized control of up to eight real axes for high-performance motion applications such as precise coordination, cam profiling, and fast cycle times.
Product Specifications
Platform: Modicon Premium
Communication Protocol: SERCOS 2 (EN/IEC 61491 compliant)
Topology: Ring, fiber optic
Transmission Rate: 4 Mbit/s
Cycle Times:
2 ms (2 or 4 axes)
4 ms (8 axes)
Axis Control:
8 real axes
4 coordinated axes
4 follower axes
4 imaginary axes
4 remote axes
Channels: 32
Path Functions:
Simple linear interpolation
Auxiliary axis following
Cam profile: 7
Fiber Optic Cable Limits:
Glass: ≤ 150 m
Plastic: ≤ 38 m
Segment length: ≤ 100 m
Max segments: 9
Power Consumption:
1800 mA @ 5 V DC
Power dissipation: 9 W
Diagnostics LEDs:
RUN (green): module operating
I/O fault (red): external fault
ERR (red): internal fault
SER (yellow): data transmission
INI (yellow): module reinitializing
24 × green channel diagnostics
Physical:
Weight: 0.52 kg
Dimensions: 9.5 × 18.0 × 26.0 cm
Protection: IP20
Environmental Limits:
Operating Temp: 0–60 °C
Humidity: 10–95% non-condensing
Standards: EN/IEC 61491
Installation Notes
Install in a Modicon Premium rack with proper fiber optic routing.
Use Schneider-certified SERCOS cables and follow EMC grounding practices.
Module initializes automatically on power-up; configure via EcoStruxure Control Expert (Unity Pro).
Ensure correct axis mapping and synchronization parameters before commissioning.
