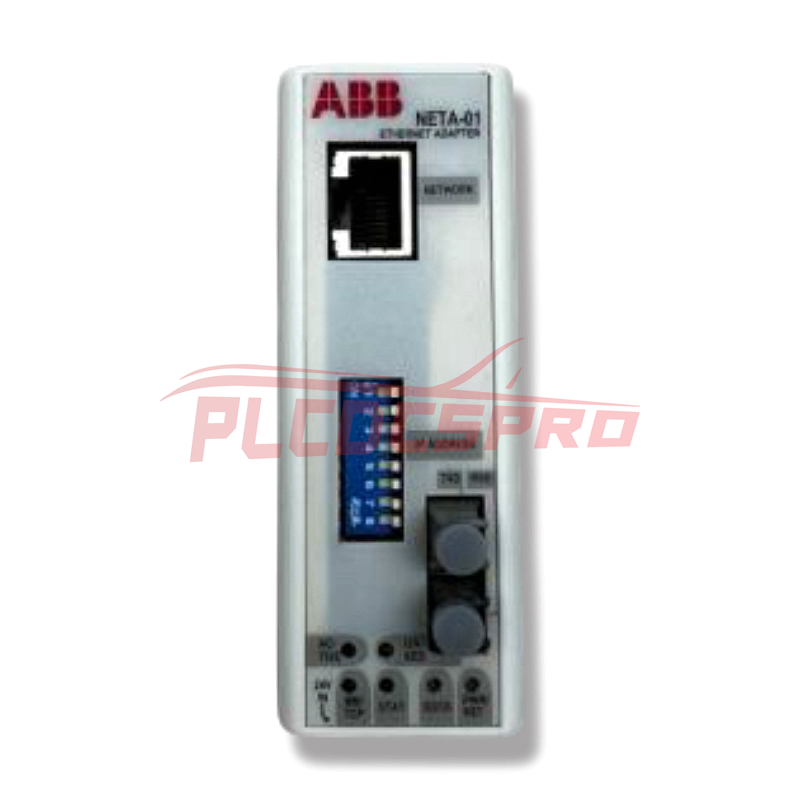

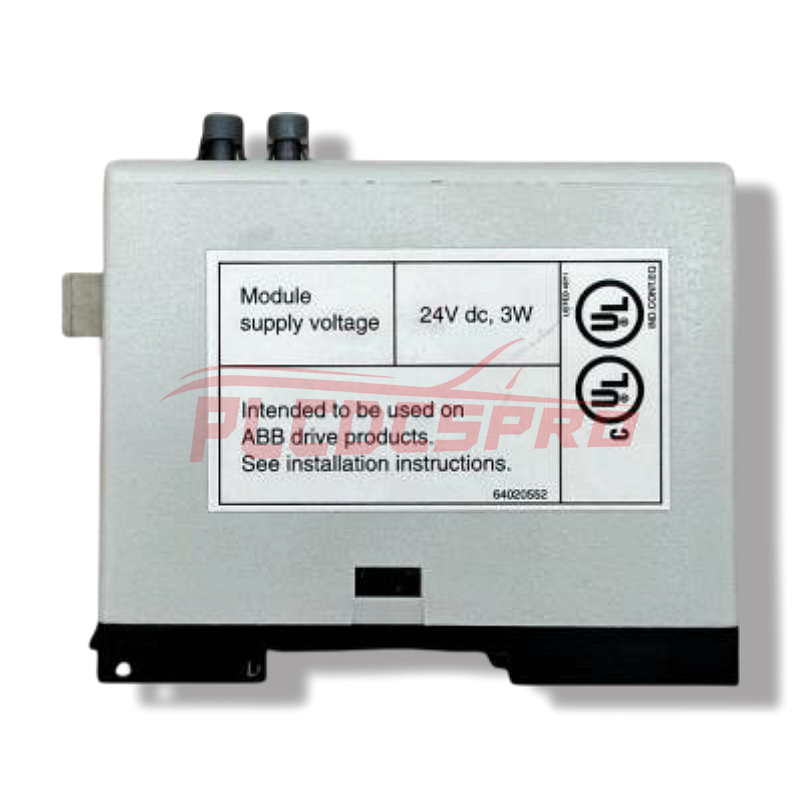

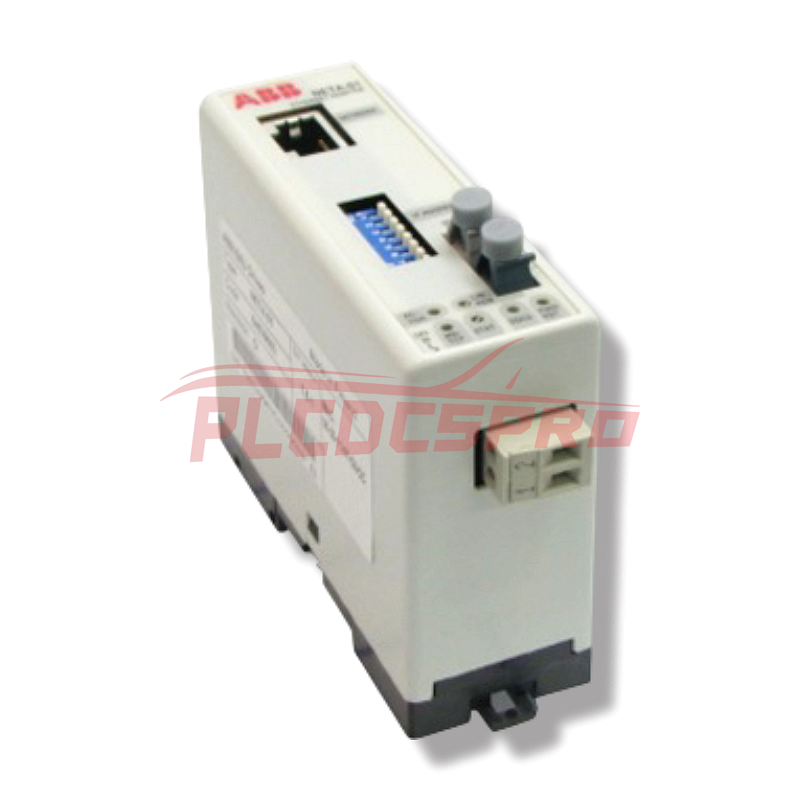

The NETA-01 is an Ethernet adapter module designed for ABB ACS800 drive systems, enabling enhanced remote monitoring, control, and diagnostics over Ethernet networks. Utilizing the Modbus TCP protocol, the module allows seamless integration with automation systems and SCADA platforms, providing improved connectivity and operational transparency for ABB drives.
Technical Specifications
Product ID: 64637193
Model Number: NETA-01 V1.x
Input Voltage: 24 V DC ±10%
Current Consumption: 80 mA @ 24 V DC
Power Consumption: 3.5 W typical
Communication Protocols: Modbus TCP, Ethernet
Data Rate: 10/100 Mbps
Connectors: RJ-45 Ethernet, Light transmitter (grey) and receiver (blue) for drive connection
Mounting: DIN rail (internal or external to drive)
Operating Temperature: -20 to +70 °C
Storage Temperature: -40 to +85 °C
Humidity: 5–95%, non-condensing
Isolation Voltage: 1500 V AC
Protection Class: IP20
Dimensions (L×W×H): 76.5 mm × 35 mm × 93 mm
Weight: 0.466 kg
EMC Compliance: EN 50081-2, EN 50082-2
Country of Origin: Finland / Switzerland
MAC ID Range: 1–254 (configurable via DIP switches)
Default IP Address: 10.58.18.11
Security Levels: Admin, Privileged, Normal
Web Interface: Java-based applets for configuration, monitoring, and fault logging
Drive Compatibility: ABB ACS800 series (up to 9 drives via DDCS branching unit)
Functional Highlights
Enables Ethernet-based remote control and diagnostics of ABB ACS800 drives
Supports Modbus TCP protocol for easy integration with SCADA and PLC systems
Web-based interface with Java applets for parameter adjustments, fault logging, and status monitoring
Configurable IP and MAC settings via DIP switches or software tools
Email notification support for fault events
Data logger offering numeric and graphical data visualization
Fault log export and remote module reboot functionality via Modbus commands
Daisy-chain support using dual Ethernet ports on select variants
