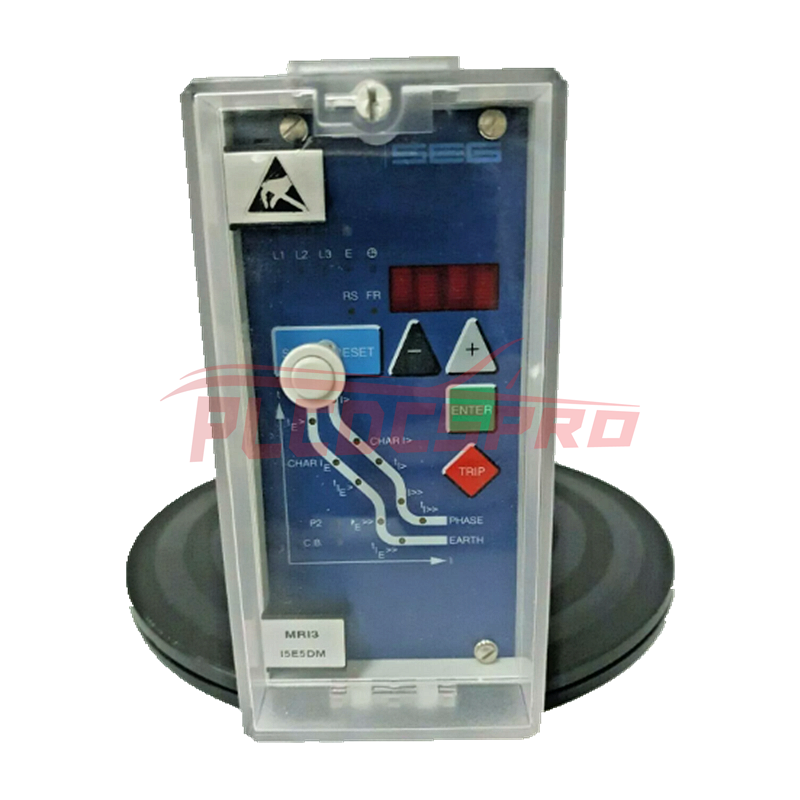

MRI3I5E5DM | Woodward Digital Multifunctional Relay For Overcurrent Protection
Sku:MRI3I5E5DM
Country Of Origin: USA
Vendor: Woodward
Type: Relay
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The Woodward MRI3I5E5DM is a digital multifunctional relay designed for overcurrent protection. It offers advanced protection and monitoring for industrial electrical systems, ensuring both phase and earth fault protection.
Key Features
Type: Digital Multifunctional Relay (Overcurrent Protection)
Measuring Inputs:
Nominal Current (IN): 1 A or 5 A
Nominal Voltage (UN): 100 V, 230 V, 400 V
Nominal Frequency (fN): 50 Hz (60 Hz adjustable)
Power Consumption:
Current circuit:
IN = 1 A: 0.2 VA
IN = 5 A: 0.1 VA
Voltage circuit: <1 VA
Thermal Withstand:
Current circuit:
Dynamic current withstand (half-wave): 250 x IN for 1 s, 100 x IN for 10 s, 30 x IN continuously, 4 x IN
Voltage circuit: 1.5 x UN continuously
Dropout to Pickup Ratio:
>97%
For phase current in the range 0.2 x IN to 0.5 x IN: 100%
Operating Time:
Minimum operating time: 30 ms
Return time: 30 ms
Time lag error class index (E): ±10 ms
Influences on Measurement:
Auxiliary voltage: No additional influences between 0.8 <UH/UHN <1.2
Frequency: In the range of 0.9 < f/fN < 1.1: <0.2% / Hz
Harmonics:
Up to 20% of the 3rd harmonic: <0.08% per percent of the 3rd harmonic
Up to 20% of the 5th harmonic: <0.07% per percent of the 5th harmonic
Order Options
Rated Current:
1 A, 5 A
Rated Voltage:
100 V, 230 V, 400 V
Earth Fault Current Relay:
Available in standard or sensitive versions for solid-grounded systems.
Directional Feature: Optional for earth current path.
