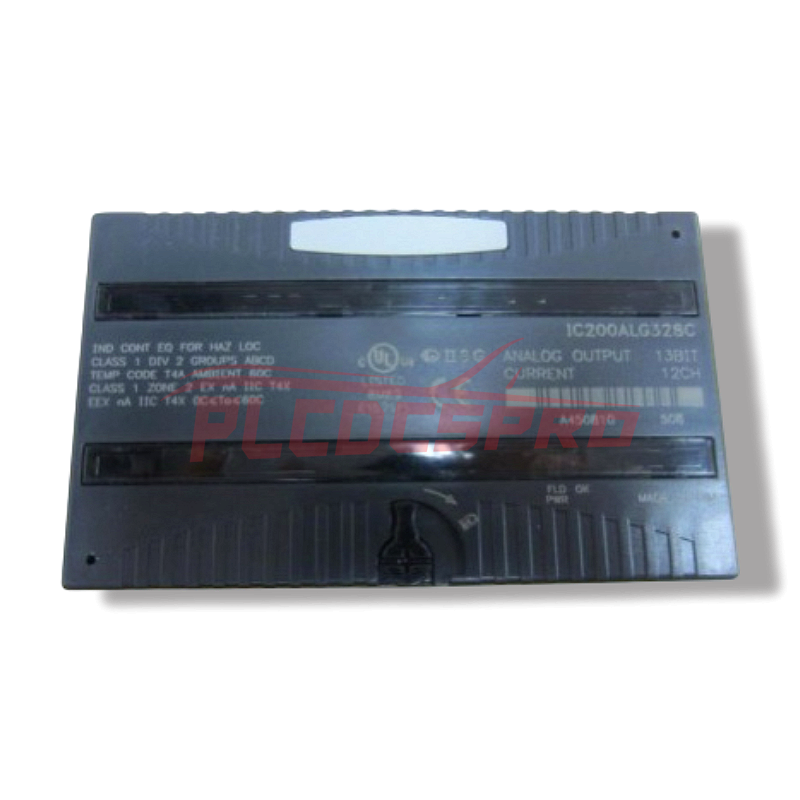

IC200ALG328 | GE Fanuc VersaMax Analog Output Module
No reviews
Sku:IC200ALG328
Country Of Origin: USA
Vendor: GE
Type: Analog Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The IC200ALG328 is a 13-bit analog output module from the VersaMax I/O series, designed to deliver 12 channels of current-sourcing analog output. It supports both 4–20 mA and 0–20 mA ranges, configurable via jumpers, making it ideal for driving actuators, control valves, and analog indicators in industrial automation systems. Intelligent processing is managed by the CPU or Network Interface Unit (NIU).
Technical Specifications
Channels: 12 single-ended current outputs
Output Ranges: 4–20 mA (default), 0–20 mA (jumper-selectable)
Resolution: 13-bit (≈2.5 µA/count)
Accuracy: ±0.3% typical @ 25°C, ±1% max @ 60°C
Update Rate: ≤15 ms per module
Isolation: 1500 V RMS (field to logic), 250 V continuous
Load Resistance: 0–800 Ω max
External Power Supply: +18 to +30 VDC (ripple included)
Power Consumption:
No load: 100 mA
Full load (12 channels): 270 mA
Inrush: 2 A max
Backplane Draw: 50 mA @ +5 VDC
LED Indicators:
FLD PWR: Field power present
OK: Backplane power present
Diagnostics: Loss of user-side power, output fault, communication loss
Default Behavior: Jumper-selectable: Hold last state or reset to default
Operating Temperature: 0°C to +60°C
Storage Temperature: –40°C to +85°C
Humidity: 5–95% RH, non-condensing
Mounting: VersaMax I/O carrier, DIN rail
Installation Notes
Requires external 24 VDC power for output channels
Jumper settings define output range and fault behavior
Compatible with VersaMax CPUs and NIUs (e.g., IC200CPU001, IC200EBI001)
Ensure proper shielding and grounding for analog signal integrity
No thermal derating at 24 VDC; derating applies above 30 VDC or elevated ambient temperatures
