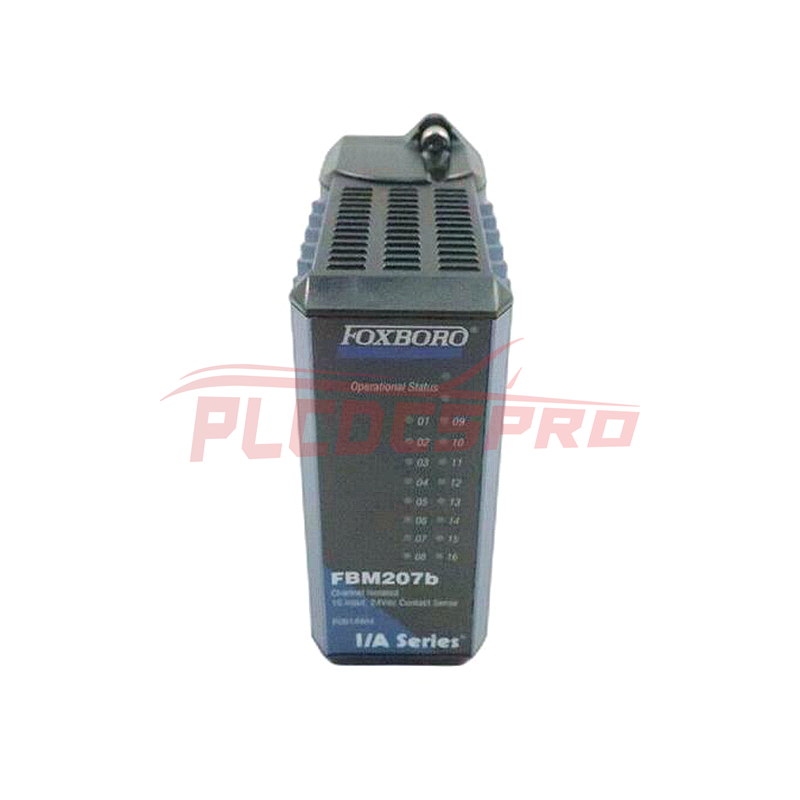

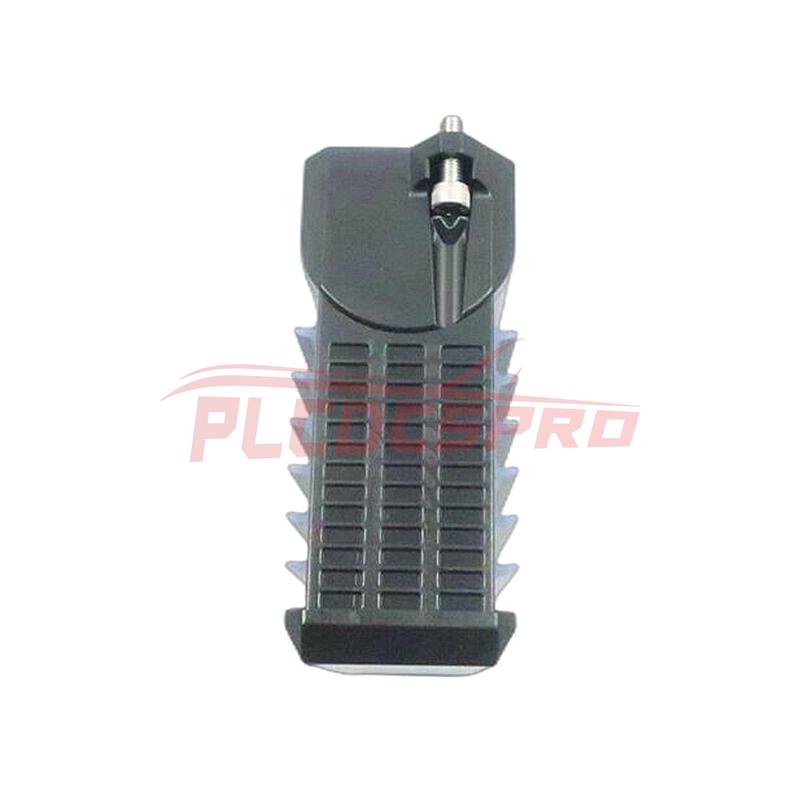

The FBM207B P0914WH is a versatile module serving as a 16-channel DC voltage monitor or contact sensor. Each channel accommodates a 2-wire input from a DC voltage source or pair of contacts/solid-state switches. This module, available in three types, facilitates discrete inputs with galvanic isolation, suitable for diverse applications.
Key Features:
16 discrete inputs
Galvanically isolated channels
Single or redundant module configurations
Rugged design for Class G3 environments
Execution of programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events
Visual LED indicators for operational status and discrete input states
Easy removal/replacement without disrupting field device termination or communication cabling
Technical Specifications:
Input Voltage Range:
15 to 60V DC (contact sense)
120V AC/125V DC (voltage monitoring or switch inputs)
240V AC (voltage monitoring or switch inputs)
Input Current: 2mA per channel
Input Impedance: >100kΩ
Input Protection: Reverse polarity and overvoltage protection
Output Voltage: 24Vdc
Output Current: 50mA per channel
Response Time: <10ms
Operating Temperature: -40 to 70°C
Storage Temperature: -55 to 85°C
Humidity: 0 to 95% RH (non-condensing)
Vibration: 5g RMS, 20 to 500Hz
Shock: 15g, 11ms half-sine
Fieldbus Communication:
The module interfaces with a Fieldbus Communications Module or Control Processor, communicating over redundant 2 Mbps module Fieldbus. Redundancy ensures continued communication even if one path fails.
Modular Baseplate Mounting:
Mounted on a DIN rail baseplate accommodating up to four or eight Fieldbus Modules, the module ensures robustness and ease of installation.
Termination Assemblies:
Field I/O signals connect via DIN rail mounted Termination Assemblies, ensuring seamless integration into various applications.
The FBM207B P0914WH offers reliable signal conditioning and versatile functionality, making it an ideal choice for demanding industrial environments.
