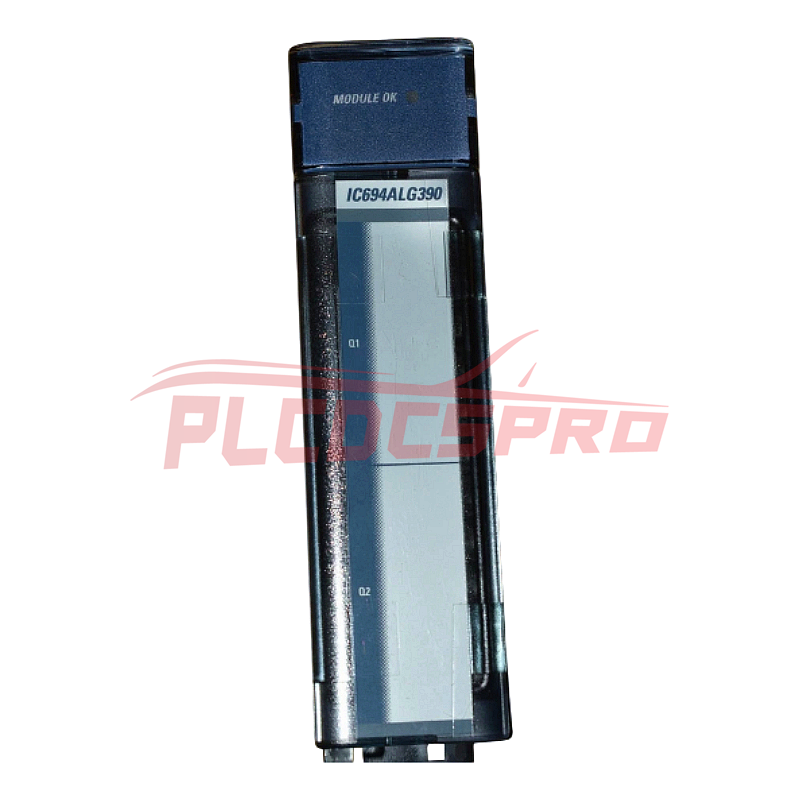

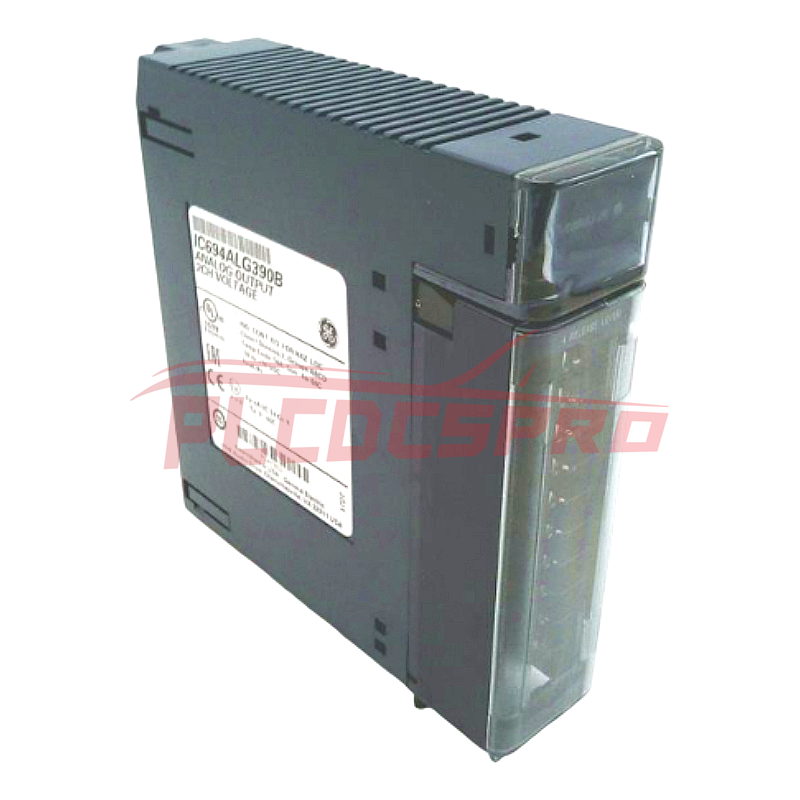

Emerson GE IC694ALG390 PACSystems Rx3i l/O Modules

Sku: IC694ALG390
Country Of Origin: USA
Vendor: GE
Type: Analog Output

In stock!

100% Original and Authentic

100% Brand New, Ready to ship

Support Refund, 7X24h Service

Product description

Overview

The GE Fanuc IC694ALG390 is an analog output module for the PACSystems RX3i platform. It provides two independent voltage output channels and converts digital values from the controller into precise analog signals for actuators, control devices, and instrumentation.

Technical Specifications

Module Type: Analog Output (Voltage)
Channels: 2
Output Range: −10 V to +10 V
Resolution: 2.5 mV per count
Update Rate: 5 ms
Maximum Output Load: 5 mA per channel
Power Requirements: 32 mA @ +5 VDC, 120 mA @ +24 VDC
Backplane Compatibility: RX3i universal or expansion backplane
Operating Temperature: −10 °C to +55 °C
Storage Temperature: −40 °C to +70 °C
Dimensions: 105 × 110 × 34 mm
Weight: 0.25 kg

Features

Two independent voltage output channels with ±10 V range
High precision digital-to-analog conversion
Fast 5 ms update rate for responsive control
Factory calibration for consistent accuracy
Supports hold-last-state operation with external power
Diagnostic capability for output monitoring

Installation Notes

Install the module in a PACSystems RX3i rack slot compatible with analog output modules
Use shielded instrumentation cables to minimize electrical noise
Ground cable shielding at the terminal block for stable signal output
Ensure load current does not exceed 5 mA per channel
Connect external 24 VDC supply if hold-last-state functionality is required
