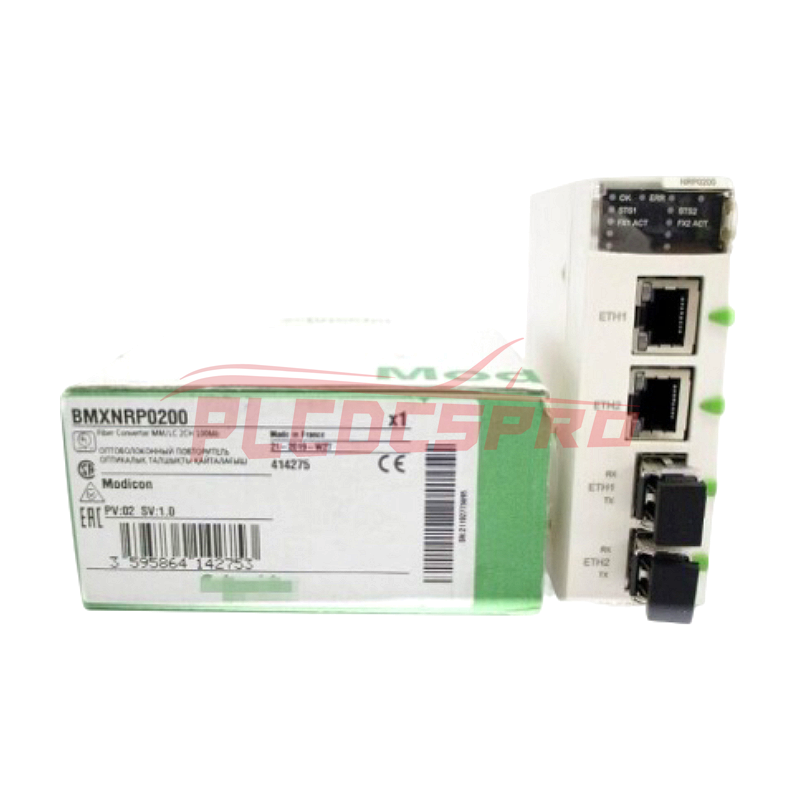

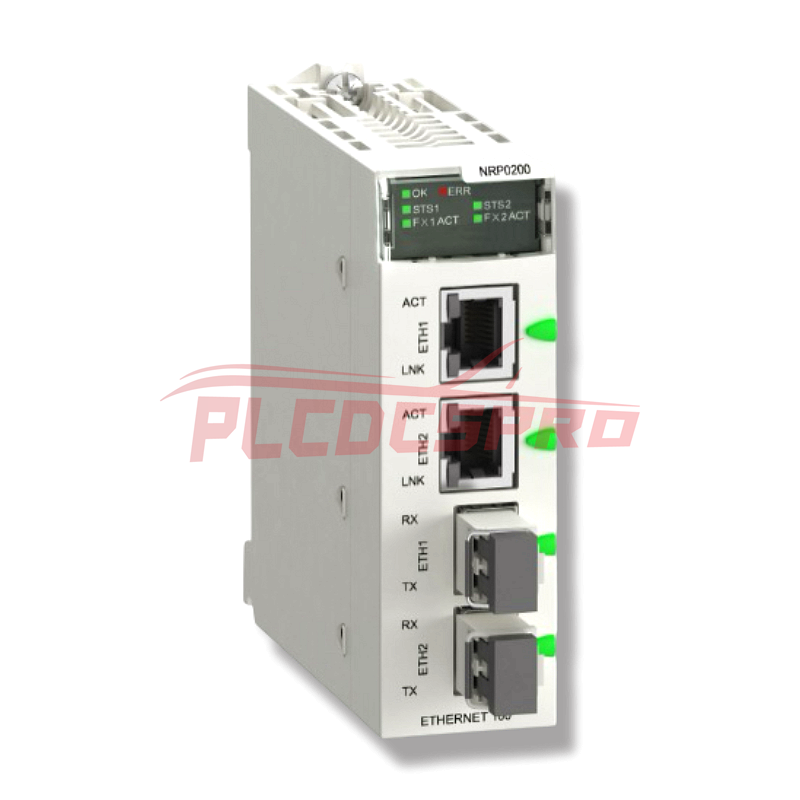

The BMXNRP0200 is a fiber optic repeater module from Schneider Electric’s Modicon X80 series, engineered to extend Ethernet communication using multimode fiber. It supports dual RJ45 and LC fiber ports and conforms to IEEE 802.3u standards for seamless 100BASE-TX and 100BASE-FX Ethernet communication. Designed for reliability in industrial networks, it also features hot-swap capability and comprehensive diagnostics.
Technical Specifications
Fiber Type: Multimode (MM), LC connector
Number of Ports:
2 × RJ45 (100BASE-TX)
2 × LC Fiber (100BASE-FX)
Transmission Speed: 100 Mbps
Wavelength: 1310 nm
Operating Distance: Up to 2000 m
Attenuation:
50/125 µm: –23.5 to –14 dB
62.5/125 µm: –20 to –14 dB
Receiver Sensitivity: –31 to –14 dBm
Rise/Fall Time: 3 ns
Dielectric Strength:
Field-to-bus: 1400 V DC
Channel-to-channel: 500 V DC
Rated Voltage: 24 V DC
Current Consumption:
Typical: 140 mA
Maximum: 200 mA
Hot-Swap Support: Yes
Indicators & Diagnostics
LEDs:
Green: Power status, link status, fiber port activity
Red: Error condition (ERR)
Environmental Ratings
Operating Temperature: 0°C to +60°C
Storage Temperature: –40°C to +70°C
Humidity: 0–95% RH (non-condensing)
Altitude: Up to 4000 m
IP Rating: IP20
Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
