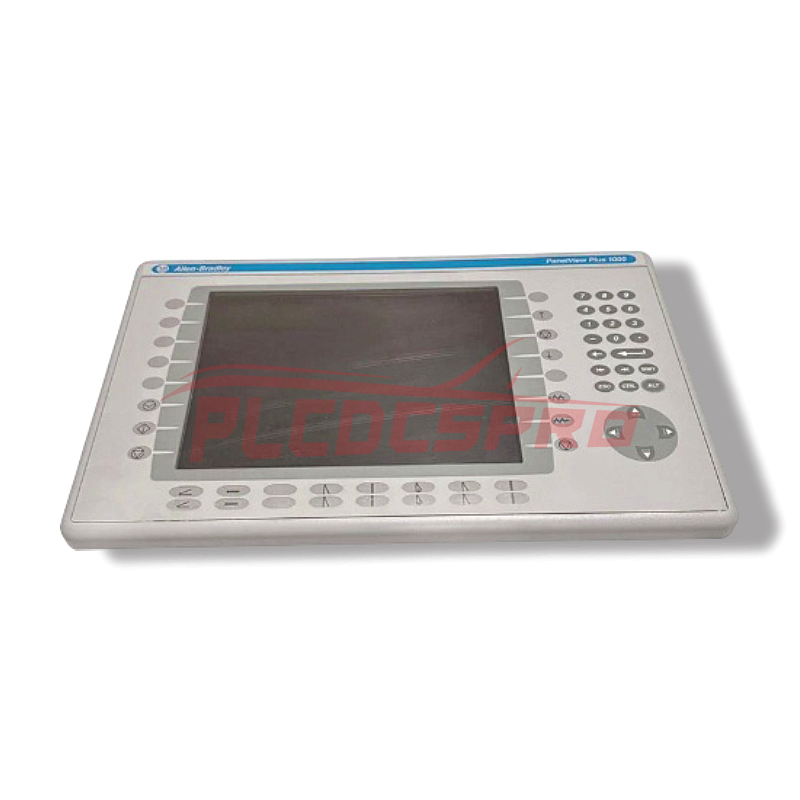

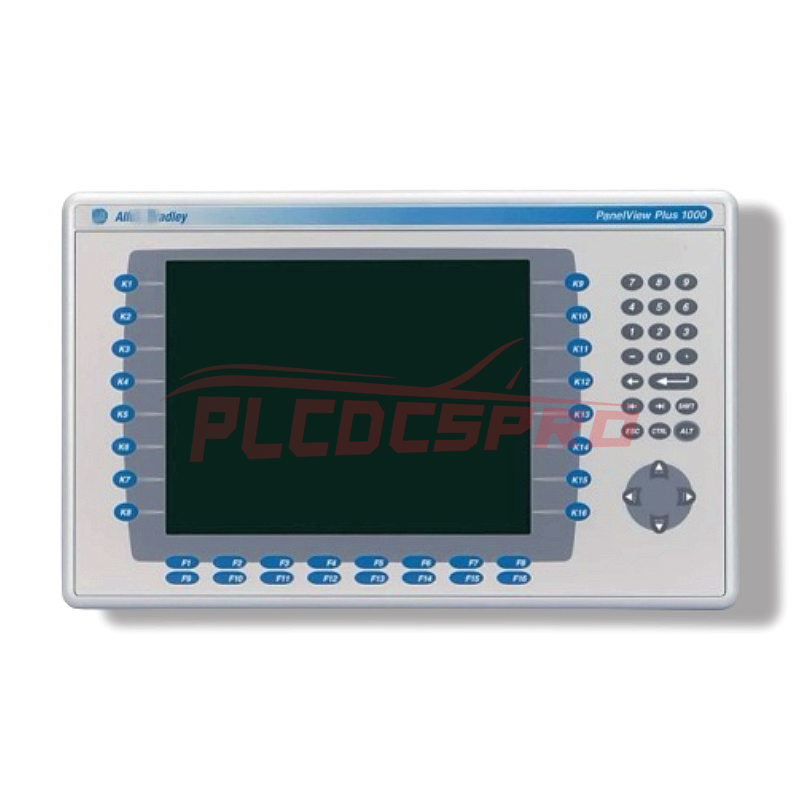

Allen-Bradley 2711P-B12C4A8 Terminal Panelview Plus
No reviews
Sku:2711P-B12C4A8
Country Of Origin: USA
Vendor: Allen Bradley
Type: HMI
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 2711P-B12C4A8 is a PanelView Plus 6 1250 operator interface terminal from Rockwell Automation. It features a 12.1-inch color display with dual input—keypad and touchscreen—and supports FactoryTalk View ME applications. Designed for industrial environments, it offers flexible communication and robust visualization.
Product Specifications
Display
Type: TFT active-matrix LCD
Size: 12.1 inches
Resolution: 800 × 600 pixels (SVGA)
Color Depth: 18-bit graphics
Backlight: 2711P-RL12C2 (field-replaceable)
Input Interface
Touchscreen: 8-wire analog resistive
Keypad: Stainless-steel membrane with numeric, navigation, and function keys
Memory
RAM: 512 MB
Flash: 512 MB nonvolatile (79 MB user memory)
Operating System
Windows CE 6.0 (non-extended features)
Power Supply
Voltage: 100–240 VAC, 50–60 Hz
Max Consumption: 160 VA
Communication Ports
Ethernet (10/100 Mbps, Auto-MDI/MDI-X)
RS-232
(2) USB Host Ports
Optional: DH+/DH-485, ControlNet modules
Environmental Ratings
Operating Temperature: 0 to 55 °C
Storage Temperature: –25 to 70 °C
Humidity: 5–95% RH, non-condensing
Shock: 15 g / 11 ms
Vibration: 2 g @ 500 Hz
IP/NEMA Rating: IP65 (front), NEMA Type 12, 13, 4X (indoor)
Dimensions
Keypad Version: 282 × 416 × 55 mm
Touch Version: 282 × 363 × 55 mm
Weight: 4.5 kg
Installation Notes
Mount in sealed enclosure with appropriate IP/NEMA rating
Use shielded cables for Ethernet and serial ports
Ground per NEC/IEC standards
Supports hot-swappable SD cards (1784-SDx) for firmware upgrades and data logging
Battery-backed real-time clock (CR2032, Cat. No. 2711P-RY2032) for timestamping
Answer 1: PLC DCS Pro Ltd. collaborates with over 50 countries worldwide. As a leading supplier in China, we can provide significant discounts to customers based on market demand.
Question 2: What Is The Warranty Period?
Answer 2: We offer a standard one-year warranty for all new and original items.
Question 3: What Payment Methods Do We Accept?
Answer 3: We accept 100% T/T (Telegraphic Transfer) before shipping. For items with a lead time, a 30% deposit is required in advance, with the remaining 70% balance due before shipping. If you have an agent in China, please contact us for RMB transfer.
Question 4: What Shipping Methods Do We Use?
Answer 4: We primarily utilize carriers such as FedEx, DHL, UPS, BRE, etc. If you have an account with any of these carriers, you can arrange the shipping yourself. Additionally, we offer free shipping to China freight forwarders.
Question 5: What Is Our Delivery Time?
Answer 5: Typically, delivery takes around 1-3 days after receiving the advance payment. For items with a quoted lead time, delivery will occur as per the specified lead time.
Question 6: How Do We Package The Goods?
Answer 6: Our packaging process involves multiple layers of protection. Initially, the product is placed in its original box, sealed with a label. Then, we add a layer of bubble wrap to safeguard against collisions during transportation. Finally, all products are securely packed in sturdy boxes for further protection.
Question 7: How Can Customers Contact Us And Request A Quote?
Answer 7: Customers can inquire via email, WhatsApp, WeChat, Skype, or any preferred communication platform. Simply reach out to us, and we'll promptly provide a quote tailored to your needs.
Warranty Conditions
At PLC DCS Pro Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
