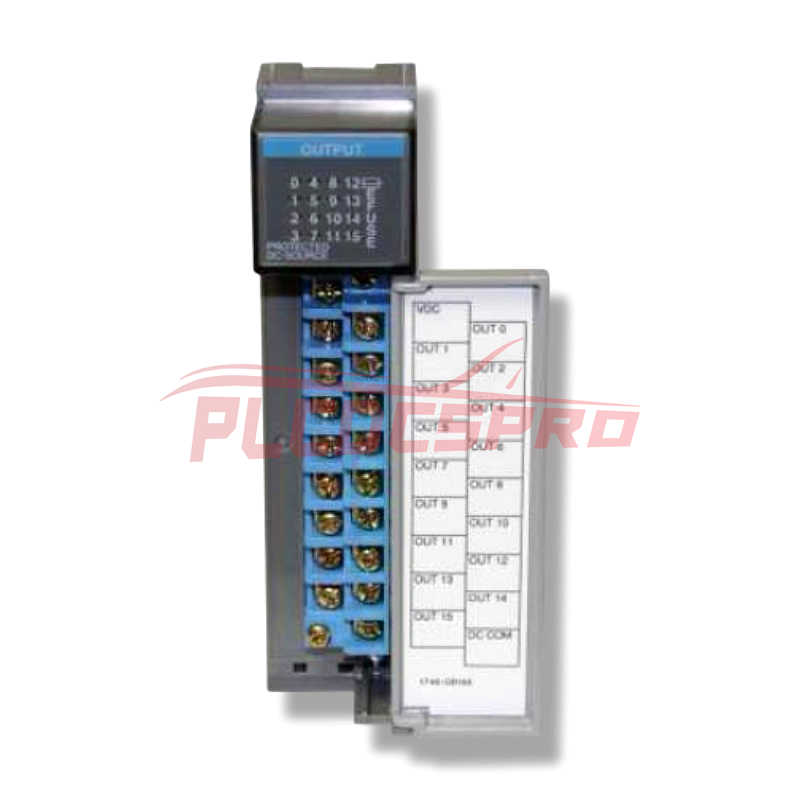

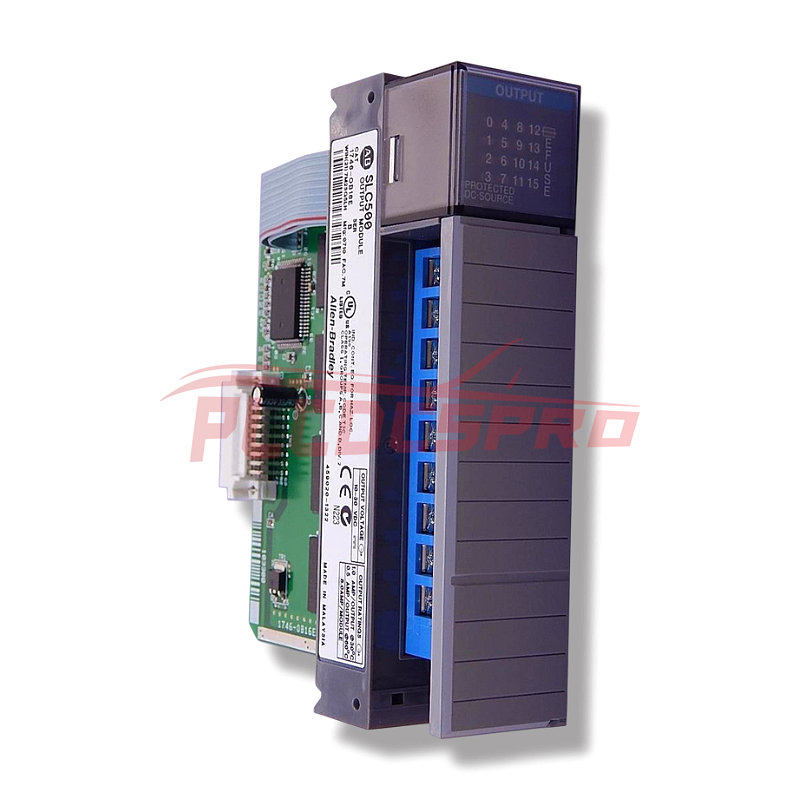

Allen-Bradley 1746-OB16E Digital DC Source Output Module
No reviews
Sku:1746-OB16E
Country Of Origin: USA
Vendor: Allen Bradley
Type: DC Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The Allen-Bradley 1746-OB16E is a digital DC output module designed for the SLC 500 series programmable logic controllers (PLCs). It provides 16 electronically fused sourcing outputs, optimized for high-speed switching of DC loads such as solenoids, relays, and indicator lamps.
Technical Specifications
Manufacturer: Rockwell Automation (Allen-Bradley)
Series: SLC 500
Catalog Number: 1746-OB16E
Module Type: Digital DC Output
Output Type: Sourcing (positive logic)
Number of Outputs: 16 points
Voltage Range: 10–50 VDC
Nominal Output Voltage: 24 VDC
Output Current: 1.0 A per point (max), 8.0 A per module (max total)
Isolation Voltage: 1500 V AC (between field and logic)
Electronic Protection: Built-in electronic fusing per point
Status Indicators: Individual LED per output channel
Connector Type: Removable terminal block
Backplane Current: 0.280 A at 5 VDC
Mounting: Standard SLC chassis slot
Operating Temperature: 0°C to +60°C
Certifications: UL, CSA, CE
Installation Notes
Mount in any available slot in the SLC 500 chassis
Connect DC loads to output terminals with proper polarity
Ensure total current does not exceed module or chassis limits
Use shielded cables in high-noise environments
Monitor LED indicators for fault diagnostics
Follow Rockwell Automation wiring and grounding standards
