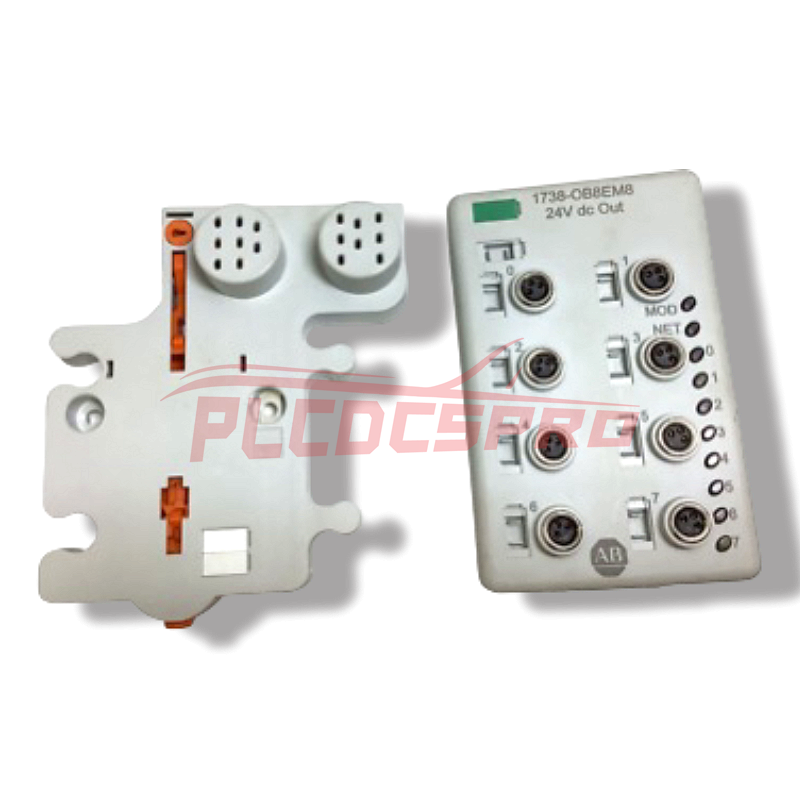

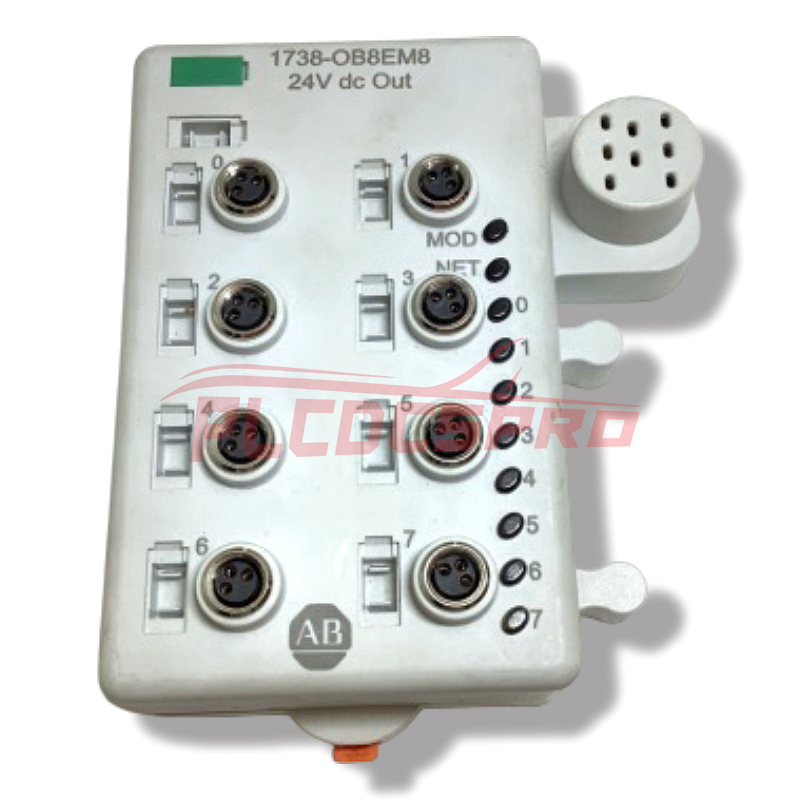

Allen-Bradley 1738-OB8EM8 ArmorPoint Digital 8CH 24VDC Output Module
No reviews
Sku:1738-OB8EM8
Country Of Origin: USA
Vendor: Allen Bradley
Type: Digital Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 1738-OB8EM8 is an 8-point sourcing digital output module from the ArmorPoint I/O family by Rockwell Automation (Allen-Bradley). It features sealed M8 connectors and an IP67-rated housing for direct mounting in harsh industrial environments. Ideal for distributed I/O architectures, the module supports high-speed switching and integrates with the POINTBus communication backplane.
Technical Specifications
Catalog Number: 1738-OB8EM8
Manufacturer: Rockwell Automation (Allen-Bradley)
Module Type: Digital Output
Number of Channels: 8 (sourcing type)
Output Voltage Range: 10–30 V DC
Nominal Output Voltage: 24 V DC
Maximum Output Current:
1.0 A per channel
2.0 A total per module
Output ON Voltage (max): 2 V DC
Leakage Current (OFF): ≤ 0.1 mA
Connector Type: M8 Pico-style (8 × 3-pin)
Power Supply: 24 V DC (via POINTBus)
POINTBus Current: 75 mA @ 5 V DC
Power Dissipation: 1.6 W max
Thermal Dissipation: 5.5 BTU/hr
Environmental Rating: IP67
Operating Temperature: –20°C to +60°C
Storage Temperature: –40°C to +85°C
Mounting: DIN rail or panel
Dimensions (W × H × D): 102 mm × 50 mm × 47 mm
Weight: 0.5 kg
Replacement Category: No planned RA replacement
Keyswitch Position: 1 (module identification)
Functional Highlights
8 non-isolated sourcing outputs for discrete control applications
Sealed IP67 housing suitable for rugged industrial conditions
LED indicators for output channel status and fault diagnostics
Produces 1 byte of input status and consumes 1 byte of output data
Compatible with Studio 5000 Add-On Profiles (AOP)
Supports autobaud configuration and explicit messaging
Designed for high-speed switching and direct machine-level integration
