The ABB REF542PLUS is a multifunction protection and switchgear control unit designed for medium voltage applications. It integrates protection, control, measurement, and self-diagnostics functionalities, offering a comprehensive solution for critical power systems. The REF542PLUS is widely used in power distribution networks, protecting feeders, transformers, and motors. It provides digital bay control technology that simplifies operation and enhances system reliability.
Features
Comprehensive Protection: Provides protection for feeders, transformers, and motors.
Advanced Control: Allows control of switchgear and other power system equipment.
Self-Diagnostics: Features built-in diagnostic functions to ensure optimal performance and easy maintenance.
Digital Bay Control: Integrates digital technology for enhanced control and monitoring.
Modular Design: Can be customized to meet specific system requirements with various optional modules.
1VCF750090R801 – HMI Control Unit

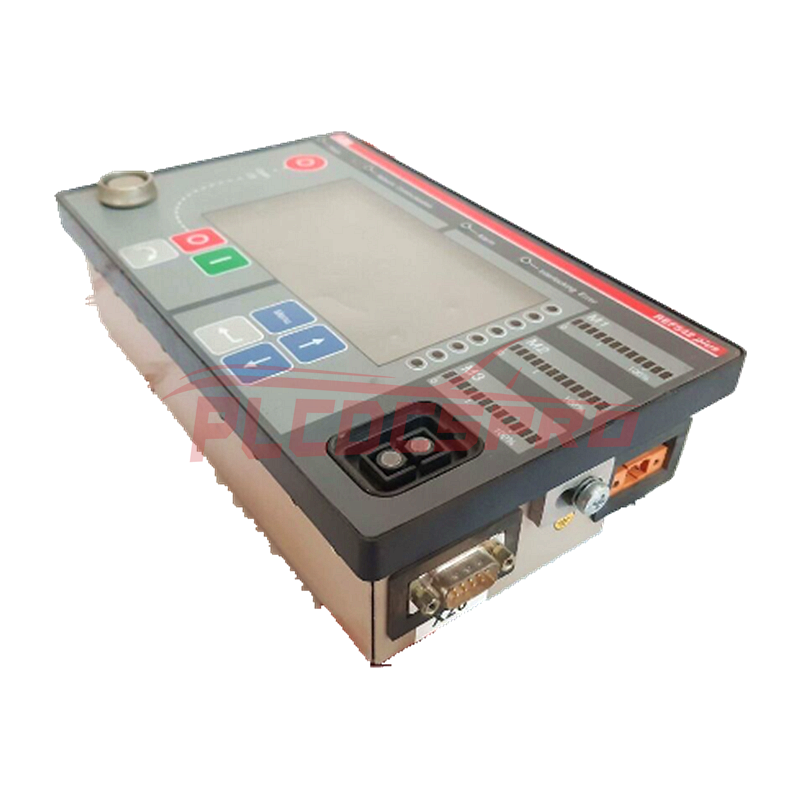

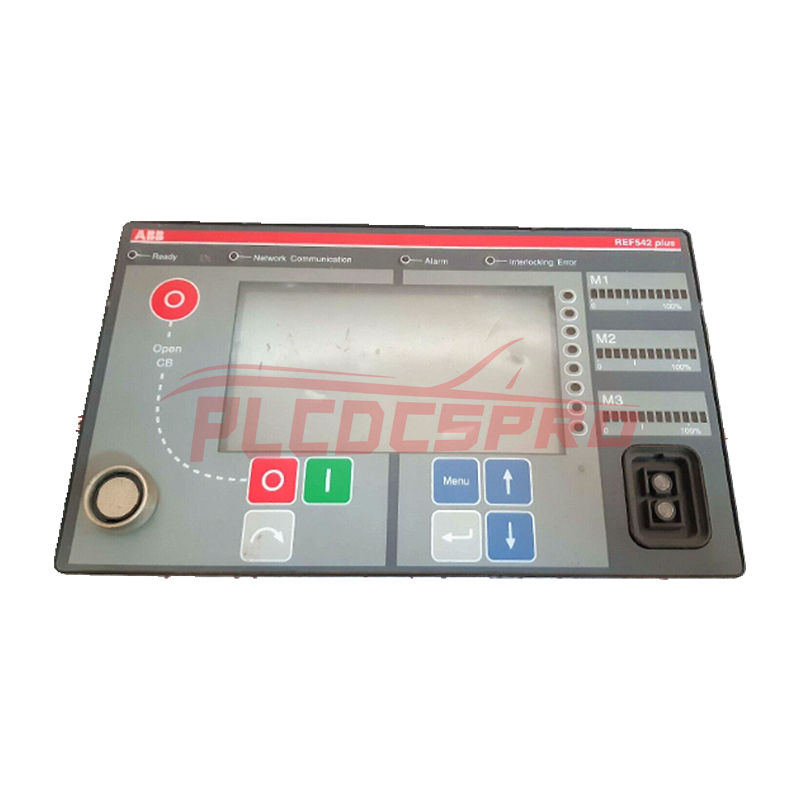

The 1VCF750090R801 model is an operator interface panel (HMI) for the ABB REF542PLUS system, providing the necessary Human-Machine Interface for operators to interact with and control the protection and switchgear system. It allows operators to easily monitor system parameters, make adjustments, and view diagnostic information through an intuitive interface.
Key Features of the HMI Control Unit (1VCF750090R801)
LCD Display
Back-lit LCD Screen: Provides a graphical display of the switching devices controlled by the REF542PLUS.
Customization: Adjustable intensity and duration of the backlight.
Single Line Diagram: Displays the status of all switching devices, providing an intuitive view of the system's operation.
Plain Text Information: The right section of the display shows critical information such as:
Measurement values
Protection signals
Event logs
Main and sub-menu descriptions
Display Capacity
Switching Devices: Supports up to 8 switching device icons (or 7 for binary I/O boards with mechanical relays).
Icons: Displays various icons for equipment like motors, transformers, sensors, and transducers.
Lines: Can show up to 40 individual lines for different monitoring and control data.
User-Friendly Interface
Navigation: Simple and intuitive interface for easy navigation through system parameters and settings.
Real-Time Monitoring: Allows operators to monitor the status of key components and adjust control settings in real-time.
Event Monitoring: Logs and displays events for easy diagnostics and troubleshooting.
