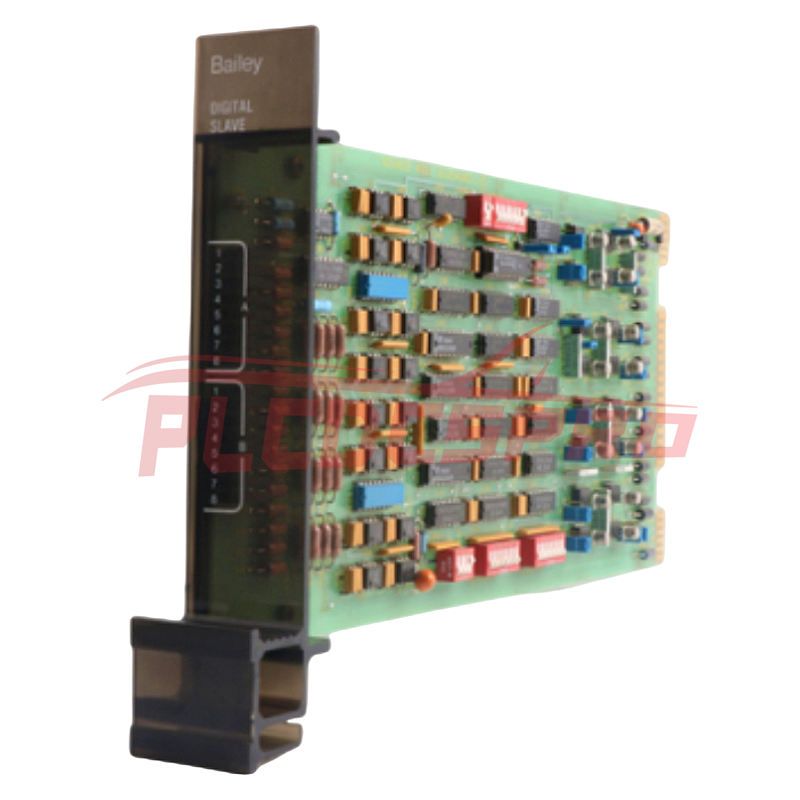

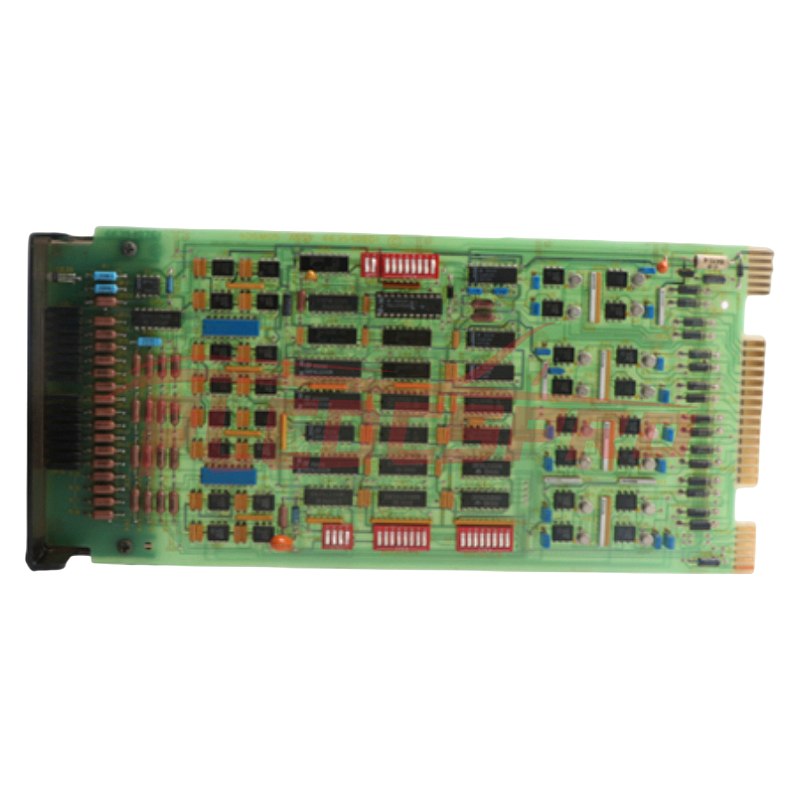

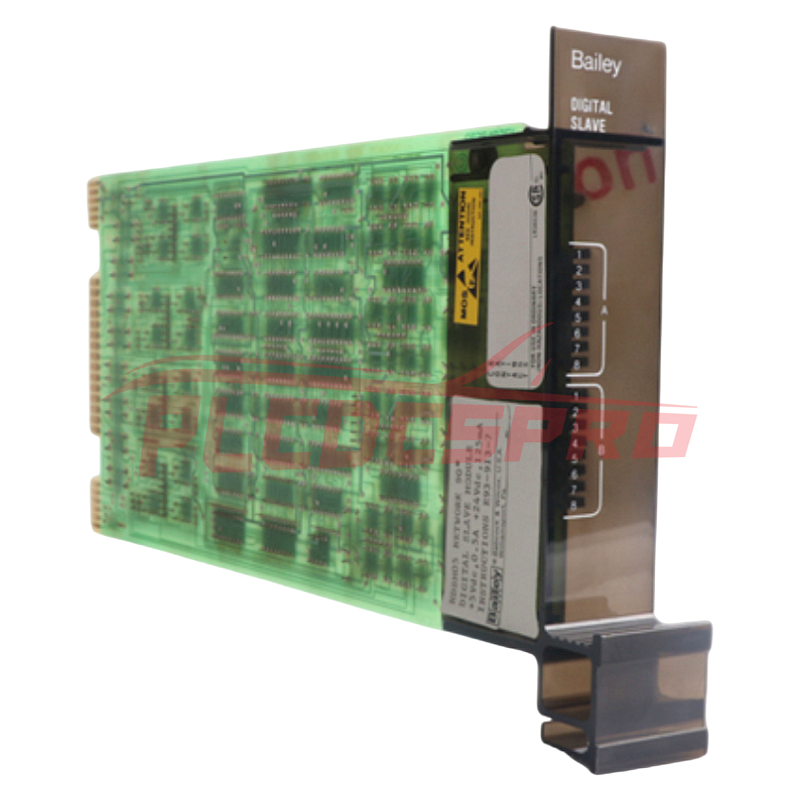

The ABB Bailey NDSM05 is a digital slave input module designed for INFI 90 and NET 90 control systems, providing high‑density digital input acquisition for industrial automation applications.
Technical Specifications
Product Type: Digital Slave Input Module
Model: NDSM05
System Platform: INFI 90 and NET 90
Input Channels: 64 digital inputs
Input Voltage Range: 24 VDC nominal
Input Type: Dry contact or voltage‑driven
Isolation: Optical isolation per channel
Response Time: Less than 5 ms
Input Impedance: 5 kΩ
Power Consumption: 6 W
Operating Temperature: 0°C to +60°C
Storage Temperature: -20°C to +85°C
Humidity: 5% to 95% RH non‑condensing
Mounting: DIN rail or system chassis
Communication: System backplane
Dimensions: 140 mm x 80 mm x 210 mm
Weight: 1.2 kg
Installation Notes
Install the module in the designated INFI 90 or NET 90 rack or DIN rail position
Follow ESD protection procedures during handling
Ensure proper seating into the system backplane connector
Connect field wiring according to ABB input wiring guidelines
Verify channel status and diagnostics after system power‑up
