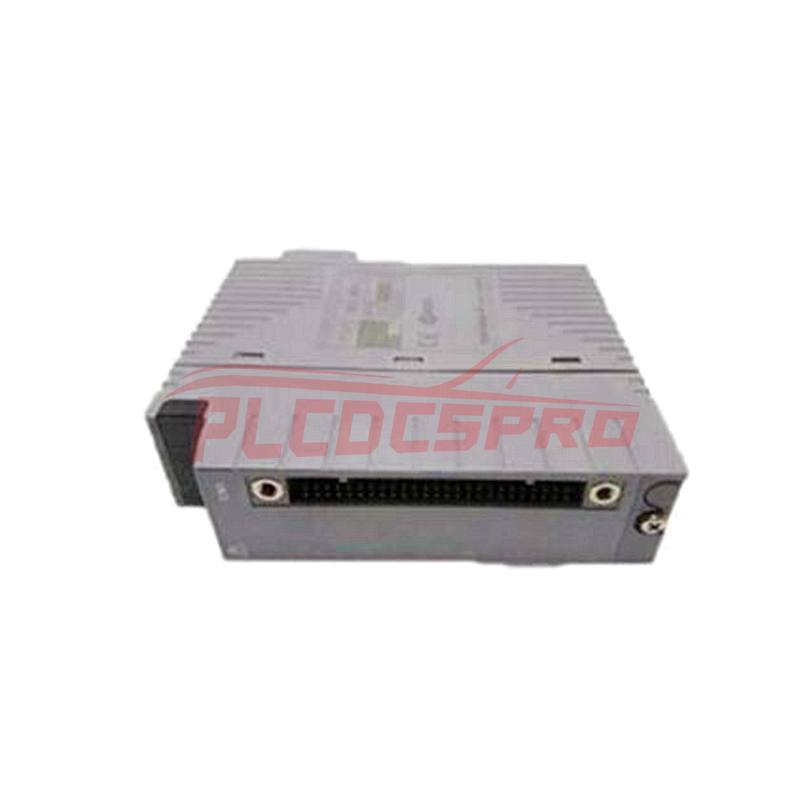

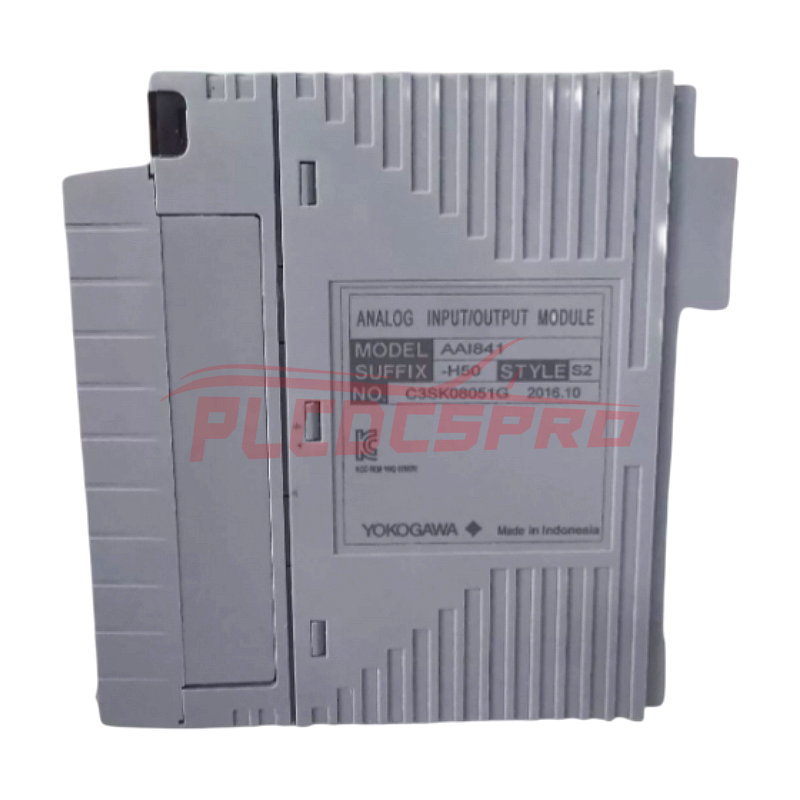

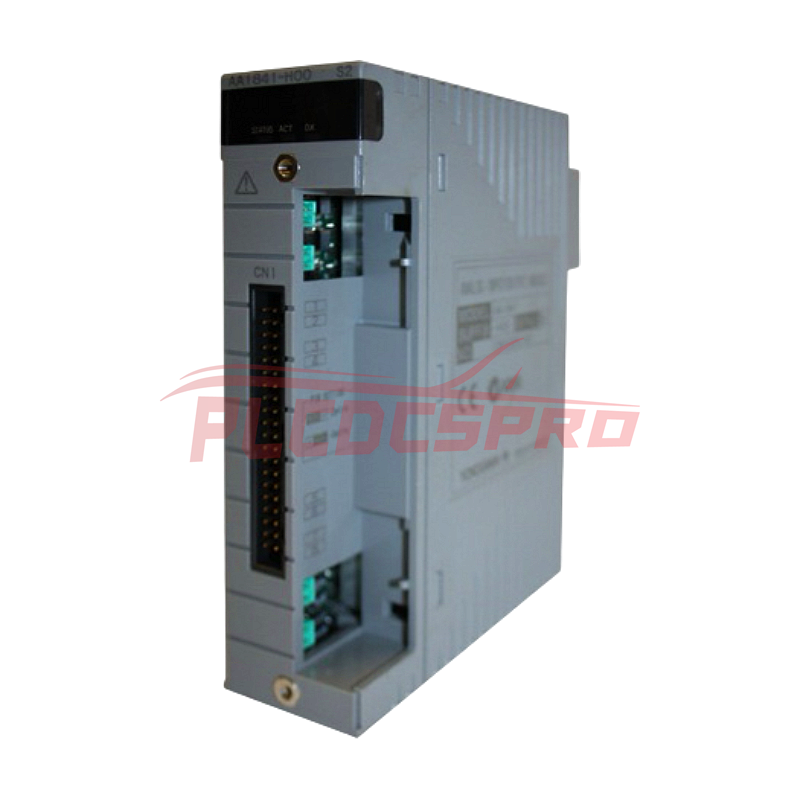

The Yokogawa AAI841-H50 is a high-density analog input/output module designed for CENTUM CS 3000 / VP distributed control systems. It offers 8 analog input and 8 analog output channels, all configured for 4–20 mA signals. This module features non-isolated channels, suitable for applications where isolation is either externally provided or not required.
Technical Specifications
Function: Analog Input/Output Module
Input Channels: 8 (4–20 mA DC)
Output Channels: 8 (4–20 mA DC)
Channel Isolation: Non-isolated
Input Resistance:
Power ON: 400 Ω (at 20 mA) to 1000 Ω (at 4 mA)
Power OFF: ≥500 kΩ
Allowable Input Current: 25 mA
Allowable Load Resistance (Output): 0–750 Ω
Circuit-Open Detection: Output current < 0.65 mA
Accuracy:
Input: ±16 µA
Output: ±48 µA
Data Update Period: 10 ms
Transmitter Power Supply:
≥14.8 V at 20 mA
≤26.4 V at 0 mA
Temperature Drift: ±0.1% per 10 °C
Power Consumption:
310 mA @ 5 V DC
500 mA @ 24 V DC
Weight: 0.3 kg
Mounting: ESB/ER bus node units
External Connection: Pressure clamp terminal, KS cable, or MIL connector
HART Communication: Supported (suffix -H)
RoHS Compliance: Not compliant (requires isolation barrier in hazardous areas)
Suffix and Option Codes
Suffix Codes:
-H: HART-enabled
5: No explosion protection
0: Basic configuration
Example: AAI841-H50 = HART-enabled, non-explosion-proof, basic version
Available Options:
/K4A00: KS Cable Adapter (ATK4A-00)
/13S00: Pressure Clamp Terminal Block (ATI3S-00)
/13D10: Dual Pressure Clamp Terminal Block with Surge Absorber (ATI3D-10)
