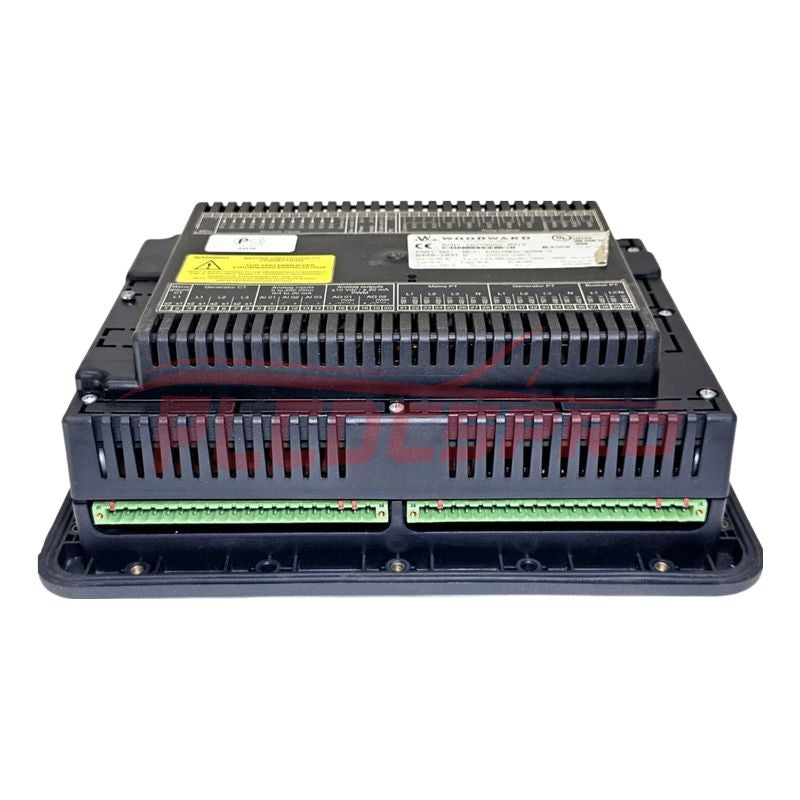

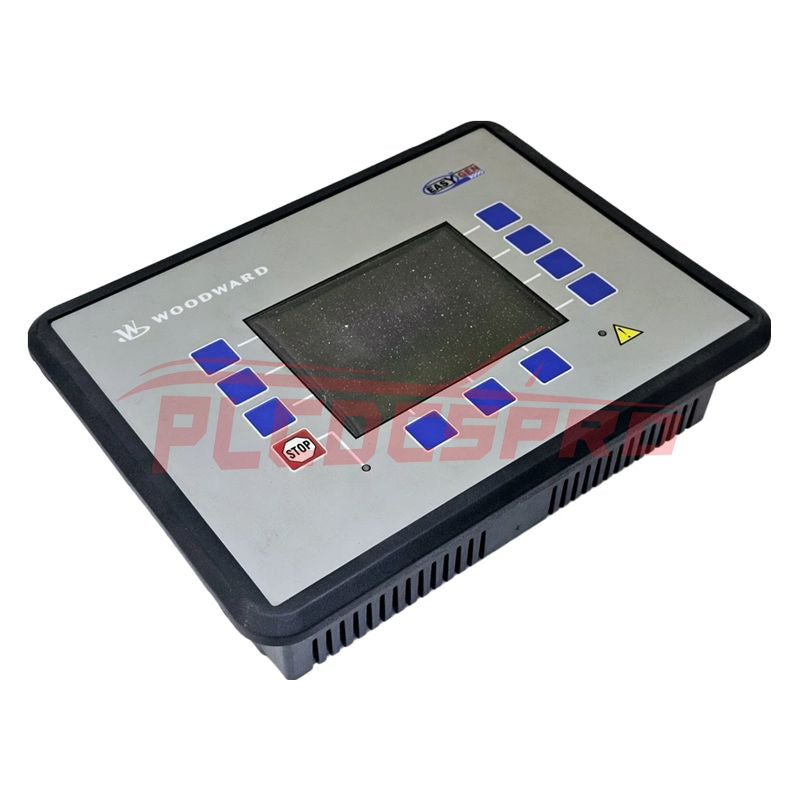

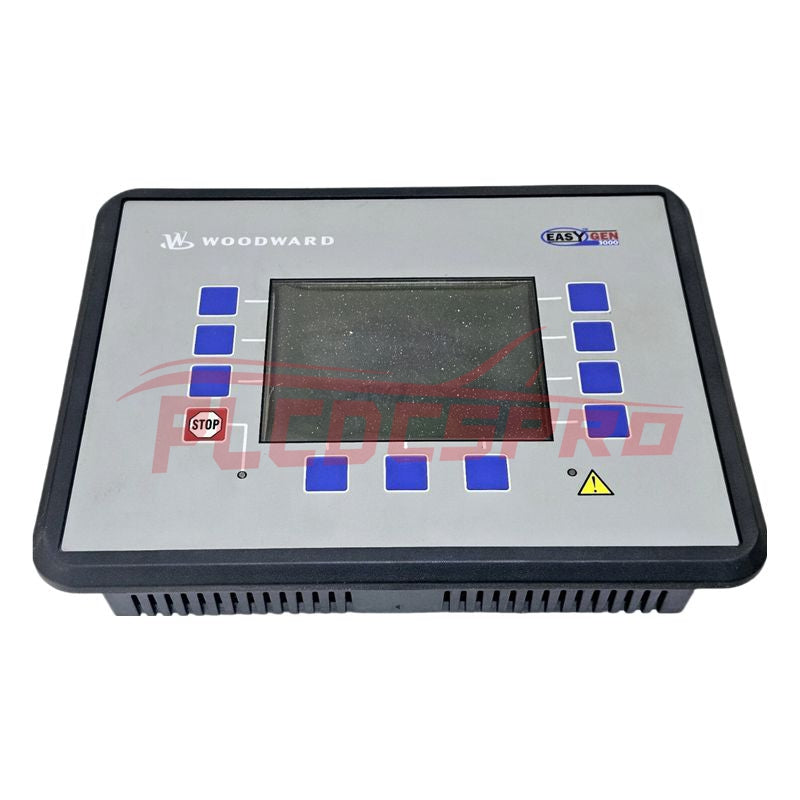

8440-1831 | Woodward easYgen-3200 Series Genset Control

Sku: 8440-1831
Country Of Origin: USA
Vendor: Woodward
Type: easYgen-3200 Series Genset Control

In stock!

100% Original and Authentic

100% Brand New, Ready to ship

Support Refund, 7X24h Service

Product description

Overview

The Woodward 8440-1831 easYgen-3200 Series Genset Control delivers advanced generator management for complex power applications.
It belongs to the proven easYgen-3200 Series, widely used in industrial and commercial power systems worldwide.
Engineers rely on this controller to manage synchronization, load sharing, and protection in demanding installations.
Moreover, the unit integrates engine and generator control into one compact, configurable platform.

The 8440-1831 supports island, mains parallel, and multi-unit operation strategies.
Therefore, it provides flexibility for both standby and prime power systems.
Its graphical display and intuitive parameter structure simplify commissioning and daily operation.

Technical Specifications

Category	Parameter / Feature	Details / Range
General Information	Manufacturer	Woodward
	Series	easYgen-3200
	Model Number	8440-1831
	Product Type	Genset Controller
	Application	Standby, Prime, Multi-genset control
Electrical Specifications	Supply Voltage	8–40 VDC
	Current Consumption	< 20 W typical
	Voltage Measurement Range	100–600 VAC
	Frequency Measurement Range	45–65 Hz
	Analog Inputs	6 Configurable channels (0–10 V / 4–20 mA)
	Digital Inputs	8 Programmable channels
	Relay Outputs	6 Outputs, 5 A @ 250 VAC / 30 VDC
	CANbus Communication	J1939 engine protocol support
Communication Interfaces	Ethernet	10/100 Mbps, Modbus TCP/IP
	Serial Ports	RS-232 / RS-485
	Protocols	Modbus RTU, Modbus TCP/IP, optional DNP3
Protection & Control	Generator Protection	Overcurrent, Over/Under voltage, Over/Under frequency, Reverse Power
	Breaker Control	Automatic and manual breaker operation
	Load Sharing Modes	Isochronous, Droop, Parallel Synchronization
Display & Monitoring	Local Display	Graphical LCD with alarms, measurements, breaker status
	Remote Monitoring	Via SCADA/PLC over Ethernet or serial
Environmental	Operating Temperature	-20°C to +70°C
	Storage Temperature	-40°C to +85°C
	Humidity	5–95% non-condensing
	Enclosure Protection	IP65 / NEMA 4X (industrial grade)
Mechanical	Dimensions (H × W × D)	185 × 135 × 55 mm
	Weight	~1.2 kg
	Mounting	Panel or DIN rail

FAQ

Q1: What is the primary function of the 8440-1831 controller?
A1: It manages generator control, synchronization, load sharing, and protection in single or multi-genset systems.

Q2: Can this controller operate in parallel with the utility grid?
A2: Yes, it supports automatic synchronization and breaker control for grid-connected applications.

Q3: Does the 8440-1831 support engine ECU communication?
A3: Yes, it supports CANbus J1939 communication for direct engine data exchange.

Q4: Is the unit suitable for harsh industrial environments?
A4: Yes, it operates reliably across wide temperature ranges and industrial electrical conditions.

Q5: Can it be integrated with SCADA systems?
A5: Yes, Modbus TCP/IP and RTU protocols enable seamless SCADA and PLC integration.

Installation Notes

Install within Woodward control racks or cabinets
Connect directly to magnetic pickup sensors near turbine or engine shafts
Use proper wiring and shielding to prevent electrical noise interference
Calibration and verification of MPU signals may be required during commissioning
