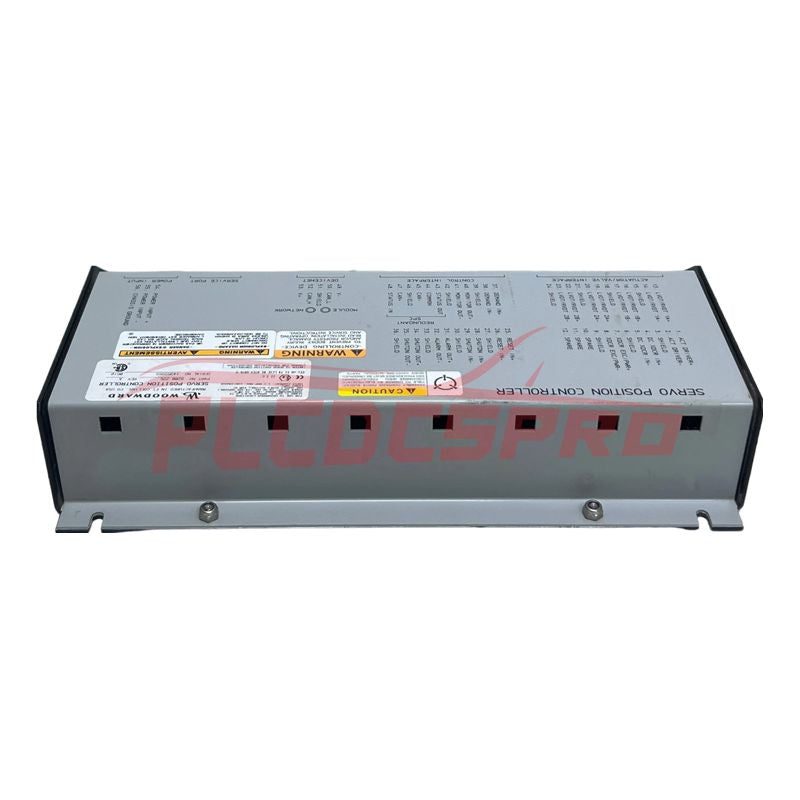

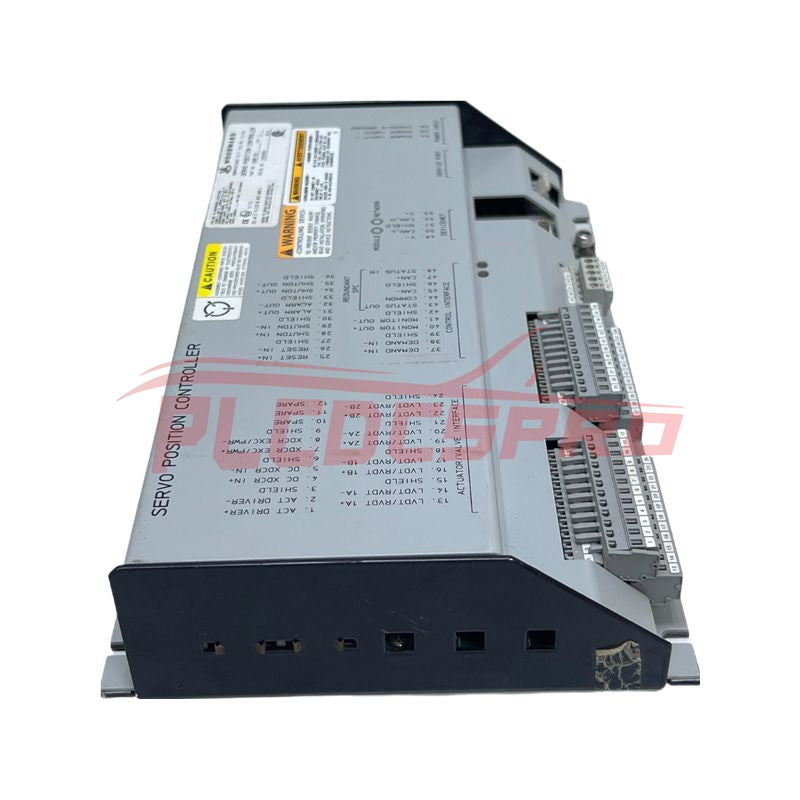

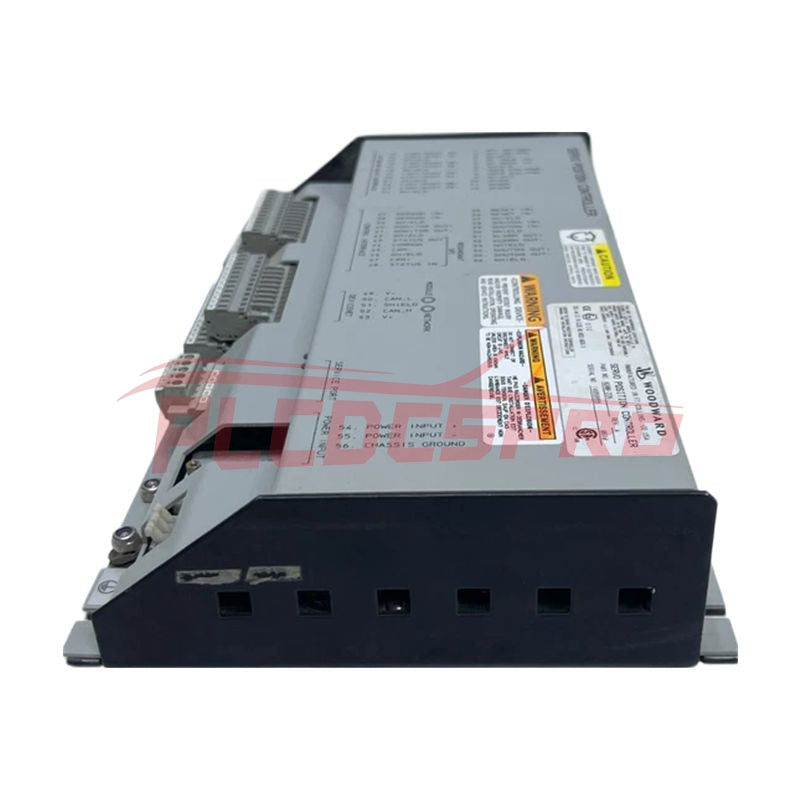

The Woodward 8200-314 is a high-performance servo position controller designed for precise control of industrial actuators. It provides accurate positioning for hydraulic or electric servo systems, ensuring optimal machine performance. Engineers choose 8200-314 for its reliable operation under harsh industrial conditions and rapid response times. Moreover, this controller integrates easily with existing automation and process control systems.
Technical Specifications
Parameter Category
Specification Details
Manufacturer
Woodward
Model Number
8200-314
Module Type
Servo Position Controller
Control System Compatibility
Hydraulic and electric servo actuators
Input Signal Range
±10 V analog control or digital command
Output Current
0.5–5 A continuous per channel
Control Modes
Position, Speed, Torque
Feedback Compatibility
Resolver, potentiometer, or encoder signals
Control Loop Bandwidth
Up to 200 Hz
Servo Resolution
16-bit analog to digital conversion
Response Time
Typically <5 ms from command input to actuator motion
Power Supply
24 V DC nominal, 18–32 V DC operating range
Power Consumption
Approx. 12 W under nominal load
Operating Temperature
-40°C to +70°C
Storage Temperature
-55°C to +85°C
Mounting
Panel mount or DIN rail adaptable
Dimensions (L×W×H)
180 mm × 120 mm × 70 mm
Weight
Approx. 1.5 kg
Housing Protection
IP65 rated, dust and moisture resistant
Diagnostics
LED indicators for power, command, and fault status
Communication Interfaces
Modbus RTU standard, optional CAN bus
Energy Storage
Internal capacitor for transient stability
Safety & Compliance
CE, UL recognized for industrial applications
Typical Applications
Turbines, precision actuators, industrial machinery, mobile equipment
Maintenance
Modular design allows component replacement without full system downtime
