6ES7972-0BA52-0XA0 | Siemens Connector For Profibus DP
Sku:6ES7972-0BA52-0XA0
Country Of Origin: Germany
Vendor: Siemens
Type: Profibus DP
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Product Description

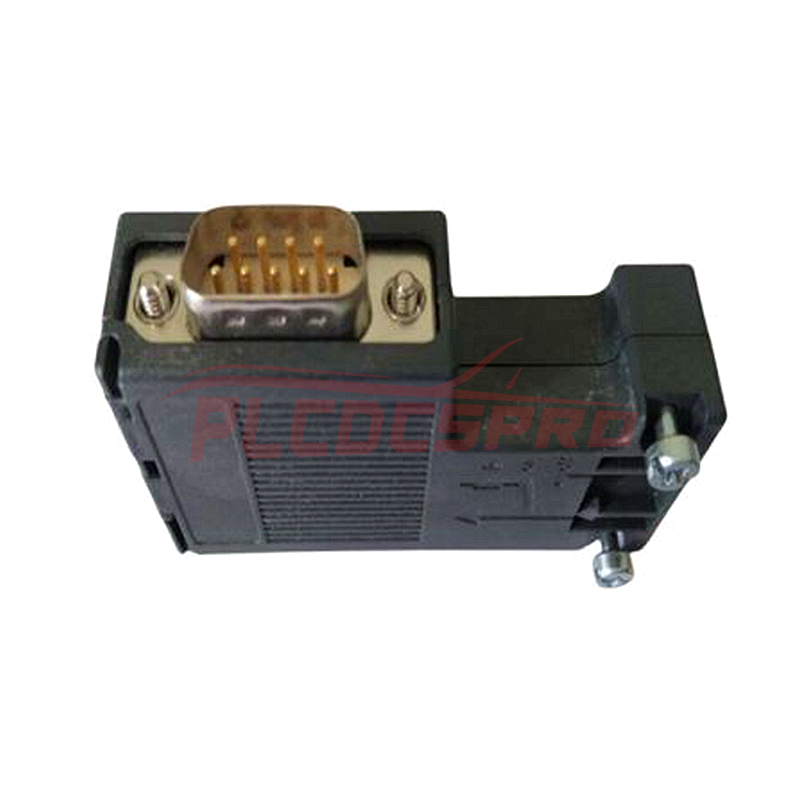

The 6ES7972-0BA52-0XA0 is a PROFIBUS bus connector from Siemens. It features a 90-degree angle connector with an insulation displacement FastConnect (IDC) terminal block. This connector is designed for connecting PROFIBUS stations to the PROFIBUS bus cable.
Suitable for use with PROFIBUS DP, DP slave, and FDL stations
Transfer rate of up to 12 Mbit/s
IP20 protection class
RoHS compliant
UL approved
Technical Specifications
Transfer Rate: 9.6 kbit/s to 12 Mbit/s
Interfaces: PROFIBUS bus cable, network components, or terminal equipment
Electrical Connections: 2 for PROFIBUS cables, 1 for network components or terminal equipment
Type of Electrical Connection: Integrated IDC terminals for 2-core PB FC installation cables, 9-pin sub D connector for network components or terminal equipment
Terminating Resistor: Integrated and connectable via slide switch
Enclosure Material: Plastic
Locking Mechanism: Screwed joint
Cable Outlet: 90-degree angle
Dimensions: 15.8 mm x 59 mm x 35.6 mm (W x H x D)
Net Weight: 36 g
Ambient Temperature:
During Operation: -25 °C to +60 °C
During Storage: -40 °C to +70 °C
During Transport: -40 °C to +70 °C
Protection Class: IP20
Product Features: Silicon-free
Product Components: No PG connection socket, Strain relief
Standards and Approvals: RoHS conformity, UL approval
