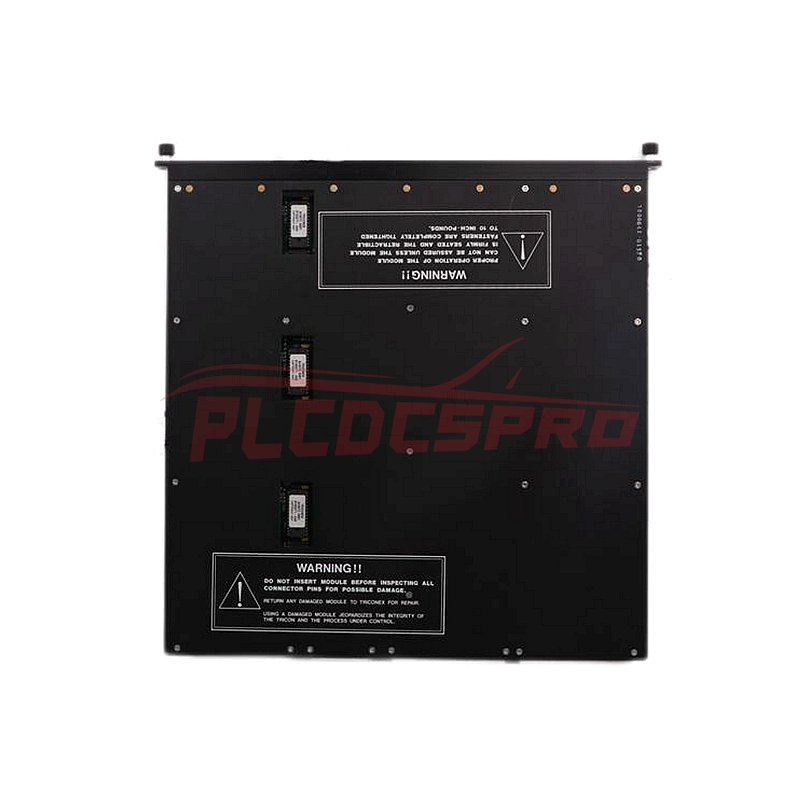

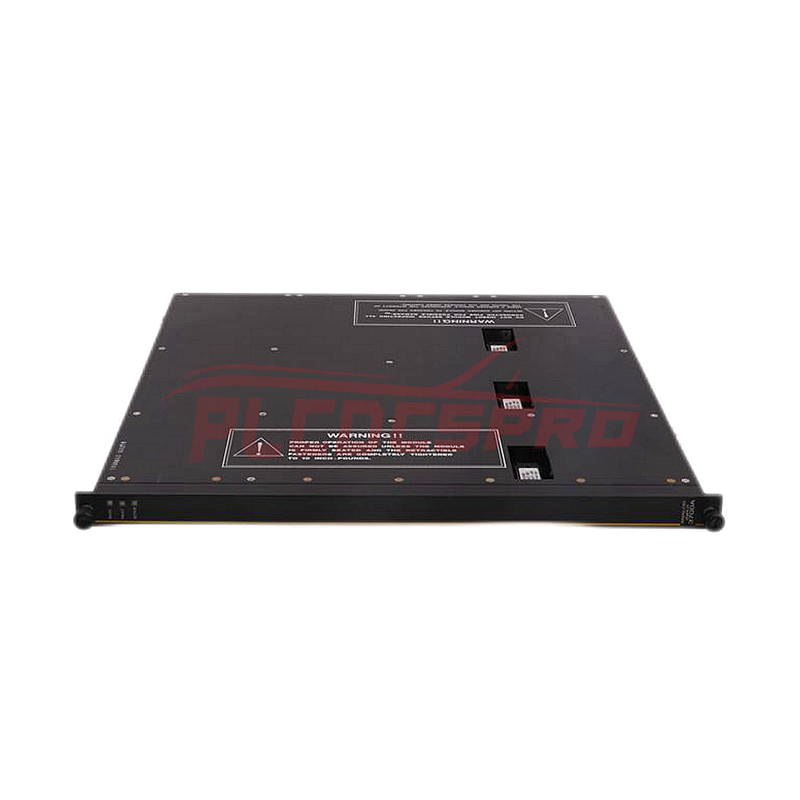

The Triconex 3700A Analog Input Module is a vital component of Triconex safety systems, offering precise monitoring and conversion of variable voltage signals into digital values. With three independent input channels, this module ensures accurate data transmission to the Main Processor modules, enhancing system reliability in demanding industrial environments.
Key Features:
Three independent input channels for precise signal monitoring and conversion
TMR (Triple Modular Redundancy) mode ensures data integrity and system reliability
Complete diagnostics for each channel, detecting and reporting faults without module failure
Hot-spare capability allows online replacement of faulty modules, minimizing downtime
Compatible with external termination panels (ETP) for seamless integration with Tricon backplane
Specifications:
Voltage Range: 0-5V (3700A), 0-10V (3701), 0-5V or 0-10V (3703E)
Type: TMR Analog Input
No. of Input Points: 32 (3700/3700A), 32 (3701), 16 (3703E)
Isolated Points: No (3700/3700A, 3701), Yes (3703E)
Input Update Rate: 55 ms (3700/3701), 50 ms (3703E)
Resolution: 12 bits
Accuracy: < .15% of FSR, from 0° to 60°C
Input Resistance (load): 30 MΩ (DC), min.
Power-Off Resistance: 30 KΩ (DC), typical
Common Mode Rejection: -80 dB (DC-100Hz), typical
Common Mode Range: -12V to +12V peak (3700/3701), +200V peak (3703E)
Color Code: Yellow (3700/3701), Light yellow (3703E), Mustard yellow (3703E)
The Triconex 3700A Analog Input Module ensures reliable signal monitoring and conversion, contributing to the safety and efficiency of industrial processes. With its robust design and comprehensive diagnostics, it offers peace of mind in critical applications.
