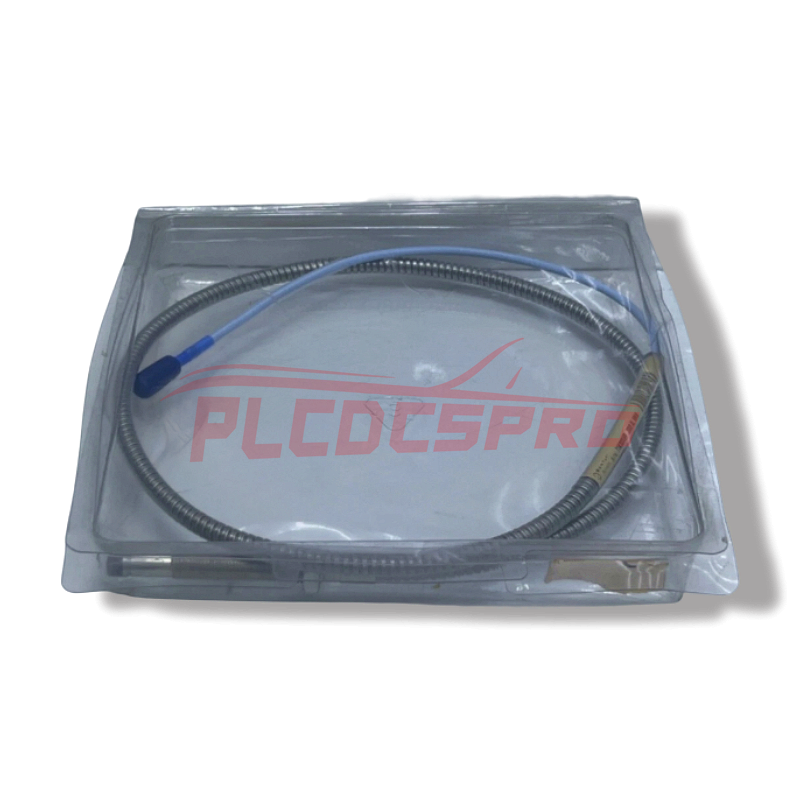

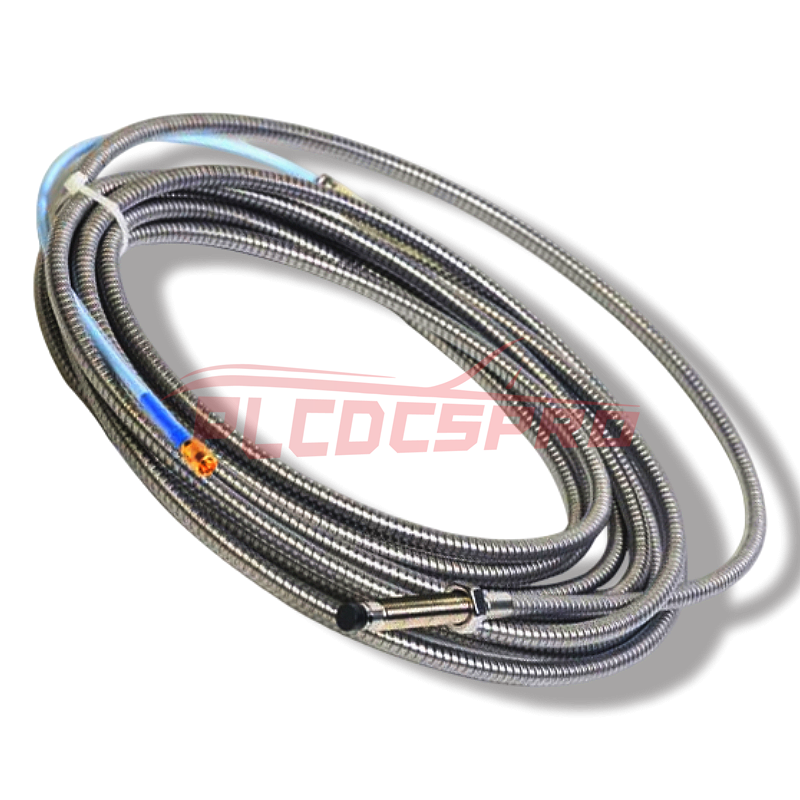

The Bently Nevada 330102-08-96-10-02-00 is a reverse mount proximity probe from the 3300 XL Proximity Transducer System. It provides non-contact measurement of shaft vibration, axial position, and Keyphasor® signals using eddy current technology. This probe is engineered for harsh industrial environments and complies with API 670 standards.
Configuration Breakdown
330102: Probe series: 3300 XL 8 mm with armor
08: Unthreaded length: 0.8 inch
96: Case length: 9.6 inches
10: Cable length: 1.0 meter (3.3 feet)
02: Connector: Miniature coaxial ClickLoc™
00: Agency approvals: Not required
Technical Specifications
Tip Diameter: 8 mm
Mounting Thread: 3/8-24 UNF (reverse mount)
Cable Type: Armored coaxial
Connector Type: Miniature ClickLoc™ with locking sleeve
Operating Temperature: –51°C to +177°C (–60°F to +351°F)
Measurement Range: 0.25 mm to 2.3 mm (10 to 90 mils)
Sensitivity: 200 mV/mil ±5%
Output Voltage: –1 to –24 VDC
Material: AISI 303/304 stainless steel body, PPS tip
Environmental Rating: IP67, sealed with Viton® O-ring
Weight: 0.323 kg
Country of Origin: USA
Installation Notes
Must be paired with a 3300 XL extension cable and Proximitor® sensor
Reverse mount requires access from behind the mounting surface
Set initial gap to achieve –9 VDC output for calibration
Maintain minimum bend radius for armored cable
Use connector protectors for enhanced sealing in harsh environments
