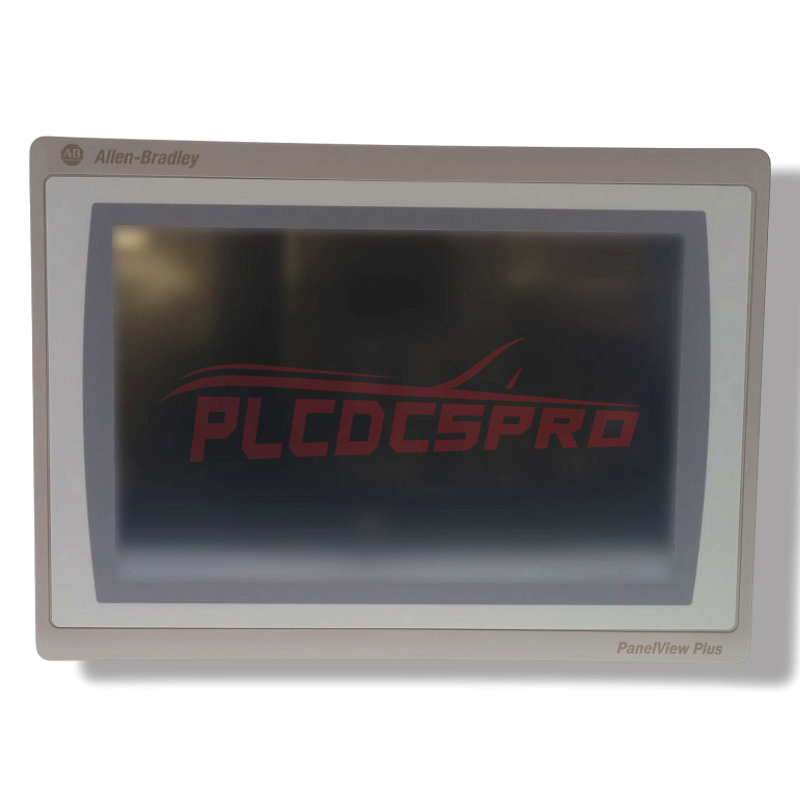

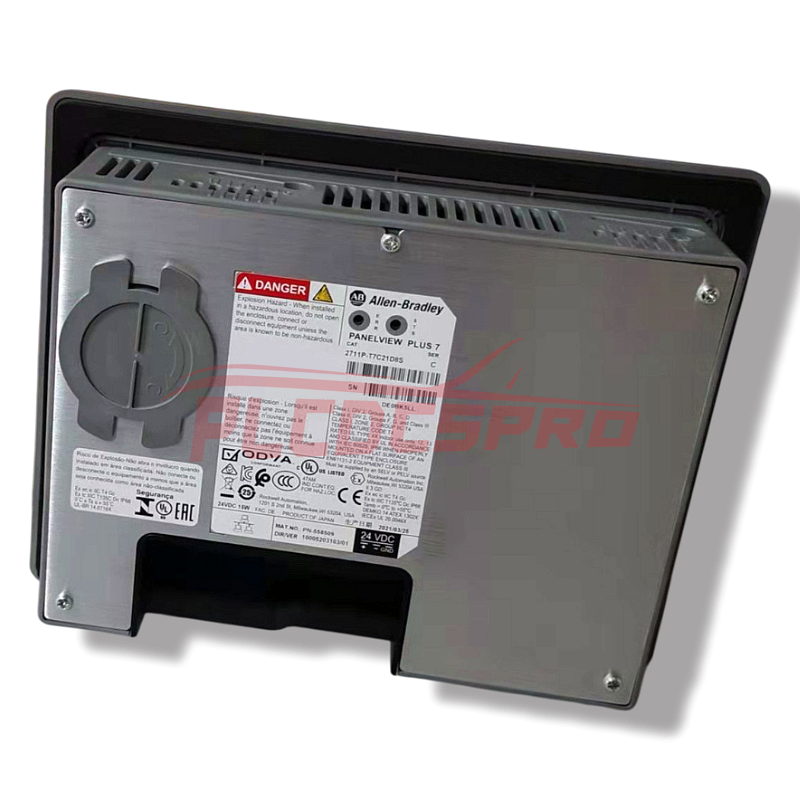

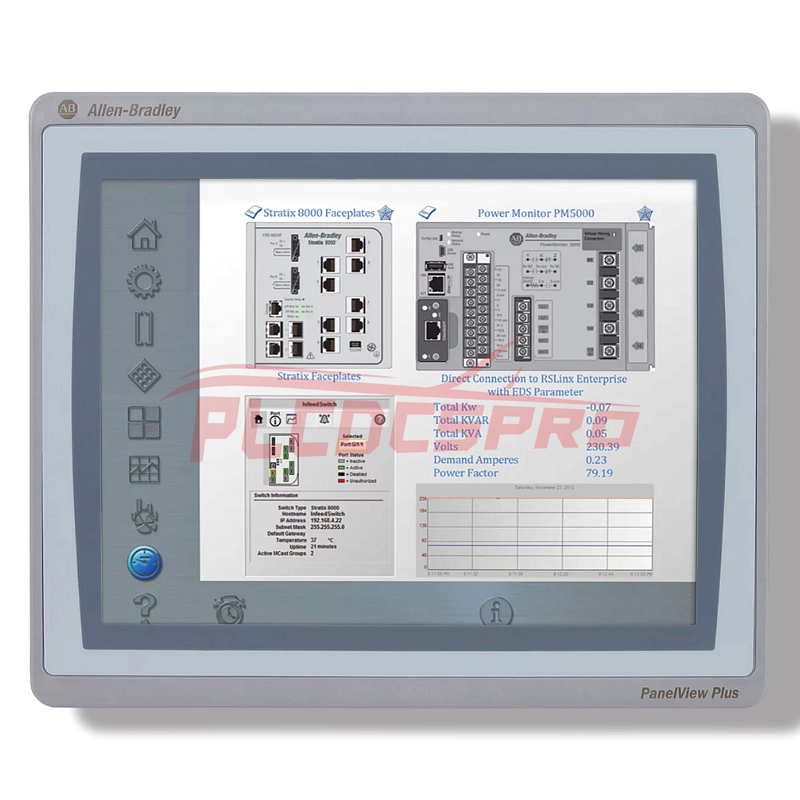

2711P-T12W21D8S | Allen Bradley | PanelView Plus 7 Color Touch 12"
No reviews
Sku:2711P-T12W21D8S
Country Of Origin: USA
Vendor: Allen Bradley
Type: HMI
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The 2711P-T12W21D8S is a 12.1-inch widescreen color HMI terminal from the PanelView Plus 7 Standard series. Designed for advanced machine-level visualization, it features a touchscreen-only interface, modern connectivity, and high-resolution display clarity. Ideal for applications requiring real-time interface with industrial controllers.
Technical Specifications
Catalog Number: 2711P-T12W21D8S
Series: PanelView Plus 7 Standard
Display Size: 12.1 inches (diagonal)
Display Type: Color TFT LCD
Resolution: 1280 × 800 pixels (WXGA)
Aspect Ratio: 5:3
Color Depth: 18-bit graphics
Touchscreen Type: Analog resistive
Backlight Type: LED (non-replaceable)
Backlight Life: ≥50,000 hours @ 25°C
Processor: Cortex-A8 1 GHz
RAM: 512 MB
Flash Memory: 512 MB
Operating System: Windows CE 6.0
Input Voltage Range: 18–30 VDC (nominal 24 VDC)
Power Consumption: 30 W (102 BTU/hr)
Communication Ports:
1 × Ethernet (10/100 Mbps, DLR support)
2 × USB Host (Type A)
1 × USB Device (Type B)
SD Card Slot: 1 × Secure Digital (1784-SDx series)
Real-Time Clock: Battery-backed (CR2032)
Battery Life: ≥4 years @ 25°C
Weight: 2.5 kg
Dimensions: 260 × 340 × 56 mm
Panel Cutout: 249 × 328 mm
Operating Temperature: 0°C to +55°C
Storage Temperature: –25°C to +70°C
Humidity: 5–95% RH non-condensing
Shock Rating: 15 g @ 11 ms
Vibration Rating: 2 g peak @ 57–500 Hz
Enclosure Rating: NEMA Type 12, 13, 4X (indoor); IP66
