2711P-K10C4A8 | Allen-Bradley PanelView Plus 6 Operator Terminal
No reviews
Sku:2711P-K10C4A8
Country Of Origin: USA
Vendor: Allen Bradley
Type: HMI
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

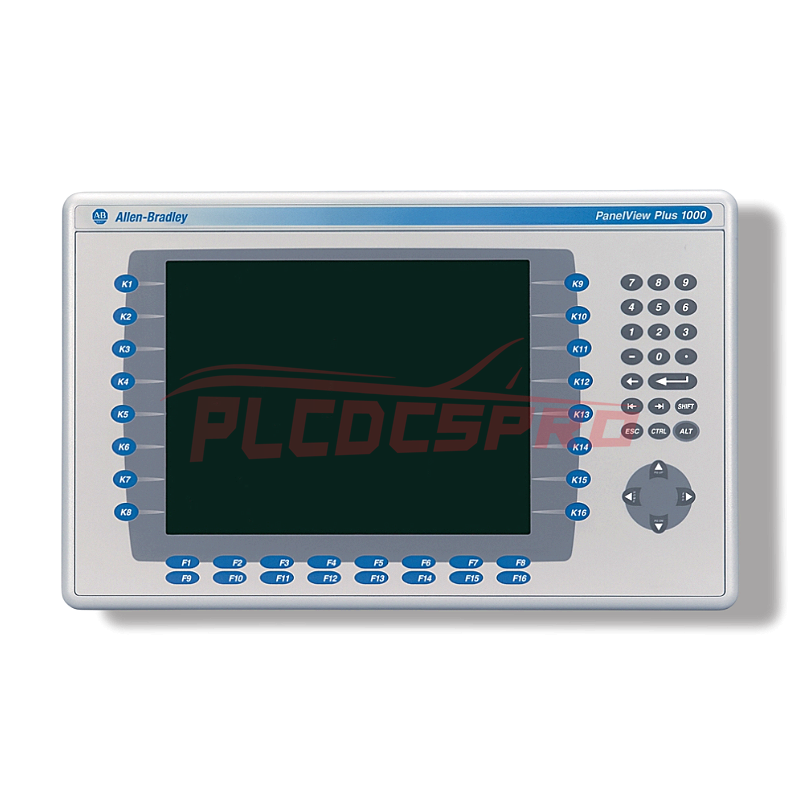

The Allen-Bradley 2711P-K10C4A8 is a PanelView Plus 6 operator terminal designed for industrial automation applications. This keypad-operated model features a 10.4-inch color display and supports FactoryTalk View Machine Edition (ME) applications. It is powered by AC input and offers reliable visualization and control for a wide range of processes.
Product Specifications
General
Manufacturer: Allen-Bradley
Category: PanelView Plus Terminals
Product Line: PanelView Plus 6
Part Number: 2711P-K10C4A8
Series: Series A and Series B
Weight: 5.69 lbs (2.58 kg)
Display
Type: TFT active-matrix LCD
Size: 10.4 inches
Resolution: 640 × 480 pixels (VGA)
Color Depth: 18-bit graphics
Backlight: Field-replaceable (2711P-RL10C2)
Input Interface
Keypad: Stainless-steel membrane with numeric, navigation, and function keys
Touchscreen: Not available (keypad-only version)
Memory
RAM: 512 MB
Flash: 512 MB nonvolatile (approx. 79 MB user memory)
Power Supply
Input Voltage: 100–240 VAC
Frequency: 50/60 Hz
Power Consumption: 160 VA max
Communication Ports
Ethernet (10/100 Mbps, Auto-MDI/MDI-X)
RS-232
(2) USB Host Ports
Expansion option for DH+, DH-485, or ControlNet modules
Compatible Communication Cable: 2711-NC14
Environmental Ratings
Operating Temperature: 0 to 55 °C (32 to 131 °F)
Storage Temperature: –25 to 70 °C (–13 to 158 °F)
Humidity: 5–95% RH, non-condensing
Shock: 15 g / 11 ms
Vibration: 2 g @ 500 Hz
Enclosure Rating: IP65 (front), NEMA Type 12, 13, 4X (indoor)
Dimensions
Panel Cutout: 267 × 211 mm (10.5 × 8.3 in.)
Depth: 55 mm (2.2 in.)
Weight: 5.69 lbs (2.58 kg)
Installation Notes
Mount in a sealed enclosure with appropriate IP/NEMA rating
Use shielded cables for Ethernet and serial connections
