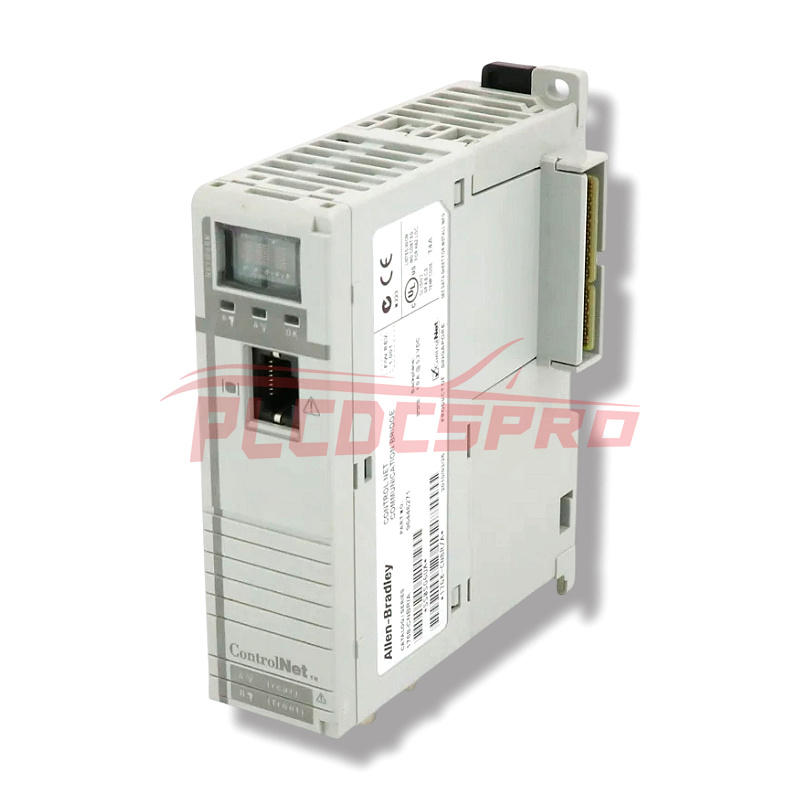

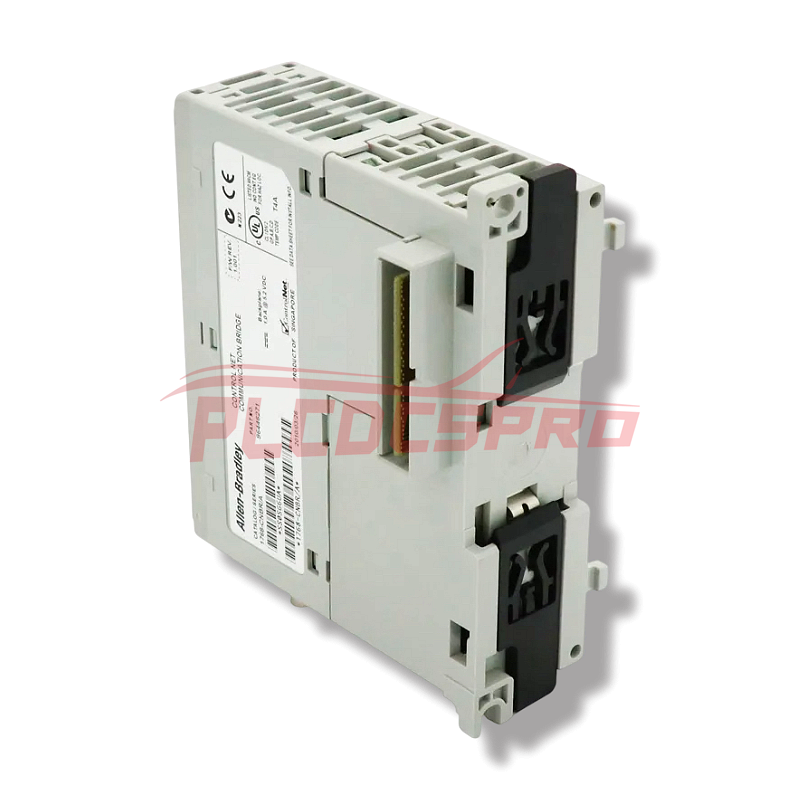

1768-CNBR | Allen Bradley | Redundant Bridge Module
No reviews
Sku:1768-CNBR
Country Of Origin: USA
Vendor: Allen Bradley
Type: Bridge Module
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview
The Allen-Bradley 1768-CNBR is a CompactLogix ControlNet bridge module that enables CompactLogix controllers to communicate over the ControlNet network. It supports high-speed, deterministic data transfer and serves as a bridge between the local CompactLogix backplane and remote ControlNet devices or I/O modules.
Technical Specifications
Part Number: 1768-CNBR
Module Type: ControlNet Bridge Module
Series: CompactLogix 1768
Communication Interface: ControlNet
Ports: 2 × BNC ControlNet ports (redundant media support)
Backplane Interface: 1768 CompactLogix backplane
Max Number of Nodes: 99 ControlNet nodes
Max Produced/Consumed Tags: 128 connections
Power Supply: 1768 system power supply via backplane
Backplane Current Load: 1.1 A @ 24 V DC
Mounting: DIN rail or panel mount (within CompactLogix chassis)
Operating Temperature: 0°C to +60°C
Storage Temperature: –40°C to +85°C
Relative Humidity: 5–95% non-condensing
Shock: 30 g operational, 50 g non-operational
Vibration: 5 g, 10–500 Hz
Dimensions: 87 mm × 90 mm × 118 mm (H × W × D)
Weight: 0.5 kg
Certifications: UL, CSA, CE, C-Tick, ATEX
Country of Origin: USA
Features
Provides ControlNet network interface for CompactLogix controllers
Supports redundant media ControlNet communication
Allows communication with up to 99 ControlNet devices
Enables distributed control and real-time data sharing
Backplane-powered and integrates seamlessly with 1768 system
LED indicators for network and module status
Compatible with RSLogix 5000 and Studio 5000 software
