1738-OE4CM12 | Allen-Bradley | Analog Current Output Module
No reviews
Sku:1738-OE4CM12
Country Of Origin: USA
Vendor: Allen Bradley
Type: Current Output
In stock!
100% Original and Authentic
100% Brand New, Ready to ship
Support Refund, 7X24h Service
Share
Product description
Overview

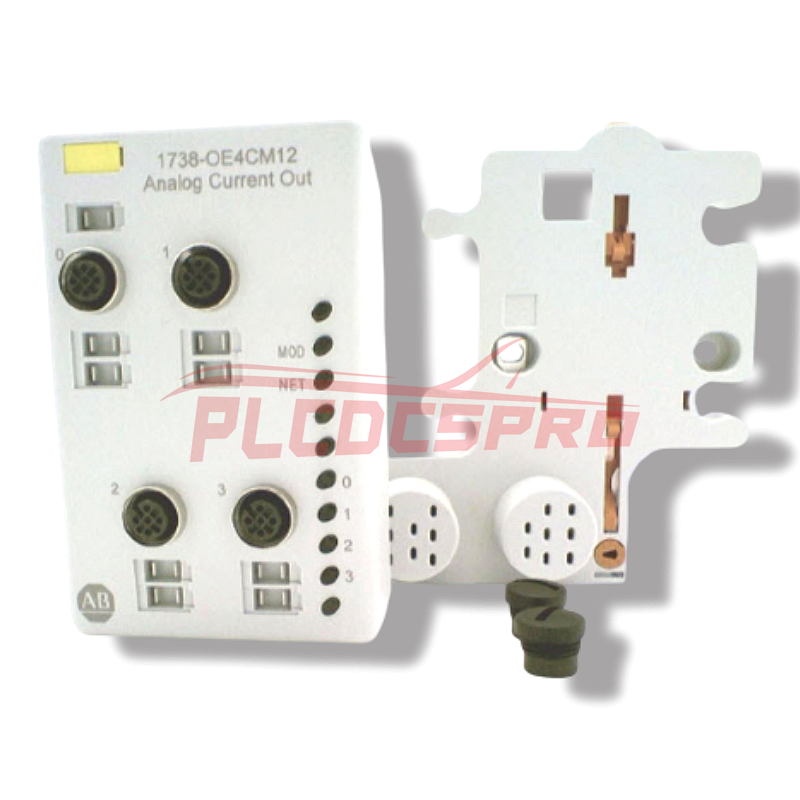

The 1738-OE4CM12 is a 4-channel analog current output module from the ArmorPoint I/O family by Rockwell Automation (Allen-Bradley). Designed for rugged environments, it features sealed M12 connectors and an IP67-rated enclosure for direct machine-level installation.
Technical Specifications
Catalog Number: 1738-OE4CM12
Manufacturer: Rockwell Automation (Allen-Bradley)
Module Type: Analog Output
Number of Channels: 4 (single-ended, non-isolated)
Output Signal Range: 0–20 mA and 4–20 mA
Resolution: 13 bits (0.16 µA/count)
Accuracy: ±0.1% full scale @ 25°C
Conversion Rate: 16 µs/channel
Output Impedance: < 1 Ω
Connector Type: 4 × M12 DC Micro (5-pin)
Power Supply: 24 V DC (via POINTBus)
POINTBus Current: 75 mA @ 5 V DC
Power Dissipation: 1.6 W max
Thermal Dissipation: 5.5 BTU/hr
Environmental Rating: IP65/66/67
Operating Temperature: –20°C to +60°C
Storage Temperature: –40°C to +85°C
Mounting: DIN rail or panel
Weight: 0.5 kg
Replacement Category: No planned RA replacement
Keyswitch Position: 4 (module identification)
Functional Highlights
4 high-resolution analog current outputs for industrial actuators and controls
Sealed IP67 housing for durable field-level installation
LED indicators for output status and diagnostics
Produces 2 bytes of input data (status) and consumes 8 bytes of output data
Compatible with Studio 5000 Add-On Profiles (AOP)
Supports autobaud and explicit messaging
Earth-grounded metal rings enhance EMI shielding
Optimized for high-speed analog control in distributed I/O networks
