Integrating Yokogawa CENTUM VP DCS with Triconex Safety PLC on FOUNDATION Fieldbus: A Commissioning Guide

Q: How Does the CENTUM VP and Triconex Dual-Host FF Architecture Work?

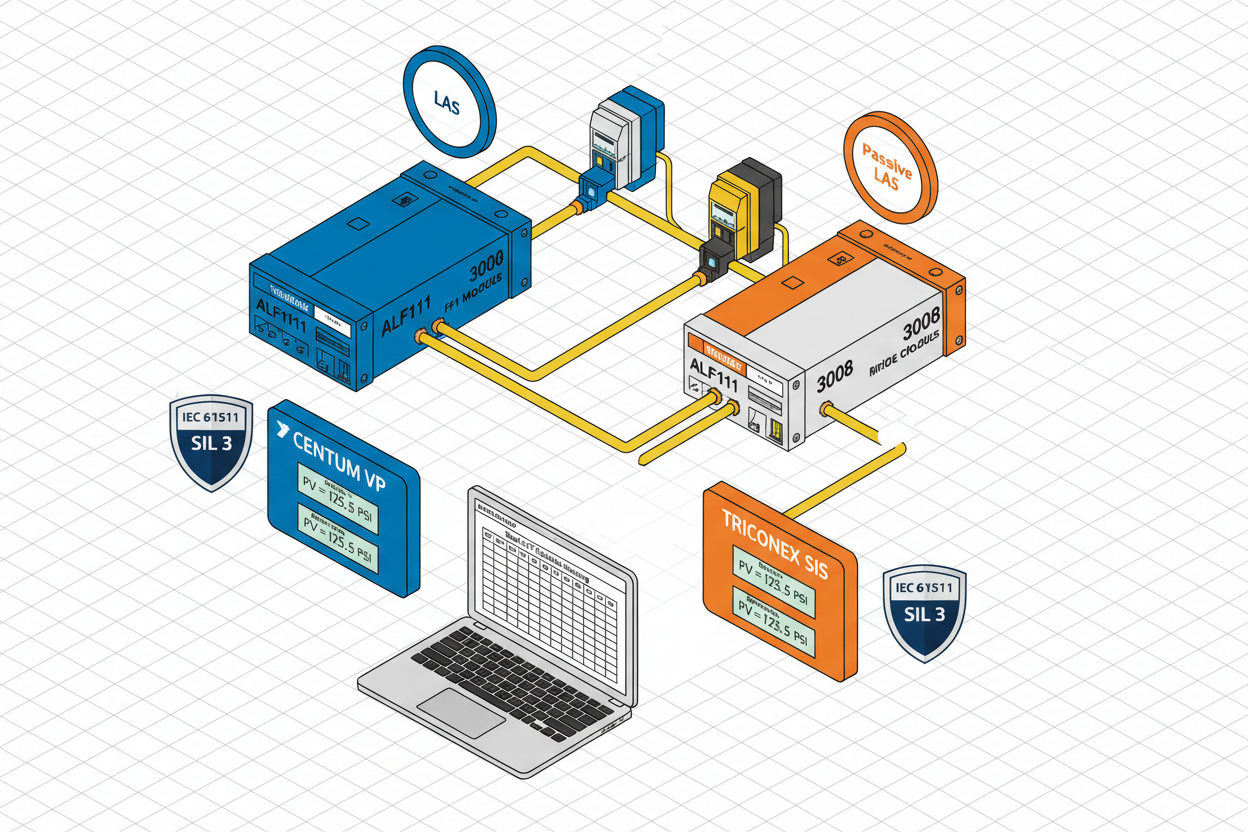

Modern process plants use Yokogawa CENTUM VP as the primary DCS (BPCS) and Triconex as the safety logic solver (SIS), with FOUNDATION Fieldbus connecting field instruments to both systems through shared H1 segments. The Yokogawa ALF111-S00 FF Communication Module installed in the CENTUM VP FCS provides the primary LAS (Link Active Scheduler) for each FF H1 segment. The Triconex 3008 FF interface module connects the safety controller to the same segment in Passive LAS mode, allowing both systems to read process data independently.

Each FF H1 segment supports up to 32 devices at 31.25 kbps. A typical segment carries four to eight transmitters, two to four valve positioners, and one to two diagnostic devices. The Triconex system operates under IEC 61511 standards — shared FF segments between CENTUM VP and Triconex require careful design to maintain SIS independence from the BPCS.

Q: How Do I Configure FF Segments on Yokogawa CENTUM VP?

• Step 1: Install the ALF111 module in the FCS node. Confirm the module hardware revision matches the CENTUM VP software version. Verify the module status LED shows solid green.
• Step 2: Open CENTUM VP System View and navigate to the I/O module configuration. Add an FF H1 bus object and assign it to the ALF111 port.
• Step 3: Configure the FF segment parameters: segment name, schedule macro cycle (typically 500 ms), and LAS priority.
• Step 4: Register each FF device using DD files. Download DD files from the vendor’s website for non-Yokogawa devices.
• Step 5: Assign function blocks to each device (AI, AO, PID, CHAR). Configure the AI block to read the process variable from the FF transmitter.
• Step 6: Set the macro cycle time for each function block. Process control AI blocks run at 500 ms. Coordinate faster scan rates for safety-critical signals with the SIS engineering team.

Q: How Do I Configure the Triconex 3008 FF Interface Module?

• Step 1: Install the 3008 module in the Triconex main chassis. The module occupies one slot and requires a dedicated backplane connection.
• Step 2: Configure the FF H1 port in TriStation 1131. Assign the segment address and set the module to FF Bridge mode (Passive LAS).
• Step 3: Import the FF device DD files into TriStation. Without DD files, the 3008 cannot interpret device-specific parameters.
• Step 4: Map FF function block outputs to Triconex variables. Map the OUT parameter of FF AI blocks to Triconex analog input variables used in safety functions.
• Step 5: Configure communication diagnostics. Use the 3008 device status bits in your safety logic to detect field device communication failures.

The Triconex must not control field devices through FF — the safety system should only monitor process variables and drive final elements through hardwired safety outputs. The 3008 configuration must be read-only for field device outputs.

Q: How Do I Commission Honeywell FF Transmitters on Shared Segments?

• Step 1: Download Honeywell ST 800 / STG 700 SmartLine FF DD files from the Honeywell Process Solutions website.
• Step 2: Register the DD files in both CENTUM VP Engineering and TriStation 1131. Both systems must use the same DD revision to avoid data interpretation conflicts.
• Step 3: Configure the transmitter’s FF function blocks. Set the AI block OUT_SCALE parameter to match the process range and XD_SCALE to the sensor’s native engineering units.
• Step 4: Enable NAMUR NE 107 diagnostic alerts. Configure the device to report Failure (F) and Check (C) alerts through the FF diagnostics block.
• Step 5: Verify the transmitter appears on both CENTUM VP and Triconex faceplates simultaneously. Cross-check the process variable reading — values must match within the device’s stated accuracy.

Q: How Do I Perform Pre-Trip Testing for IEC 61511 Compliance?

• Step 1: Perform a full I/O checkout. Verify every FF device reads correctly on both DCS and SIS faceplates. Record values in the commissioning database.
• Step 2: Inject simulated process signals using the FF simulator function on the Yokogawa ALF111 card to inject values into the AI function block.
• Step 3: Trip test each safety function. Drive the process variable past the trip setpoint and verify the Triconex activates the correct shutdown output within the required response time.
• Step 4: Record the trip response time: sensor detection time (FF AI block execution) + logic solver processing time + final element actuation time.
• Step 5: Restore the process variable to normal range. Verify the safety system resets correctly and the DCS resumes normal control.

What Is the Key Action Advice?

Always assign one LAS (Yokogawa ALF111) and set the Triconex 3008 to Passive LAS mode — LAS conflicts interrupt all communication on the segment. Download matching DD revisions to both systems before commissioning. Use the Triconex in read-only mode on shared segments to maintain IEC 61511 SIS independence. Perform comprehensive pre-trip testing with witnessed test records to satisfy IEC 61511 safety case requirements. Every test result must be witnessed by the plant operations team and filed in the safety case records for future SIL validation audits.

Author: Haibo Chen is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
