Q: What Does HART Enable in Bently Nevada 3500 Vibration Monitoring?

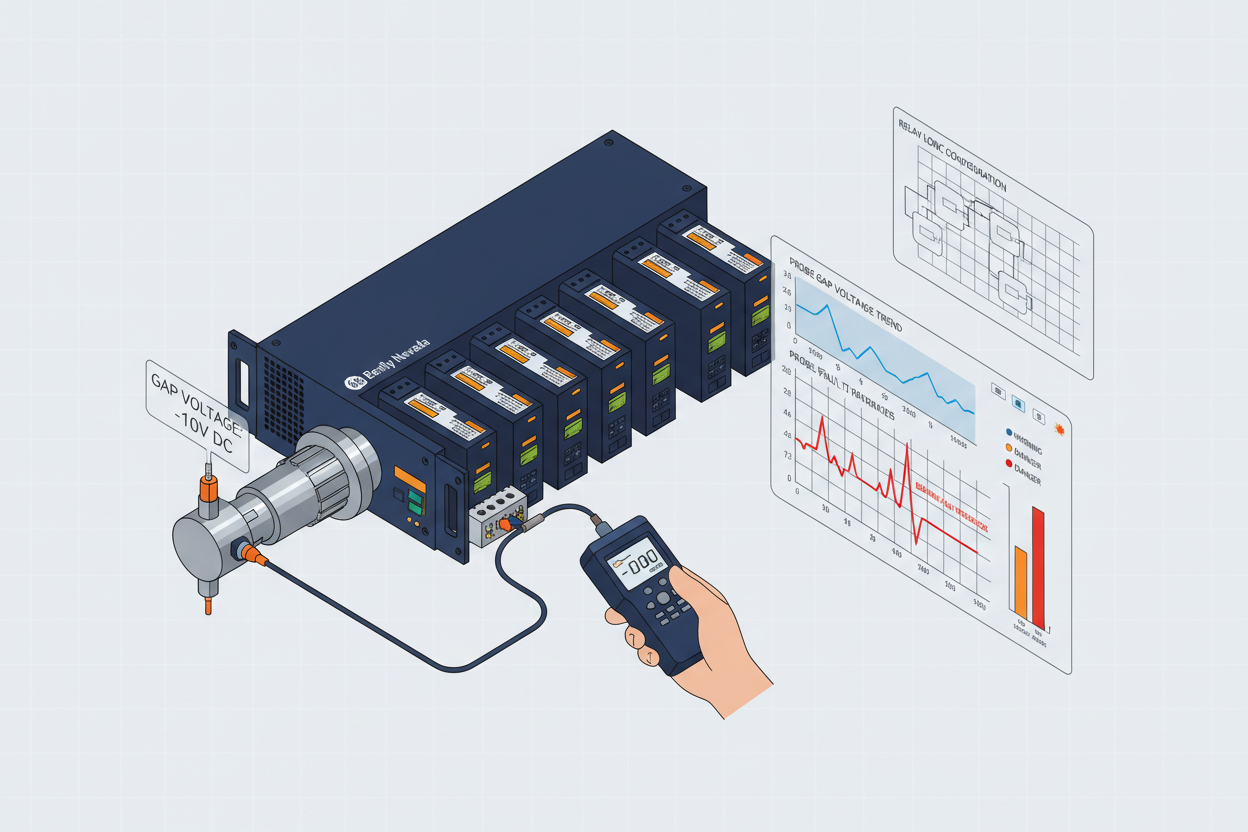

The GE Bently Nevada 3500 monitors rotating machinery vibration using proximity probes that detect shaft vibration and position. HART-enabled vibration transmitters provide digital diagnostics over the 4–20 mA loop, enabling remote device configuration and predictive maintenance integration from the control system. The GE Bently Nevada 3500/40 Proximitor Monitor Module and Bently Nevada 3500/40-02-01 Proximity Monitor are the core measurement modules in the 3500 rack system, providing the proximity measurement channels for shaft vibration and position monitoring.

Q: How Do I Install and Wire the Proximity Probe?

Step 1: Mount the proximity probe at the correct radial position near the shaft.
Step 2: Adjust the gap voltage to −10 V DC nominal (acceptable range: −9 V to −11 V DC).
Step 3: Connect the probe to the 3500 monitor input channel via the correct extension cable length — match cable length to monitor configuration.
Step 4: Wire the HART communicator across the loop resistor and verify HART communication with the handheld.

Check the probe linearity range — typical range is 80 mils (2 mm). Verify the probe calibration certificate and use the correct extension cable length matching the monitor configuration.

Q: How Do I Configure the 3500 Monitor Using HART?

Step 1: Connect the HART communicator to the transmitter loop.
Step 2: Configure the measurement type (vibration or position) and define the full-scale range for the application.
Step 3: Set alarm setpoints for warning and danger levels. Set the time delay for alarm activation to prevent nuisance trips.
Step 4: Configure relay outputs for protection. Map alarm conditions to relay logic. Set the relay AND/OR voting logic and configure relay time delays. Test relay operation with simulated inputs.

Q: How Do I Analyze Vibration Data for Predictive Maintenance?

HART transmitters provide diagnostic data for predictive maintenance. Monitor the probe gap voltage trend — DC voltage drift indicates probe looseness or shaft position change. Track overall vibration trend over time and document baseline spectra during commissioning.

Spectrum analysis requires expertise: identify bearing fault frequencies from bearing geometry, monitor for shaft imbalance at running speed (1X), and check for misalignment at twice running speed (2X). Compare current spectra against commissioning baselines to detect developing faults early.

Q: How Do I Troubleshoot HART Communication on the 3500?

Step 1: Measure loop current at the monitor terminals — verify it is within 4–20 mA range.
Step 2: Verify HART signal with the communicator. Confirm the device address is zero (default).
Step 3: Check loop resistance (250 ohms minimum) and power supply voltage. Verify proper shield grounding.
Step 4: Test with a different HART modem if communication still fails after verifying loop parameters.

What Is the Key Action Advice?

Install proximity probes with correct gap voltage — this is the single most critical commissioning step. Configure monitors with appropriate alarm setpoints based on machinery manufacturer recommendations. Capture vibration baseline spectra during initial commissioning and store them for future comparison. Use HART diagnostics for predictive maintenance and analyze vibration trends regularly. Train maintenance staff on vibration analysis techniques. For critical machinery, consider continuous online monitoring with the Bently Nevada System 1 software for advanced spectrum analysis and fault detection.
